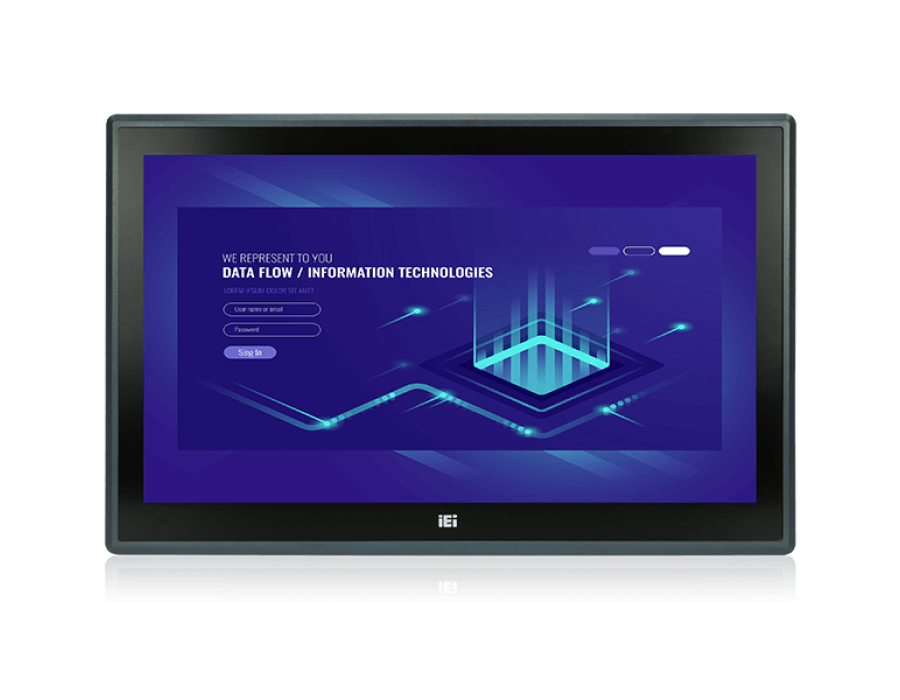

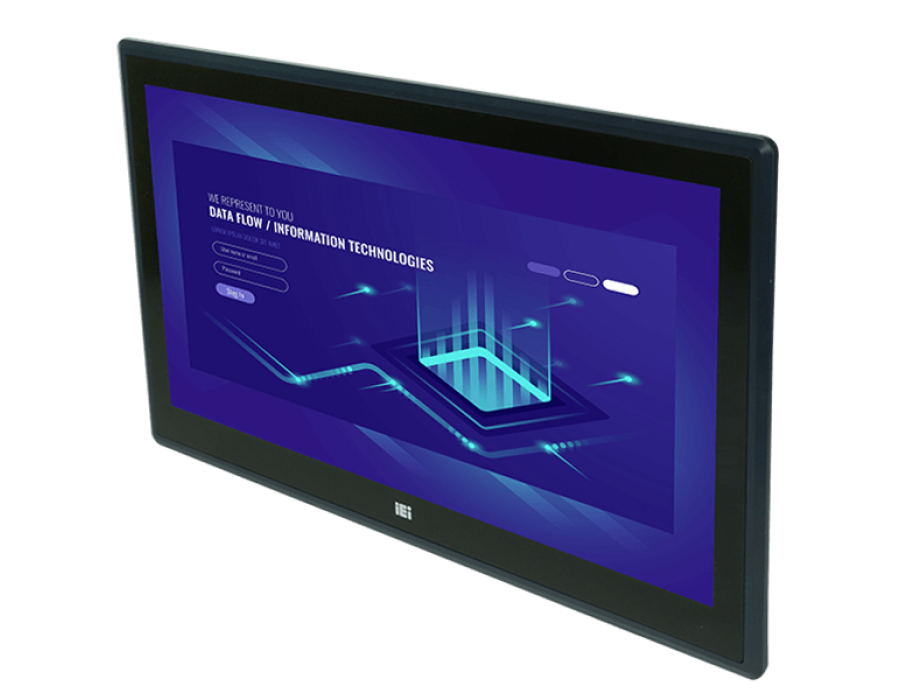

FLEX-PLKIT-FW22/PC-R10 - IEI 21.5" 1920 x 1080 250cd/m² FLEX modular PCAP touch window/LCD kit,R10
| LCD Size | 21.5” (16:9) |
| Max Resolution | 1920(W) x 1080(H) |
| Brightness (cd/㎡) | 250 |
| Contrast Ratio | 1000 : 1 |
| Display Color | 16.7M |
| Pixel Pitch (mm) | 0.25 x 0.25 |
| View Angle (H/V) | 170° / 160° |
| Backlight MTBF(Hrs) | 30000 |
| Touchscreen & Controller | projected capacitive type with 10-point multitouch and anti-glare coating, EETI EXC3000 |
| Video interface | LVDS |
|
Dimensions (mm) (WxHxD) |
550.4 x 358.4 x 29.8 |
| Cutout Dimensions (mm) | 340 x 532 |
| Color | Cyan-blue (PSM 296C) |
| Front frame | Aluminum |
| Rear Cover | Sheet Metal |
| Mounting | Panel mount |
| Operating Temp. | -10°C ~ 50°C (with air flow) |
| Storage Temp. | -20°C ~ 60°C |
| Humidity | 10% ~ 95% (non-condensing) |
| Other | Support FLEX-BX200-Q370 only |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
