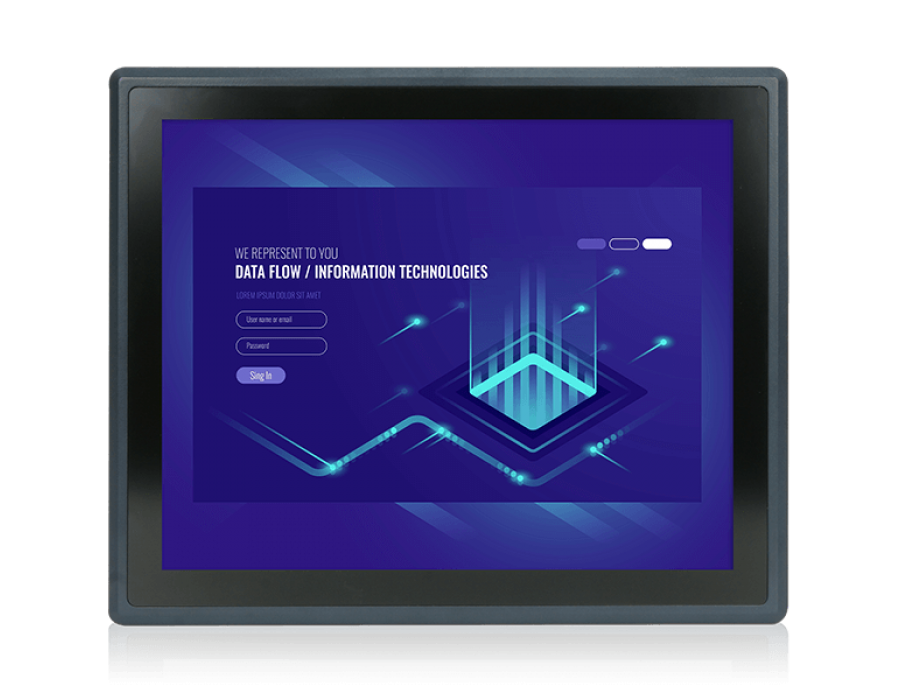

FLEX-PLKIT-F17/PC-R10 - IEI 15" 1024 x768 450cd/m² FLEX modular PCAP touch window/LCD kit,R10
| LCD Size | 15" (4:3) |
| Max Resolution | 1280(W) x 1024(H) |
| Brightness (cd/㎡) | 350 |
| Contrast Ratio | 1000 : 1 |
| Display Color | 16.7M |
| Pixel Pitch (mm) | 0.26 x 0.26 |
| View Angle (H/V) | 170° / 160° |
| Backlight MTBF(Hrs) | 50000 |
| Touchscreen & Controller | projected capacitive type with 10-point multitouch and anti-glare coating, EETI EXC3000 |
| Video interface | LVDS |
|
Dimensions (mm) (WxHxD) |
408.4 x 341.4 x 31 |
| Cutout Dimensions (mm) | 324 x 391 |
| Color | Cyan-blue (PSM 296C) |
| Front frame | Aluminum |
| Rear Cover | Sheet Metal |
| Mounting | Panel mount, Rack mount |
| Operating Temp. | -10°C ~ 60°C (with air flow) |
| Storage Temp. | -20°C ~ 70°C |
| Humidity | 10% ~ 95% (non-condensing) |
| Other | Support FLEX-BX200-Q370 only |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
