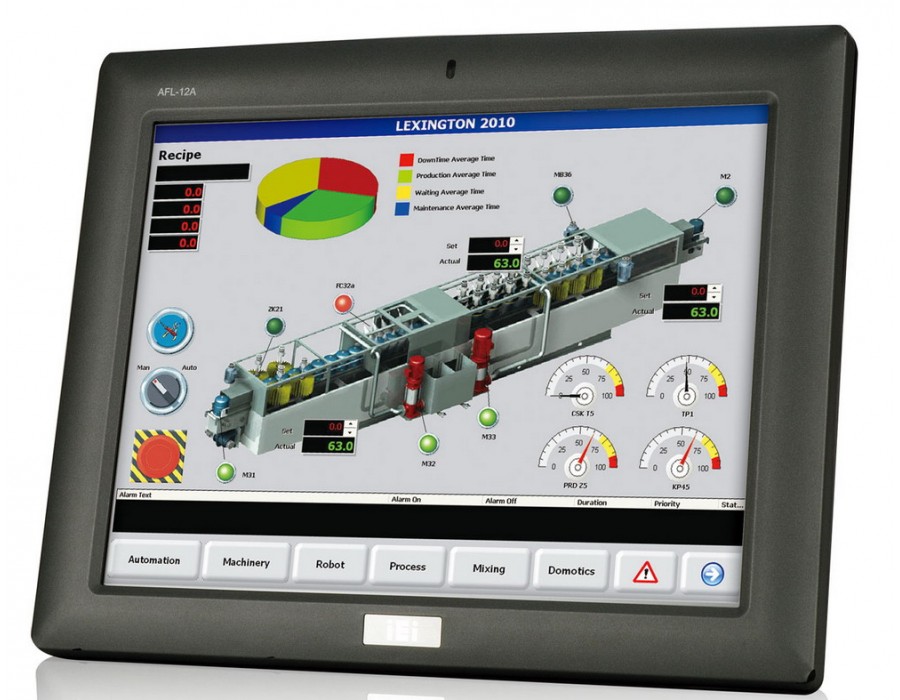

AFL-12A-N270/R/1G-R24 - IEI 12.1" Fanless XGA Touch All In One Panel PC with Intel® Atom™ Processor N270 1.6GHz Processor
AFL-12A-N270/R/1G-R24 - IEI 12.1" 500 cd/m² XGA fanless panel PC with Intel® Atom™ N270 1.6GHz,802.11b/g/n,touch screen,1GB DDR2 533
| LCD Size | 12.1" |
| Max Resolution | 1024 x 768 |
| Brightness (cd/㎡) | 500 |
| Contrast Ratio | 700 : 1 |
| LCD Color | 262K |
| Pixel Pitch (mm) | 0.240(H) x 0.240(V) |
| Viewing Angle (H-V) | 160° / 160° |
| Backlight MTBF | 50000 (LED Backlight) |
| SBC Model | AFLMB-945GSE-N270-R10 |
| CPU | Intel® Atom™ processor N270 1.6GHz CPU |
| Chipset | Intel® 945GSE + ICH7M |
| RAM | Supports one 400MHz or 533MHz DDR2 SO-DIMM (Max. 2GB) |

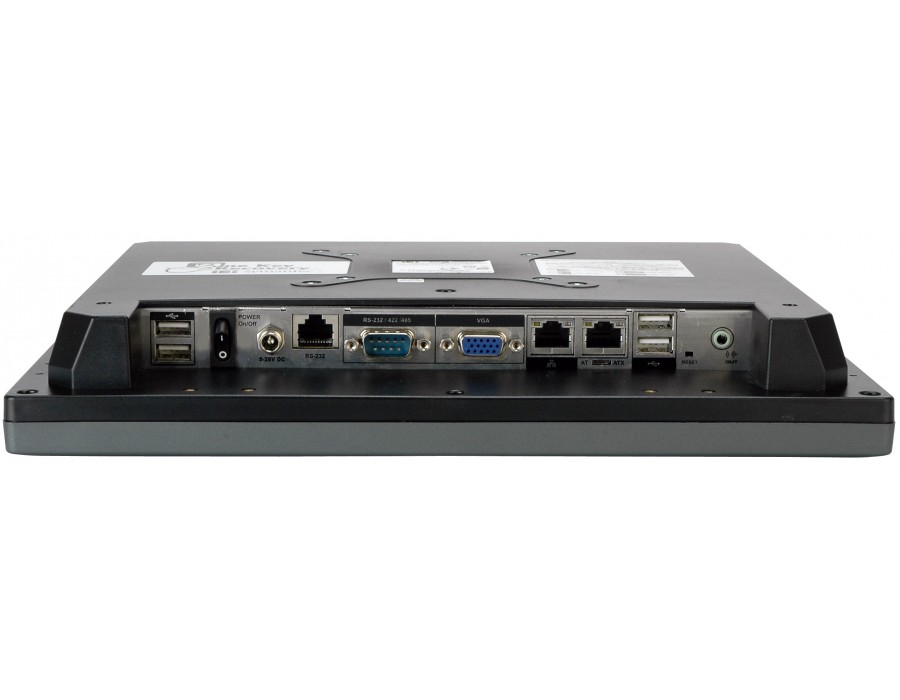

| I/O Ports and Switches | 1 x RS-232 COM Port 1 x RS-232/422/485 COM Port 2 x RJ-45 for Giga LAN 4 x USB 2.0 1 x Power Switch 1 x Reset Button 1 x External SATA 1 x Audio Port 1 x Power Jack |
| SSD | CF Type II |
| Watchdog Timer | Software programmable supports 1~255 sec. System reset |
| Audio | AMP 1.5W + 1.5W (internal speaker) |
| Wireless | 1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini card interface) |
| Touch Screen | 5-wire resistive type (touch controller IC is on board) |
| Drive Bay | 1 x 2.5” SATA HDD bay |
| Construction Material | ABS + PC Plastic front frame |
| Mounting | Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm |
| LED Function | 1 x Power on/off LED on front panel |
| Front Panel Color | Gray 7539U |

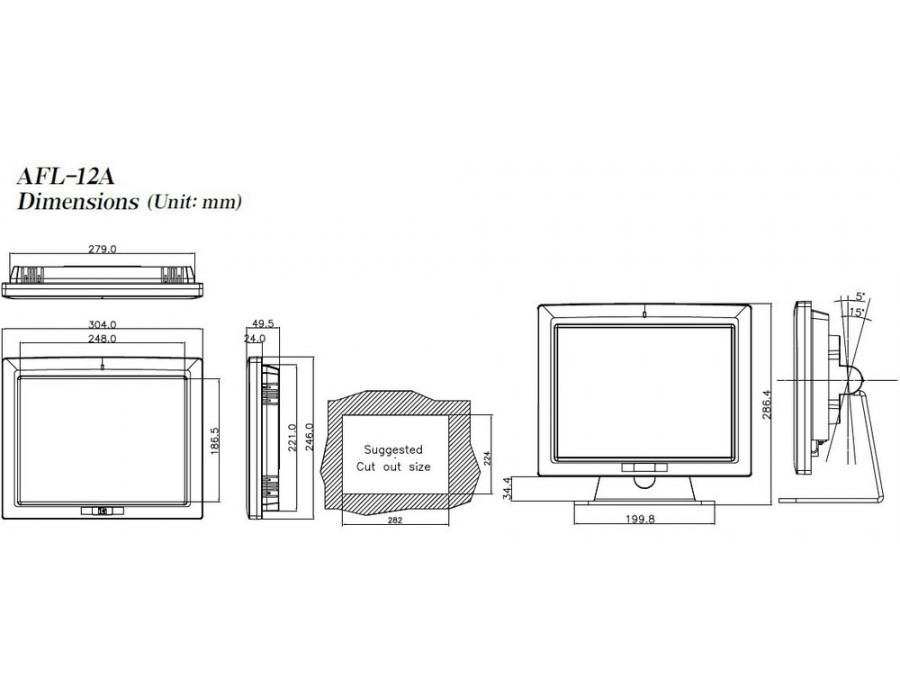

| Dimension (WxHxD) (mm) | 304 x 246 x 50 |
| Operating Temperature (°C) (Ambient with air flow) | 0°C ~40°C with SATA HDD, -10°C ~50°C with CF Card or SATA interface 2.5” SSD HDD |
| Storage Temperature (℃) | -20°C~60°C |
| Weight | 1.8 Kg |
| IP Level(front panel) | IP 64 compliant front panel |
| Safety | CE / FCC |
| Power Adapter | P/N: 63040-010060-130-RS 60W Power Adapter (Meet PSE) Input: 90VAC~264VAC, 50/60Hz Output: 12VDC |
| Power Requirement | 12VDC |
| Power Consumption | 32W |
