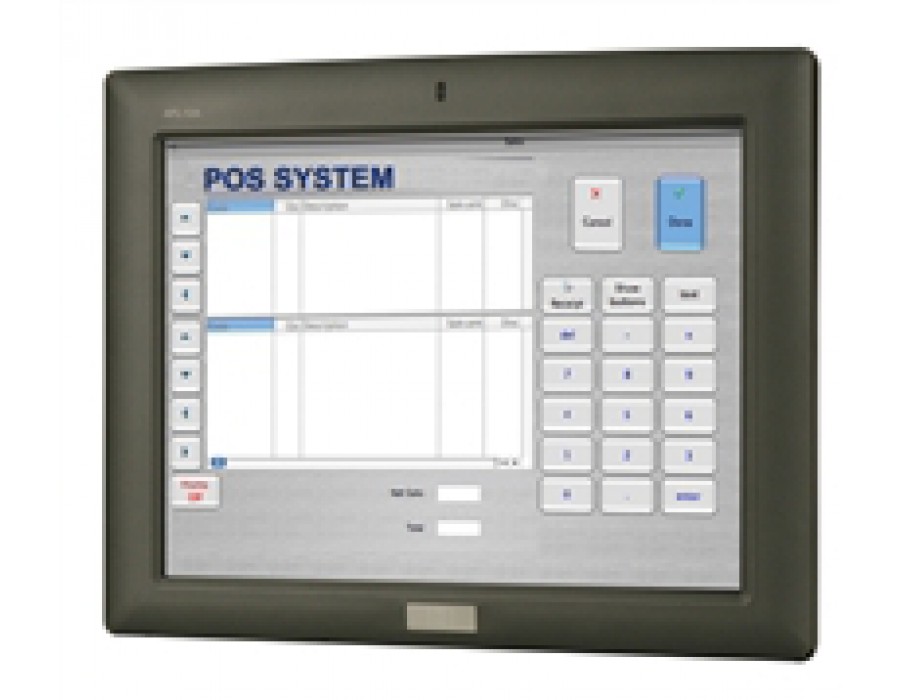

12.1" Fanless XGA Touch Panel PC with Intel® Atom™ Processor N270 1.6GHz Processor
12.1" 500 cd/m² XGA fanless panel PC with Intel® Atom™ N270 1.6GHz,802.11b/g/n,touch screen,1GB DDR2 533
● 12.1" TFT LED backlight LCD with resistive touch screen
● Fanless cooling system
● Selectable AT/ATX power mode through the switch inside the chassis
● One CompactFlash® slot
● IP 64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Suggest over 4GB storage capacity)
| LCD Size | 12.1" |
| Max Resolution | 1024 * 768 |
| Brightness (cd/㎡) | 500 |
| Contrast Ratio | 700 : 1 |
| LCD Color | 262K |
| Pixel Pitch (mm) | 0.240(H) x 0.240(V) |
| Viewing Angle (H-V) | 160° / 160° |
| Backlight MTBF | 50000 hrs |
| SBC Model | AFLMB-945GSE-N270-R10 |
| CPU | Intel® Atom™ process N270 1.6GHz CPU |
| Chipset | Intel® 945GSE + ICH7M |
| RAM | Supports one 400MHz or 533MHz DDRII SODIMM (2GB Max.) |
| I/O Ports and Switches | 1 x RS-232 COM Port 1 x RS-232/422/485 COM Port 2 x RJ-45 for Giga LAN 4 x USB 2.0 1 x Power Switch 1 x Reset Button 1 x External SATA 1 x Audio Port 1 x Power Jack |
| SSD | CF Type II |
| Watchdog Timer | Software programmable supports 1~255 sec. System reset |
| Audio | AMP 1.5W + 1.5W (internal speaker) |
| Wireless | 1 x Wireless LAN 802.11 b/g/n Module (internal PCIe Mini card interface) |
| HDD Drive Bay | 1 x 2.5” SATA HDD bay or Option HSUPA Module |
| Touch Screen | 5-wire resistive type (touch controller IC is on board) or Capacitive type touch screen without HDD bay |
| Drive Bay | 1 x 2.5” SATA HDD bay |
| Construction Material | ABS + PC Plastic front frame |
| Mounting | Panel, Wall, Rack, Stand or Arm VESA 75mm x 75mm / 100mm x 100mm |
| LED Function | 1 x Power ON/OFF LED on front panel |
| Front Panel Color | Gray 7539U |
| Dimension (WxHxD) (mm) | 304 x 246 x 50 |
| Operating Temperature (°C) (Ambient with air flow) | 0°C ~40°C with SATA HDD, -10°C ~50°C with CF Card or SATA interface 2.5” SSD HDD |
| Storage Temperature (℃) | -20°C~60°C |
| Weight | 1.8 Kg |
| IP Level(front panel) | IP64 |
| Safety | CE / FCC |
| Power Adapter | P/N: 63000-FSP050DBAB1405-RS 50W Power Adapter Input: 90VAC~264VAC, 50/60Hz Output: 12VDC |
| Power Requirement | 12VDC |
| Power Consumption | 32W |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
