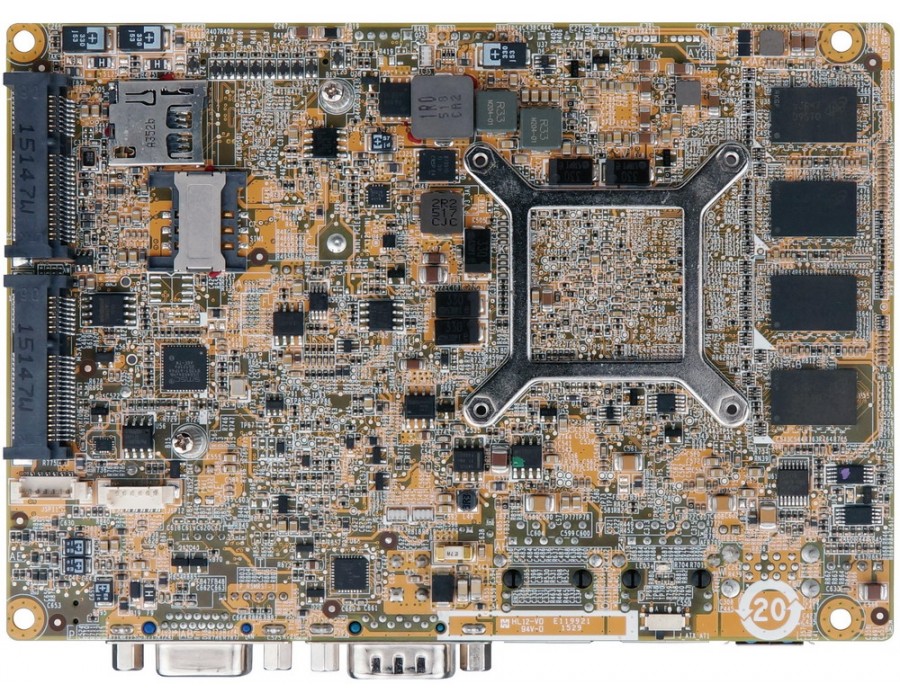

WAFER-BT-E38451W2-R11 - IEI 3.5” industrial motherboard with Intel® 22nm Atom™ quad-core E3845 1.91GHz (10W) on-board SoC supports -40°C ~ 85°C, 4 GB DDR3 memory on board, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS
● 3.5” SBC supports Intel® 22nm Atom™ on-board SoC
● Dual independent display support
● On-board 2 GB/4 GB 1066/1333 MHz DDR3L memory
● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support
● Supports -40°C ~ 85°C
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| CPU | Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W) |
| BIOS | UEFI BIOS |
| System Memory | 4 GB solder-down 1066/1333 MHz DDR3L memory (for E3845) |
| Ethernet | LAN1: Intel® I210-IT PCIe controller LAN2: Intel® I210-IT PCIe controller |
| I/O Interface | 1 x RS-232 1 x USB 2.0 1 x USB 3.0 |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin) |
| SMBus | 1 x SMBus (1x4 pin) |
| Audio | Realtek ALC662 HD Audio codec 1 x Analog audio (2x5 pin) |
| Expansion | 2 x PCIe Mini slot |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
| Power Supply | 12V only DC input 1 x Internal power connector (2x2 pin) Support AT/ATX mode |
| Power Consumption | 12V@1.32A (Intel® Atom™ processor E3845 with on-board 2 GB 1333 MHz DDR3L memory) |
| Graphic | Intel® HD Graphics Gen 7 Engine with 4 execution units, supporting DX11.1, OpenGL 4.2 and OpenCL1.2 |
| Storage | On-board SSD 4 GB colay SATA1 (optional) 1 x mSATA colay SATA2 1 x microSD socket |
| Operating Temperature | -40°C ~ 85°C |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 5% ~ 95%, non-condensing |
| Dimensions | 146mm x 102mm |
| Weight | 1000g/NW: 250g |
| Embedded Controller | IT8528E-I |
| Front Panel | 1 x Power LED & HDD LED (1x6 pin) 1 x Power button (1x2 pin) 1 x Reset button (1x2 pin) |
| I2C | 1 x I²C (1x4 pin) |
| Fan Connector | 1 x Smart fan connector (1x4 pin) |
| LAN LED | 2 x LAN LED (1x2 pin) |
