TANK-630-EHL-JC-R10

Kod proizvoda: TANK-630-EHL-JC-R10
Dostupnost: 4 nedelje

Please login to see prices

Količina: - ILI - Dodaj u listu želja
Dodaj za poređenje

Opis Slični proizvodi (4) Tehničke karakteristike

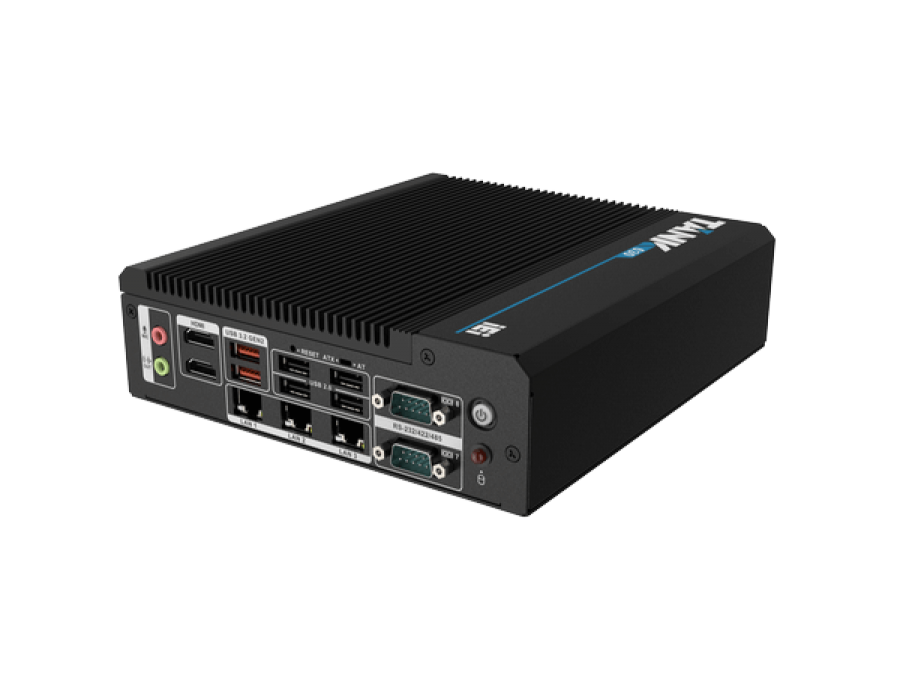

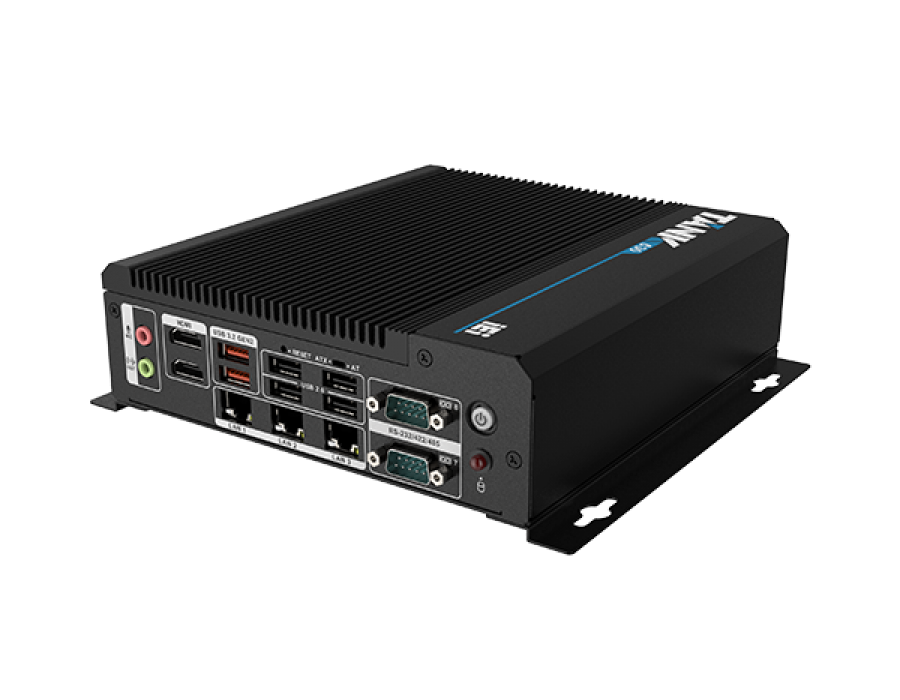

TANK-630-EHL-JC-R10 Fanless embedded system with Intel® Celeron® J6412 2.0GHz, (up to 2.6GHz, 4-Core, TDP 10W), 8GB DDR4 pre-installed memory, 10V~28V DC, 6xRS232, 2xRS-232/422/485, 2xUSB 3.2, 4xUSB2.0, 2xHDMI, 3x2.5GbE Lan, RoHS

Fanless system with Intel® Celeron® J6412 processor
Multiple COM ports: six RS-232 and two RS-232/422/485
2 x HDMI dual independent display
M.2 and one 2.5” SATA storage device
CE/FCC compliant

Datasheet Download

I/O Interface
SBC Form Factor	Supported CPU: Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W) Chipset: SoC System Memory: 2 x SO-DIMM DDR4 3200 (8GB pre-installed) (up to 32GB) Power: DC Jack: 12 ~ 28V DC Terminal Block: 12 ~ 28V DC Consumption: 12V@3.36 (Intel® Celeron® J6412 with 8GB DDR4 Memory)

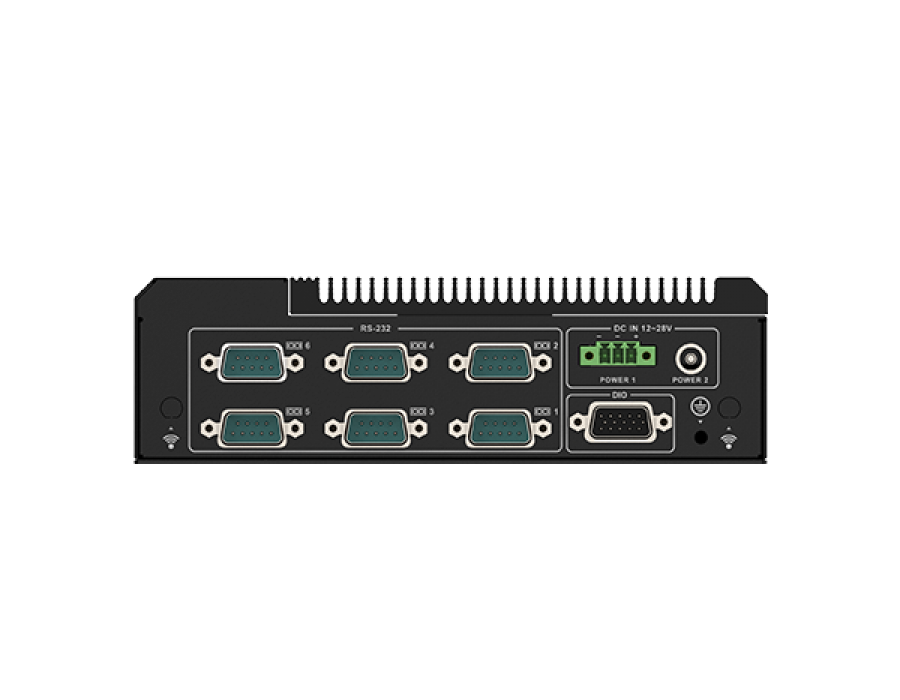

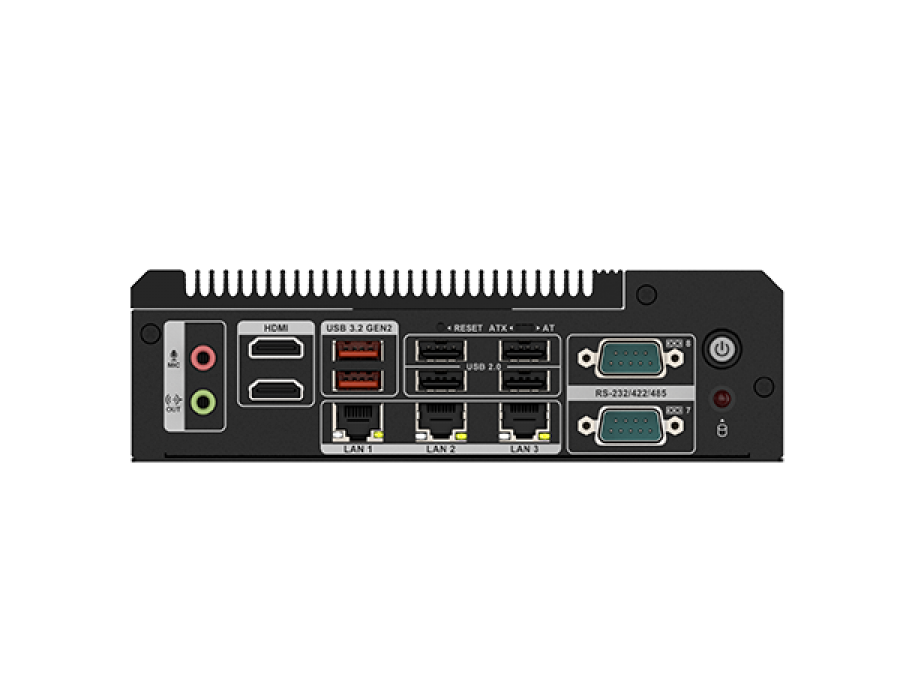

I/O Ports	USB: 2 x USB3.2 Gen2 4 x USB 2.0 Ethernet: 3 x 2.5 GbE by Intel® I225-V/I226-V controller Display: 2 x HDMI™ (up to 4K@30Hz) COM Port: 2 x RS-232/422/485 (DB-9) 6 x RS-232 (DB-9) Digital I/O: 12-bit Digital I/O (DB15) Audio: 1 x Line-out 1 x Mic-in Wireless: 1 x 802.11a/b/g/n/ac (optional) TPM: 1 x TPM (2 x10 pin) Intel PTT Watchdog Timer: Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots	M.2: 1 x 2230 A-key (PCIe Gen3 x1/USB 2.0) 1 x 2042/52/80 B-key (SATA/USB 2.0) 1 x 2280 M-key (PCIe Gen3 x2)
System
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons	1 x Power Button 1 x Reset Button 1 x AT/ATX Switch
Indicators	1 x LED for Power 1 x LED for HDD
Physical Characteristics
Construction	Extruded aluminum alloy
Color
Color	Black
Dimensions
Dimensions	184 x 200.6 x 53 (mm)
Weight
Weight	2.04 /2.29 kg
Environment
Operating Temperature	-10°C ~ 50°C with 0.7M/S air flow (M.2)
Humidity	10% ~ 95% non-condensing
Operating Vibration	MIL-STD-810G 514.6C-1 (SSD)
Operating Shock	Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Safety & EMC	CE, FCC, UKCA
OS Support
OS Support	Microsoft® Windows® 10/11, Linux
