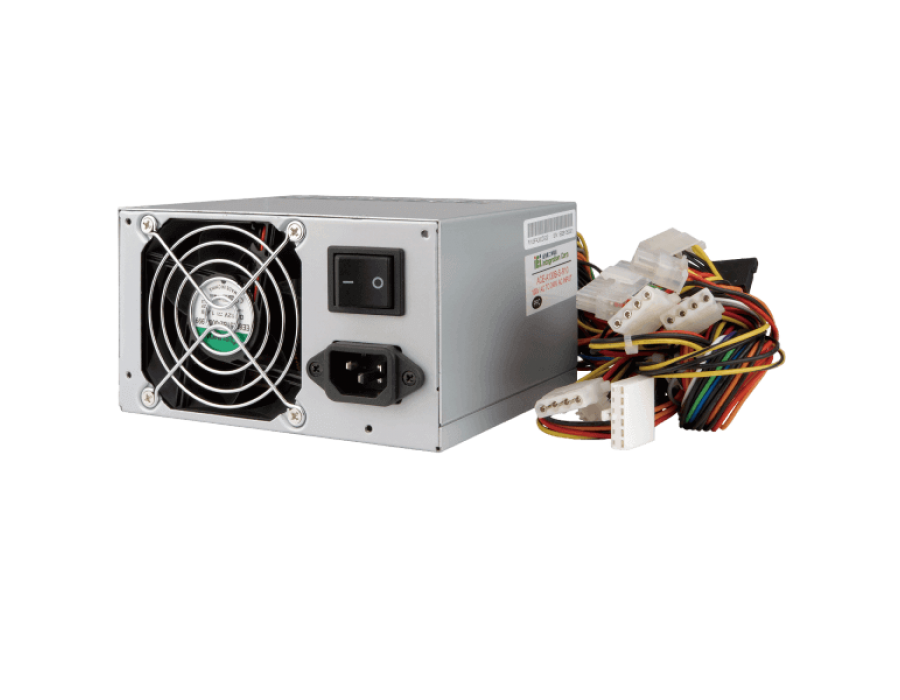

63030-010500-030-RS FLEX;FSP;FSP500-50FDB;9PA500CB10;Active PFC;Vin:100~240VAC;500W;81.5*150*40.5mm;;;;Vout:ATX;ATX;;CCL;RoHS
| Input | |
|---|---|
| Voltage | 90~264 VAC Full Range |
| Frequency | 47 Hz ~ 63 Hz |
| Input Current | 4A (RMS)@115VAC, 2A (RMS)@230VAC |
| Inrush Current | 80A max. for 115VAC, 160A max. for 230VAC |
| Output | |
| Voltage | +3.3V/19A,+5V/16A,+12V1/17A,+12V2/17A,-12V/0.5A,+5Vsb/3A,-5V/0.1A |
| Over Voltage Protection | +3.3V: 3.7V-4.3V +5V: 5.74V-7.0V +12V1 and +12V2: 13.4V-15.6V |
| Short Circuit Protection | +3.3V, +5V, +12V or -12V shutdown and latch off |
| General | |
| Watt | 300 |
| Efficiency | 0.87 |
| MTBF | 100000 |
| Operating temperature | 0°C ~ 50°C |
| Storage temperature | -40°C ~ 70°C |
| Dimensions | 140 x 150 x 86 |
| Output Connector | 1 x 20+4-PIN ATX, 2 x 4-pin 12V CPU, 7 x HDD/CDROM, 1 x Graphics card power, 1 x FDD, 2 x SATA |
