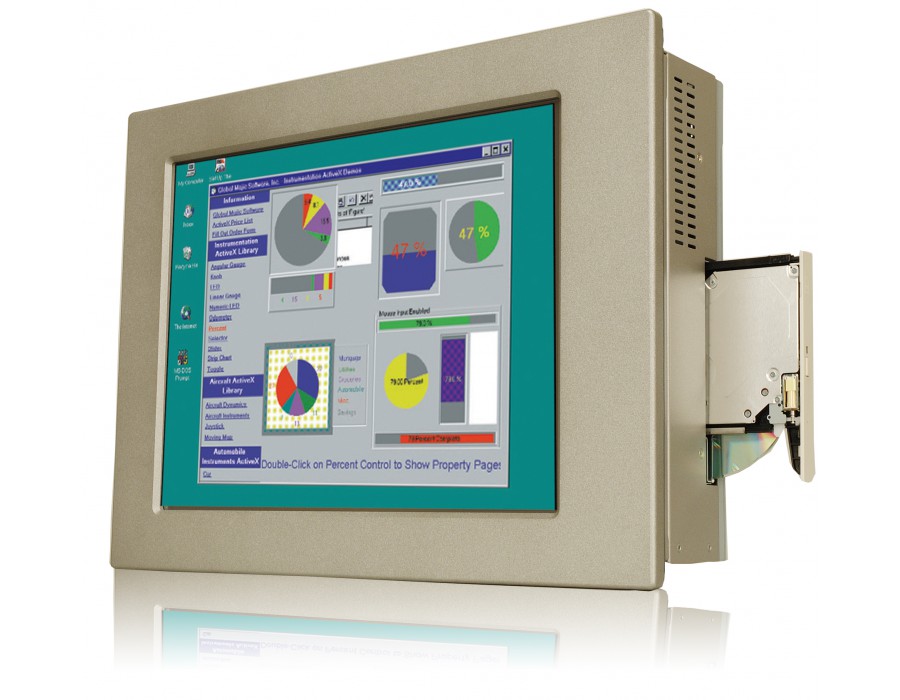

17” IP65 Heavy Industrial Panel PC with Intel® H61 Express Chipset with 2nd/3rd generation Intel® Core™, Pentium® and Celeron® processor
17" 350 cd/m2 SXGA Panel PC with POS-H61,Pentium Dual Core G6xxT (Above 2.2GHz),TDP 35W,2GB DDR3 RAM*2,Silver color,PSU ACE-A622A,touch screen
● Intel® H61 Express Chipset with 2nd/3rd generation Intel® Core™, Pentium® and Celeron®
processor
● High brightness TFT-LCD panel with LED backlight
● Multiple storage options: 2.5" SATA HDD, CF slot, and mSATA
● Dual Ethernet provides continuous network service and allows sharing among different
workgroups in two different subnets
● Optional PCIe Mini 802.11b/g/n wireless module
● Optional PCI / PCIe by 1 expansion slot
● Optional Slim type CD-ROM drive bay
● Robust aluminum front bezel and metal casing
● IP 66 compliant front panel for PPC-5170A-H61
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Over 4GB storage capacity)
| LCD Size | 17" |
| Max Resolution | 1280 (W) x 1024 (H) |
| Brightness (cd/m²) | 350 |
| Contrast Ratio | 800:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) (HxV) | 0.264 × 0.264 |
| Viewing Angle (V/H) | 170°/160° |
| Backlight MTBF (hrs) | 50,000 |
| Touch Screen | Resistive Type 5-Wire with RS-232 interface |
| Touch Controller | DMC 9000 |
| SBC | POS-H61 |
| CPU | 2nd/3rd Generation Intel® Core™ Core™ i7/ i5/ i3, Petium® and Celeron® processor |
| Chipset | Intel® H61 |
| RAM | Two 204-pin DDR3 SO-DIMM slots (Max. 16GB) |
| Ethernet | Realtek RTL8111E PCIe GbE controller supporting ASF 2.0 |
| Audio Codec | Realtek ALC662 audio codec |
| I/O Ports and Switches | 4 x RS-232 COM Port 1 x RS-232/422/485 Port 2 x RJ-45 for LAN Port 4 x USB 2.0, 2 x USB 3.0 on rear 1 x VGA Port 1 x Audio (Line-out, MIC-in) 2 x SFP Fiber LAN 1 x Power Switch 1 x AT / ATX Switch 1 x PCI/PCIe Slot |
| HDD Driver Bay | 1 x 2.5" SATA HDD bay with anti-shook |
| SSD | CF Type II, mSATA |
| CD-ROM Drive Bay | SATA Slim Type CD-ROM Bay |
| Expansion Slot | Either 1 x PCI slot or 1 x PCIe slot 1 x PCIe Mini card |
| Front Panel Construction | Aluminum |
| Chassis Contruction | Heavy-duty Steel |
| Mounting | Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
| Front Panel Color | Silver (Pantone 8001C) |
| Dimensions (WxHxD) (mm) | 452 x 356 x 115 |
| Cut Out Dimensions (WxH) (mm) | 426 x 331 |
| Net / Gross Weight | 8 Kg / 12 Kg |
| System Cooling | Active with Fan |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| IP Rating | Front IP66 Compliant |
| Vibration | 5~17Hz, 0.1" double amplitude displacement 17~640Hz, 1.5G acceleration peak to peak |
| Shock | 10G acceleration part to part (11ms) |
| Power Supply | AC Input ATX power supply -P/N: 63000-ACEA622A166-RS -220W power supply -Input: 90VAC~264VAC, 50/60Hz -Output(max.): 3.3V@14A, 5V@16A, 12V@10A, -12V@0.8A DC Input ATX power supply -P/N: ACE-4520C-RS -200W power supply -Input: 24 VDC(18~36 VDC) -Output(max.): 3.3V@12A, 5V@12A, 12V@15.4A, -12V@0.5A |
