Intel® Core™2 Duo Processor with Intel® 945GM Platform

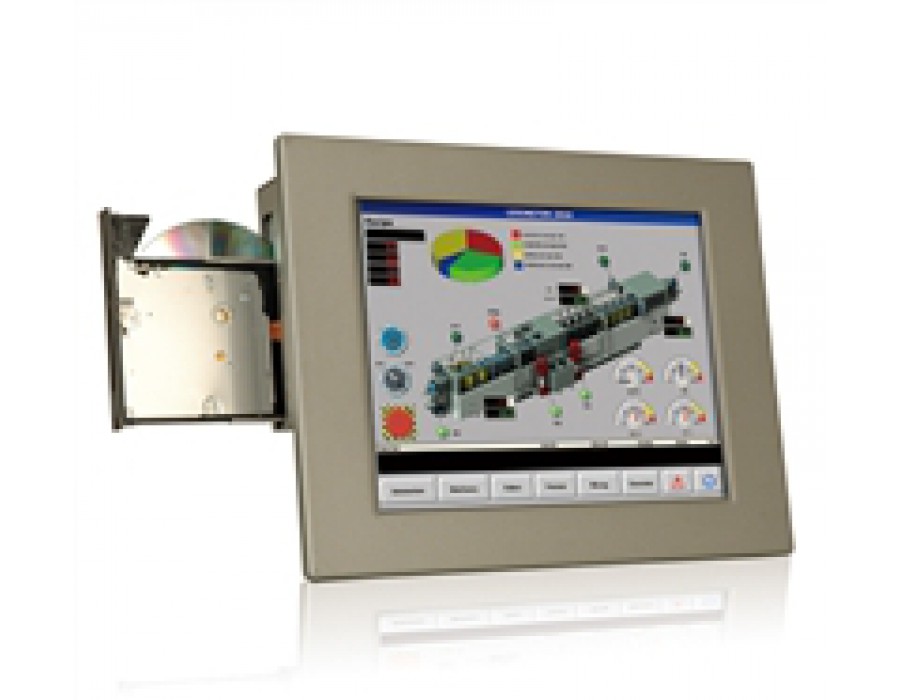

12.1" 500 cd/m2 XGA TFT Panel PC with NANO-9452,Intel Core Duo 1.66GHz T5500,Silver color,T/S,1GB DDR2 RAM
1. 12.1" 500nits high brightness TFT LCD with LED Backlight
2. Dual Gigabit Ethernet provides continuous network service and allows sharing among different workgroups in two diffeent subnets
3. Optional 802.11 b/g wireless kit
4. One slim type CD-ROM Ddrive bay
5. One internal 2.5" SATA HDD and CF slot
6. Robust aluminum front bezel and metal casing
7. IP65 compliant front panel
| LCD Size | 12.1” |
| Max Resolution | 1024(W) x 768(H) |
| Brightness (cd/m²) | 500 |
| Contrast Ratio | 700:1 |
| LCD Color | 262K |
| Pixel Pitch (mm) (HxV) | 0.3075(H) x 0.3075(V) |
| Viewing Angle (V/H) | 160°/160° |
| Backlight MTBF (hrs) | 50000 (LED Backlight) |
| Touch Screen | Resistive Type 5-Wire with RS-232 interface |
| Touch Controller | EETI MBMER4050CMBG |
| SBC | NANO-9452 |
| CPU | Socket M Intel® Core™2 Duo, Core Duo, Core Solo with 667MHz FSB Intel® Celeron®M 533MHz FSB |
| Chipset | Intel® 945GME + ICH7M |
| RAM | One 200-pin SO-DIMM socket, supporting DDR2 400/533/667MHz modules for up to 2GB |
| Ethernet | Realtek RTL8111E PCIe GbE controller supporting ASF 2.0 |
| Audio Codec | Realtek ALC655 AC’97 audio codec |
| I/O Ports and Switches | 2 x RS-232 1 x RS-232 (Alternative to RS-422/485) 2 x RJ-45 for LAN Port 2 x USB 2.0 1 x VGA Port 1 x Line-in, Line-out, MIC-in 1 x PS/2 mouse and keyboard interface 1 x 12VDC input Power Jack 1 x Power Switch |
| HDD Driver Bay | 1 x 2.5” SATA HDD Bay |
| SSD | CF Type II |
| CD-ROM Drive Bay | SATA Slim Type CD-ROM Bay |
| Expansion Slot | 1 x PCIe Mini card |
| Front Panel Construction | Aluminum Die-casting |
| Chassis Contruction | Heavy-duty Steel (SECC) |
| Mounting | Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm |
| Front Panel Color | Silver (Pantone 8001C) |
| Dimensions (WxHxD) (mm) | 340 x 277 x 73.4 |
| Cut Out Dimensions (WxH) (mm) | 313 x 233 |
| Net / Gross Weight | 6 Kg /8 Kg |
| System Cooling | Active with Fan |
| Operating Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| IP Rating | IP 65 compliant front panel |
| Vibration | 5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak |
| Shock | 10G acceleration part to part (11ms) |
| Power Supply | P/N: 63000-FSP084DMBA1308-RS 84W Power Adapter Input: 90VAC~264VAC,50/60Hz Output: 12VDC |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
