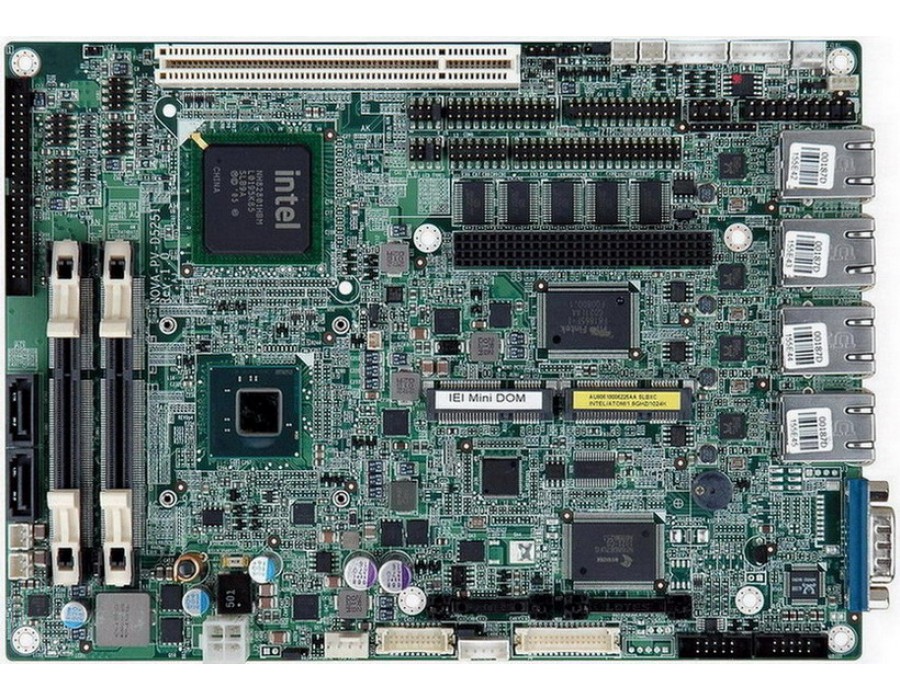

NOVA-PV-D5251-G2L2 - IEI Integration 5.25" industrijska matična ploča, Intel® Atom™ D525 dual-core 1.8GHz, DDR3, 18+48-bit LVDS/VGA, dual PCIe Mini, dual PCIe GbE, USB 2.0, SATA 3Gb/s, audio, RoHS
1. 5.25" SBC supports Intel® Atom™ D525 processor
2. 800/1066 MHz DDR3 supports up to 4GB
3. VGA/18-bit single-channel/24-bit dual-channel LVDS for dual independent display support
4. Quad PCIe Ethernet, two SATA 3Gb/s, and six RS-232 serial port connectors
5. TPM V1.2 hardware security function supported by TPM module
6. IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| CPU | 1.8GHz Intel® Atom™ D525 dual-core processor with 1MB L2 cache |
| System Chipset | Intel® ICH8M |
| BIOS | UEFI BIOS |
| System Memory | Two 204-pin 800MHz DDR3 SDRAM SO-DIMMs supported (system max. 4GB) for D525/D425 |
| Ethernet | Four PCIe Realtek RTL8111E GbE controller, LAN1 with ASF 2.0 support |
| I/O Interface | 4 x RS-232 for NOVA-PV-D5251/D4251-G2L2-R10 5 x RS-232 for NOVA-PV-D5251-G4-R10 1 x RS-232/422/485 with auto flow control 8 x USB 2.0 2 x SATA 3Gb/s 1 x LPT 1 x IDE 1 x CF Type II 1 x 6-pin header for KB/MS |
| Digital I/O | 24-bit digital I/O, 12-bit input/12-bit output |
| Super I/O | Fintek F81865 |
| TPM | 2 x 10-pin header |
| SMBus | 1 x 4-pin wafer |
| Audio | Realtek ALC888 HD Audio codec |
| Display Interfaces | Dual display supported 1 x VGA 1 x 18-bit single-channel LVDS 1 x 24-bit dual-channel LVDS |
| Expansion | 1 x PCI-104 2 x PCIe Mini card slot 1 x PCI |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
| Power Supply | 12V only |
| Power Consumption | 12V@1.46A (Intel® Atom™ D525 1.8GHz with DDR3 1GB*2) |
| Connectors | 2 x 2-pin wafer for SATA 5V power connector |
| Graphic | GMA 3150 Graphic core speed 400MHz for D525/D425 |
| Operating Temperature | Operating: -10°C ~ 60°C |
| Humidity | Operation: 5% ~ 95%, non-condensing |
| Dimensions | 203 mm x 146 mm |
| Weight | GW: 1000g/NW: 400g |
| Fan Connector | 1 x 4-pin CPU fan connector 1 x 3-pin system fan connector |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
