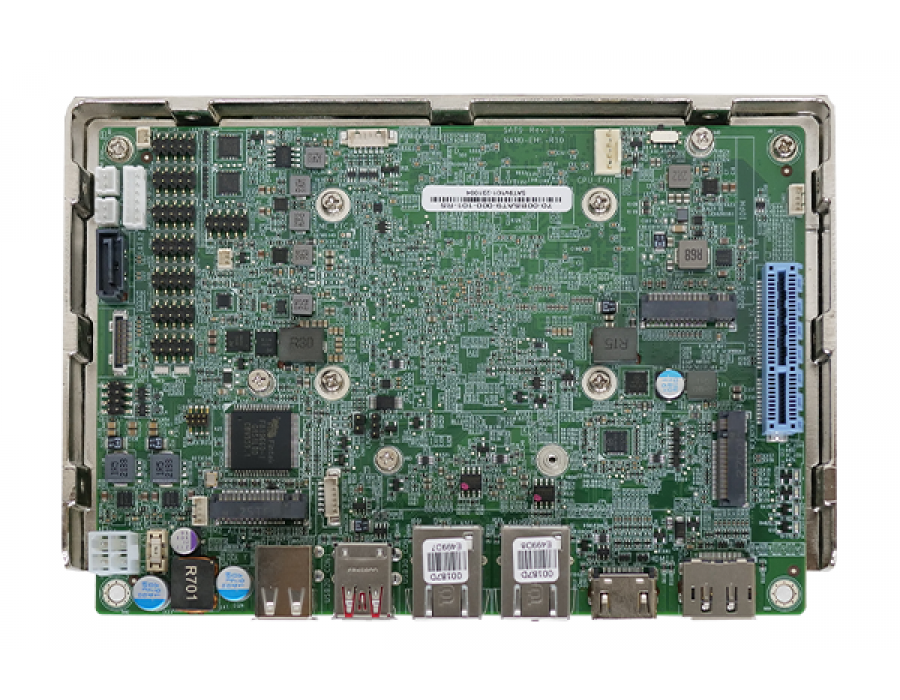

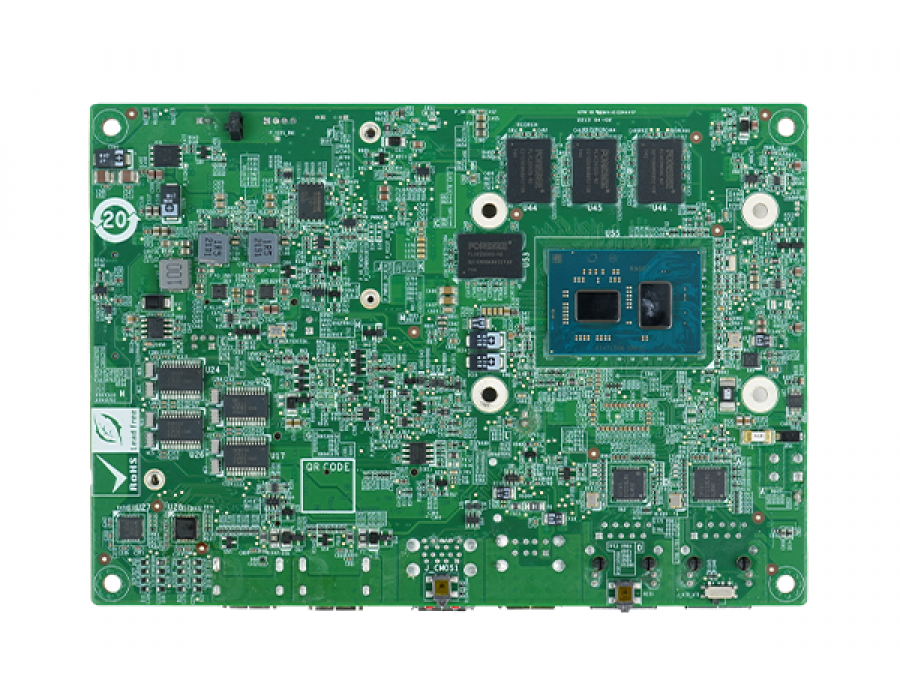

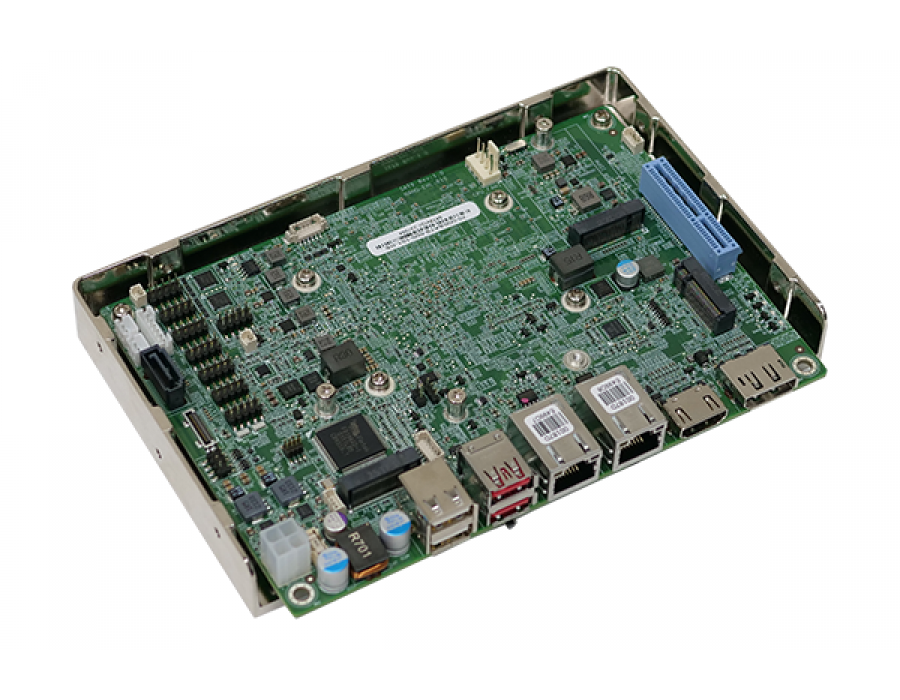

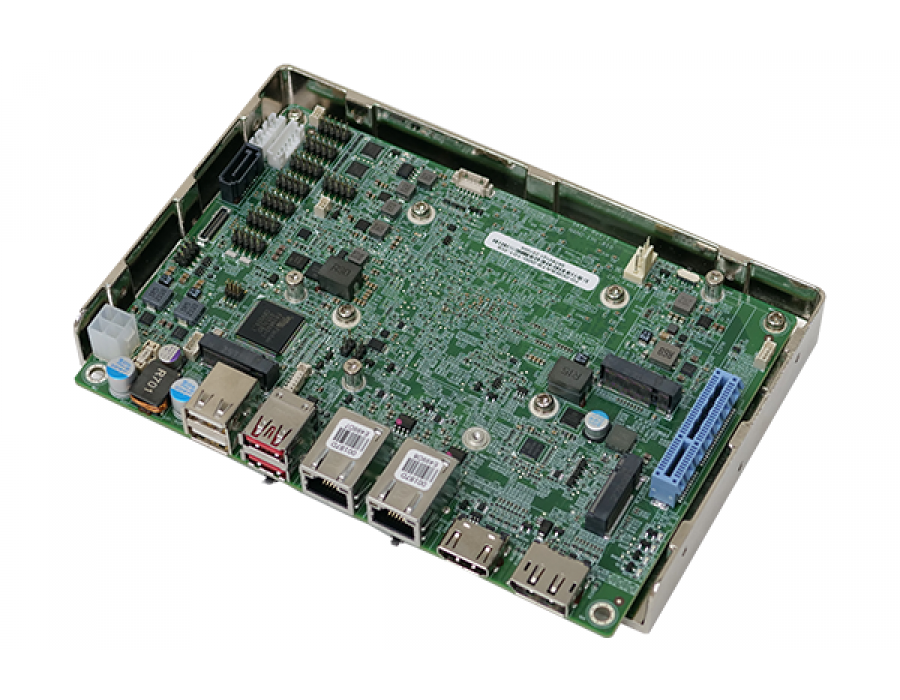

NANO-EHL-J6412C-R10 - IEI EPIC SBC supports Intel® quad-core Celeron® J6412 2.0GHz on-board SoC, with 8GB LPDDR4x memory on board default, with DP, HDMI, iDPM, M.2 A key, M.2 M key, M.2 B key, USB 3.1, SATA 6Gb/s, COM, Iaudio, PCIe x2 for riser card and RoHS
Support Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
Support dual Intel® I225V 2.5GbE Ethernet controller
Support triple independent displays via DP, HDMI™ and iDPM
Support one PCIe Gen3 x4, one M.2 A key and one M.2 B Key expansions
Support two USB 3.2 Gen2, four USB 2.0, four RS-232, two RS-232/422/485
| Form Factor | |
|---|---|
| Form Factor | EPIC |
| System | |
| CPU | Onboard Intel® Atom™ x6000 series Celeron® processor (Elkhart Lake platform) Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W) |
| Memory | LPDDR4x-3200Gbps 8GB, up to 16GB |
| Memory Max. | 16GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 165mm x 115mm |
| Net Weight | 350g |
| Storage | |
| Storage | 2 x SATA - 1 x SATA 6Gb/s with 5V SATA power connector 1 x iSATA |
| I/O Interface | |
| Display Output | 1 x DP++ : up to 4096 x 2160 @60Hz |
| 1 x HDMI™ : up to 4096 x 2160 @30Hz | |
| 1 x iDPM : support iEi eDP/ LVDS/ VGA module | |
| Ethernet | 2 x LAN - LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x iAUDIO(2 x 5 pin, support IEI AC-KIT-888HD Module) |
| I/O Interface | 2 x External USB 2.0 : Type A |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s(Type A) | |
| 4 x Internal RS-232 : 2x5 pin, P=2.0 | |
| 2 x Internal RS-232/422/485 : 2x5 pin, P=2.0 | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| Expansion | 2 x M.2(NGFF) - 1 x M.2 B Key (2242/2280) PCIe Gen3 x2&USB2.0 1 x M.2 A Key (2230) PCIe Gen3 x1/USB2.0 |
| 1 x PCIe x4 : PCIe Gen3 x4 (x2 signal) | |
| Power | |
| Power Consumption | 12V@2.75A (Intel® Celeron® J6412 CPU with 8 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode disabled) |
| Power Supply | 1 x Internal power connector (2x2 pin) Support AT/ATX mode |
| Environment | |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -20°C~70°C |
| Humidity | 5% ~95%, non-condensing |
