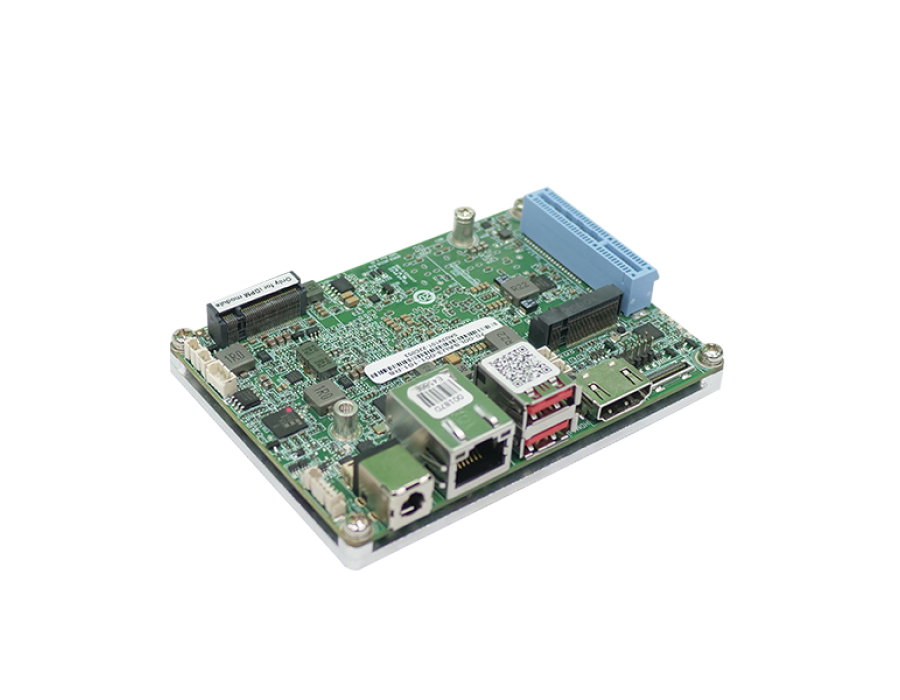

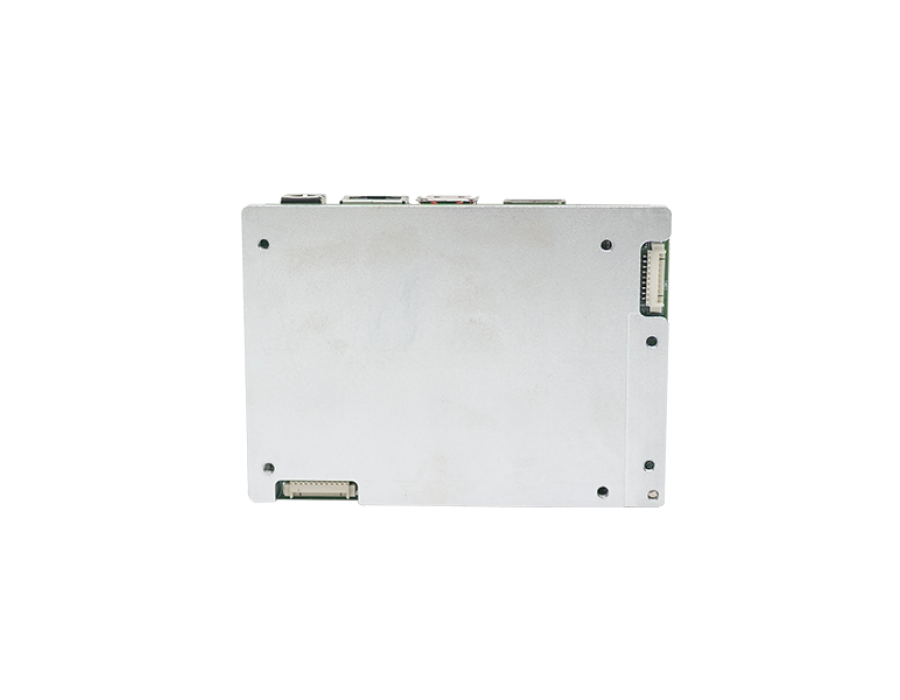

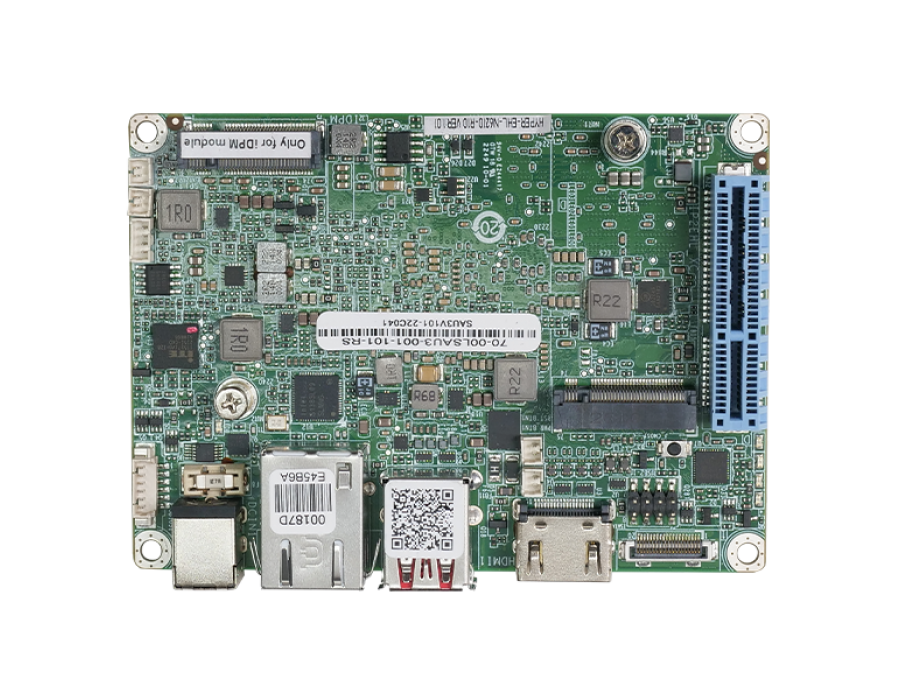

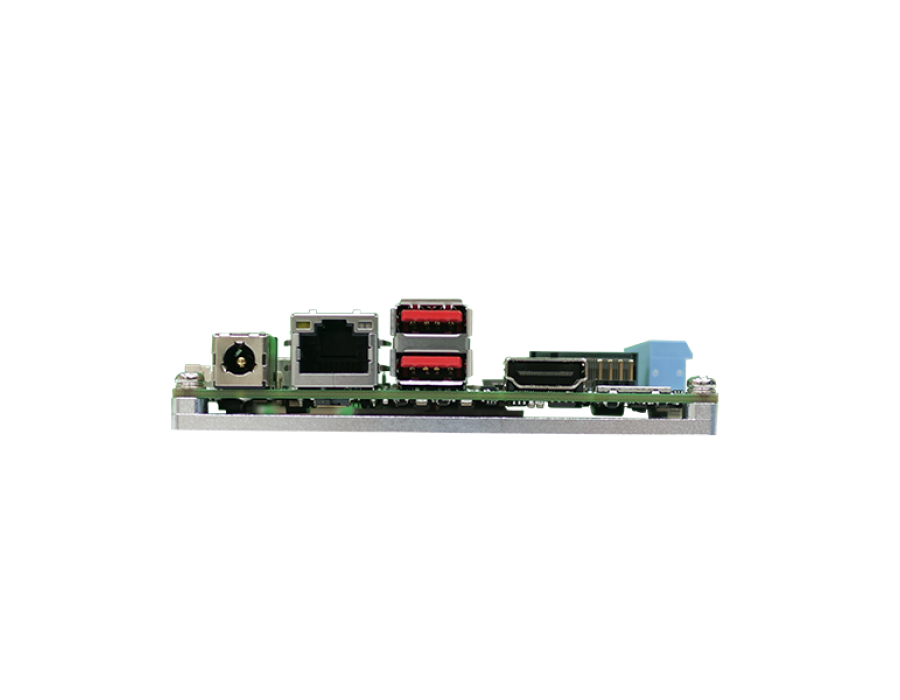

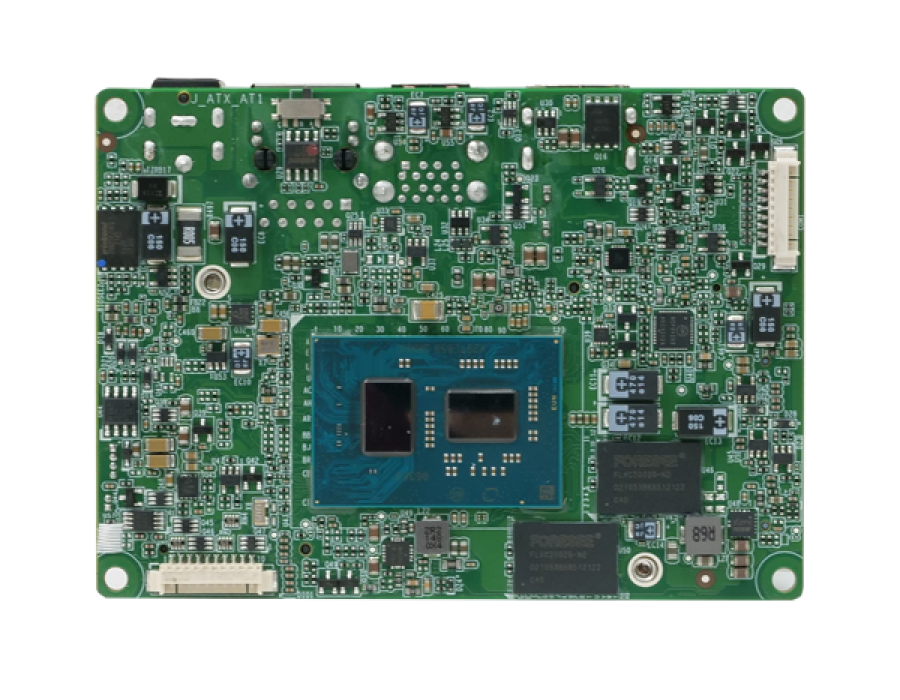

HYPER-EHL-J6412B-R11 PICO-ITX SBC supports Intel® quad-core Celeron® J6412 2.0GHz on-board SoC, with 4GB LPDDR4x memory on board default, with HDMI,iDPM,M.2 M key, Intel® I226V 2.5 GbE, USB 3.2,iSATA 6GB/s,COM,PCIe x4 for riser card and RoHS
| Form Factor | |
|---|---|
| Form Factor | Pico-ITX |
| System | |
| CPU |
|
| Memory | LPDDR4x-3200Gbps 4GB,up to 8GB |
| Memory Max. | 8GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 100mm x 72mm |
| Net Weight | 600g |
| Storage | |
| Storage | 1 x SATA : iSATA 6Gb/s |
| 1 x M.2(NGFF) : M key (2242,PCIe Gen3 X 2) | |
| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4096x2160 @ 30Hz |
| 1 x iDPM : support iEi eDP/ LVDS/ VGA module | |
| Ethernet | 1 x LAN - LAN1: Intel® I225V/I226V 2.5GbE controller |
| I/O Interface | 1 x Internal RS-232/422/485 : 1x9 pin, P=1.25 |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.0 | |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s (Type A) | |
| Expansion | 1 x PCIe x4 (PCIe Gen3 x4) |
| 1 x M.2(NGFF) : M key (2242,PCIe Gen3 X 2) | |
| Power | |
| Power Consumption | 12V@ 2.07A (Intel® Celeron® J6412 CPU with 4 GB 3200 MHz LPDDR4x memory, max. loading, EuP mode enabled) |
| Power Supply | ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -30°C~70°C |
| Humidity | 5% ~95%, non-condensing |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
