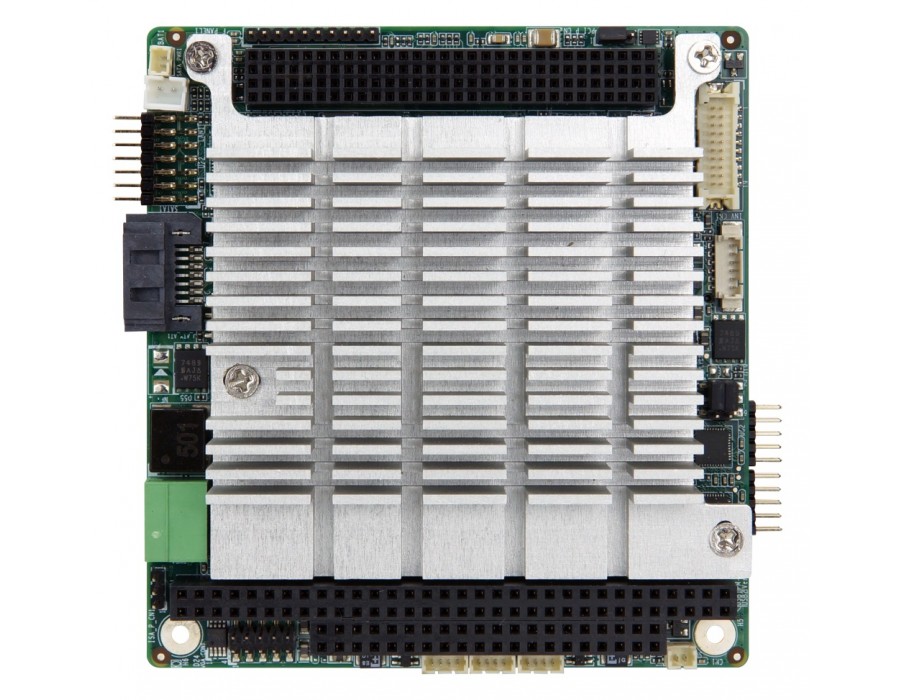

PM-BT-J19001-R10 - IEI PC/104-Plus Single Board Computer with Intel® Atom™ J1900 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
| SoC | Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W) |
| BIOS | AMI UEFI BIOS |
| Memory | One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB (J1900, N2930, E3845, E3827, E3826, E3825, E3815) |
| Graphics Engine | Intel® HD Graphics Gen 7 Engine with four execution units, supporting DX11.1, OpenGL 4.2 and OpenCL1.2 |
| Display Output | Dual independent display 1 x VGA (up to 2560x1600@60 Hz) 1 x 18/24-bit single-channel LVDS (2x10 pin) |
| Ethernet | 1 x Intel® I210 |
| Super I/O | Fintek F81866 |
| Internal I/O Interface | 1 x SATA 3Gb/s with 5V SATA power connector 3 x USB 2.0 (1x4 pin, P=1.25) 2 x RS-232/422/485 (2x5, P=2.0) |
| Storage | On-board SSD (optional, suuport by request) |
| Front Panel | 1 x 10-pin header, P=2.0 (power LED, HDD LED, power button and reset button) |
| Expansion | 1 x Full-size PCIe Mini slot (supports mSATA) 1 x PC/104-Plus (ISA+PCI) |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin, P=2.0) |
| Power Supply | 5V DC input 12V for fan, LVDS and PCI-104 plus 5V for PCI-104 plus (1x3 pin, P=2.0) 12V for PCI-104 plus (1x3 pin, P=2.0) 3/5V jumper for PCI-104 plus Support AT/ATX mode ErP/EuP Compliant |
| Watchdog Timer | Software programmable, supports 1~255 sec. system reset |
| Operating Temperature | -20°C ~ 60°C (for J1900/N2930/N2807) |
| Storage Temperature | -40°C ~ 85°C |
| Thermal Heatsink | |
| Operating Humidity | 5% ~ 95%, non-condensing |

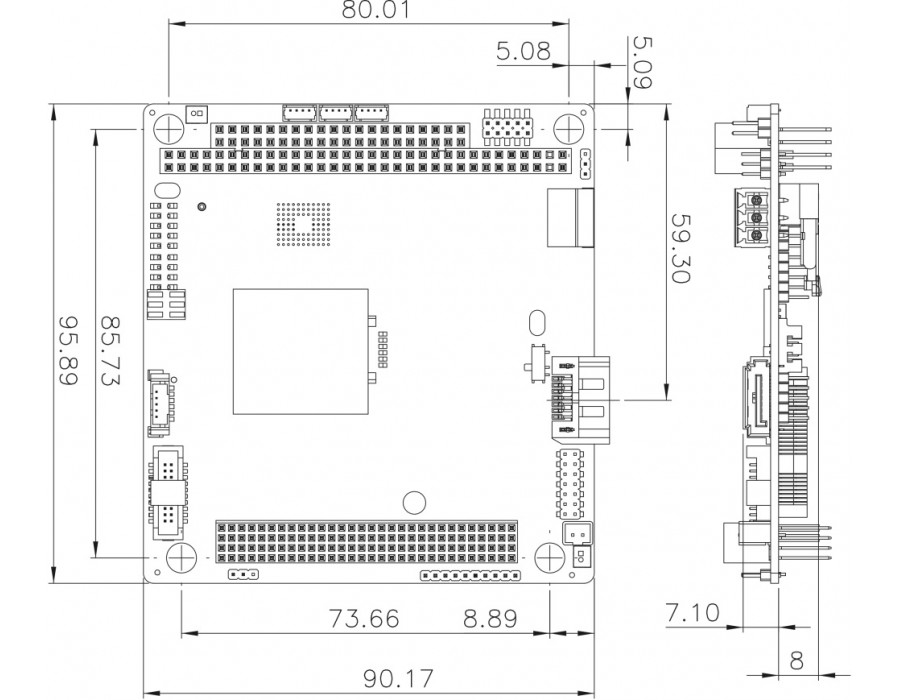

| Dimensions | 96 mm x 90 mm |
| Weight | GW: 500g / NW 120g |
| CE/FCC compliant |
