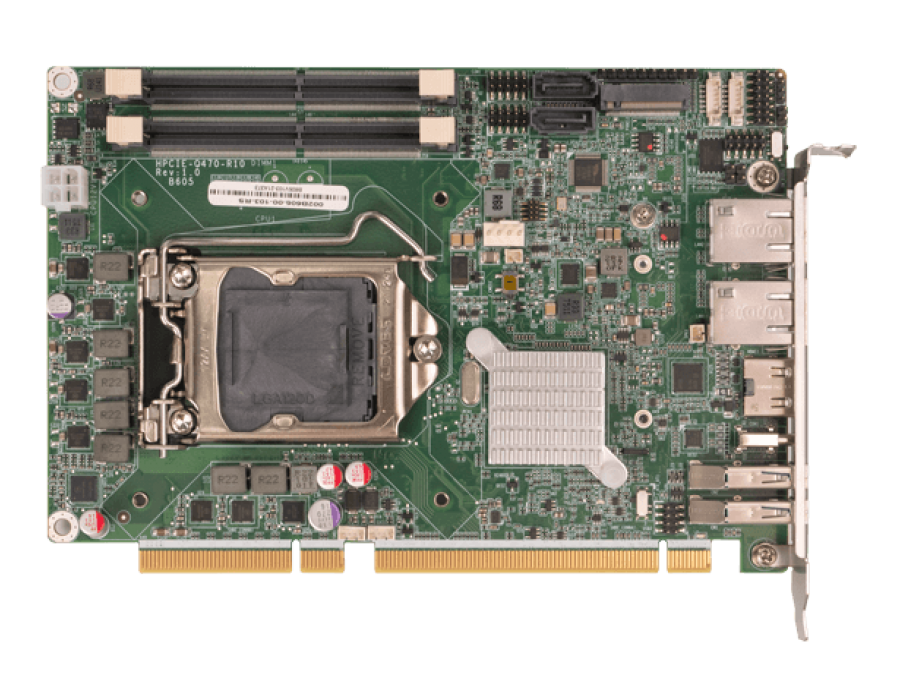

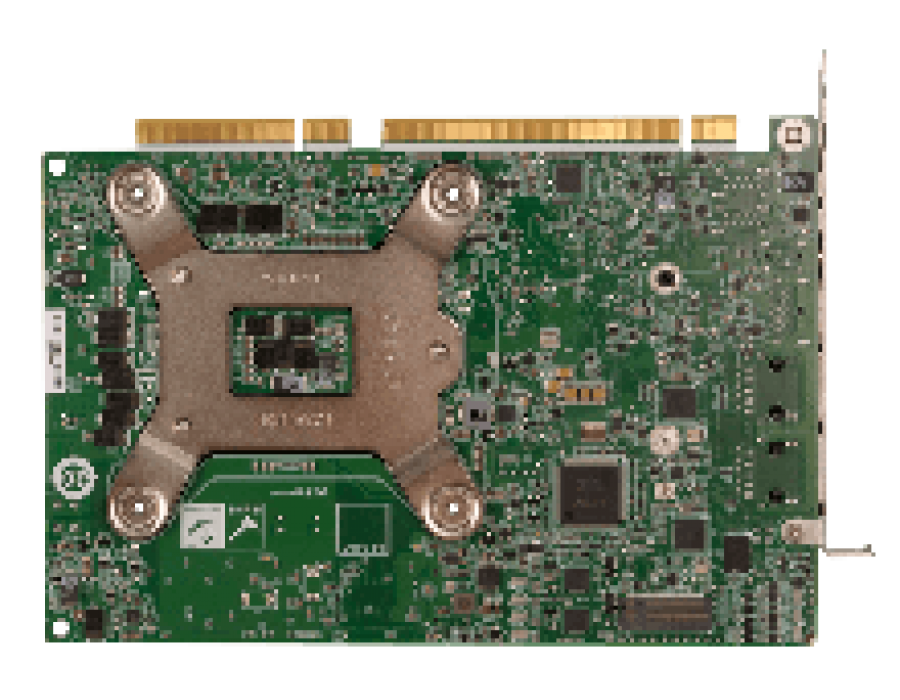

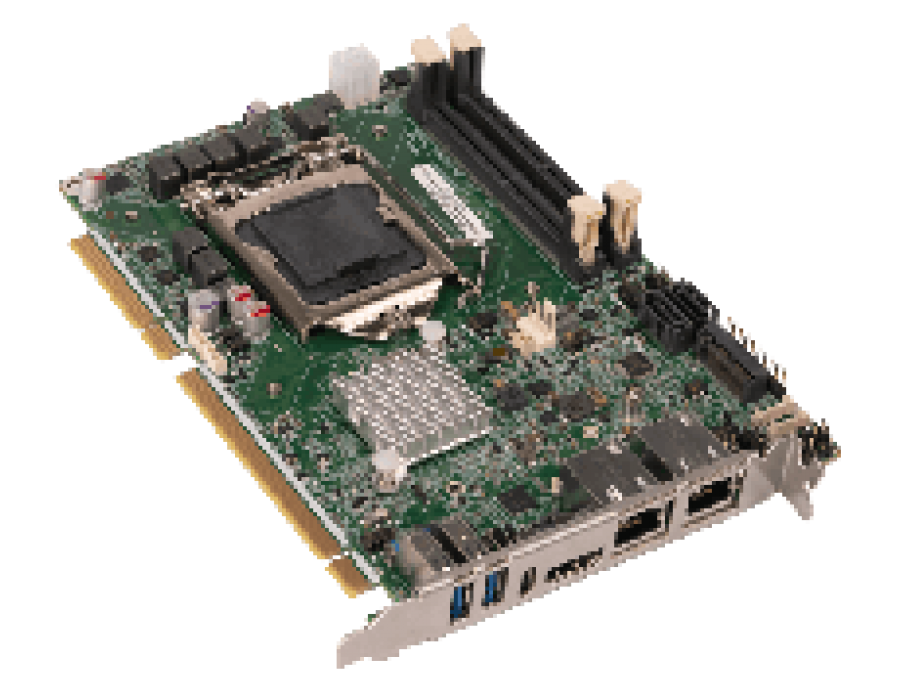

HPCIE-Q470-R11 Half-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q470E, DDR4 SO-DIMM, HDMI, USB-C, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2,HD Audio and RoHs
| Form Factor | |
|---|---|
| Form Factor | Half Size Single Board Computer |
| System | |
| CPU | LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3,Pentium® and Celeron® processor(Support up to 65w) |
| Chipset | Intel® Q470/Q470E |
| Memory | 2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G |
| Memory Max. | up to 64GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 185 mm x 126 mm |
| Net Weight | 420g |
| Storage | |
| Storage | 2 x SATA : 6Gb/s (support RAID 0/1) |
| 1 x M.2(NGFF) : M Key (2242/2280) with PCIe Gen3 x4 ,support NVME storage | |

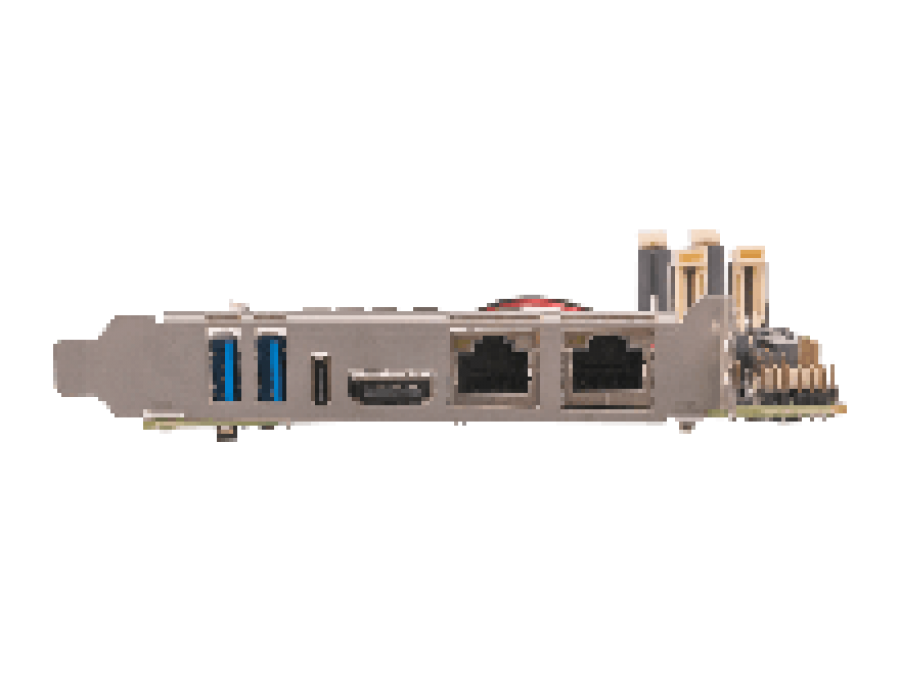

| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4096 x 2160@30Hz |
| Ethernet | 2 x LAN : LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x IAUDIO, support IEI AC-KIT-888S Audio Module (2 x 5 pin) |
| I/O Interface | 2 x Internal RS-232/422/485 : 2x5 pin, P=2.00 ,RS-485 support AFC |
| 2 x External USB 3.2 Gen1x1 : 5Gb/s (Type-A) | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.00 | |
| DIO : 12-bit digital I/O (2x7 pin) | |
| 1 x External USB 3.2 Gen2x1 : 10Gb/s (Type-C) | |
| Expansion | 1 x PCIe x16 : signal from CPU via golden finger (supports x16, or x8 + x8, or x4 + x4 + x8) |
| 1 x PCIe x4 : signal from PCH via golden finger (supports x4, or x1 + x1 + x1 + x1) |
|
| 2 x M.2(NGFF) : 1 x M.2 A key (2230) with PCIe Gen3 x2/USB 2.0 1 x M.2 M key (2280/2242) with PCIe Gen3 x4 |
|
| Power | |
| Power Supply | 5V/12V, ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | -30°C – 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
