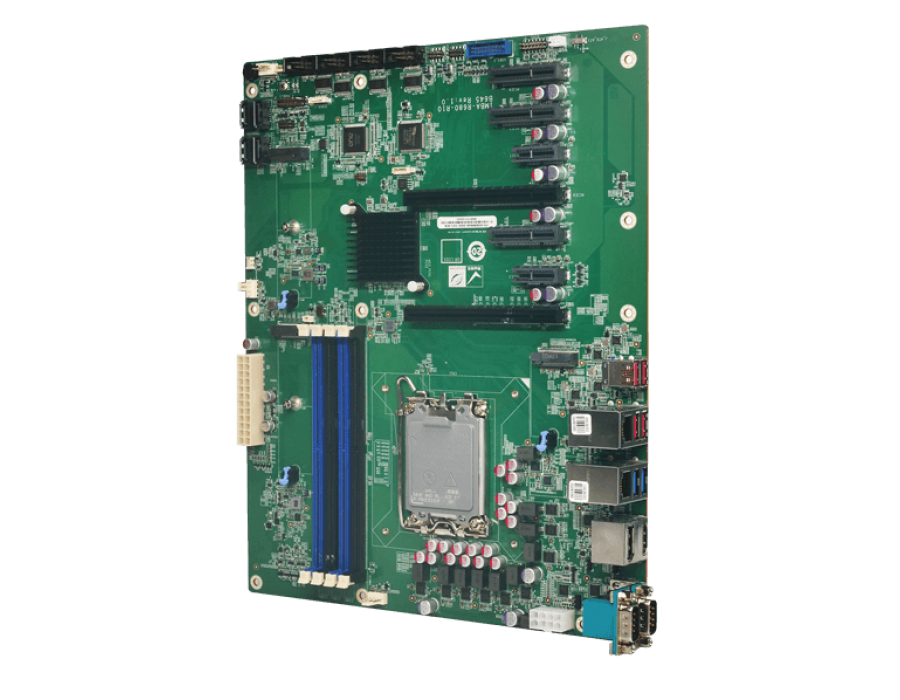

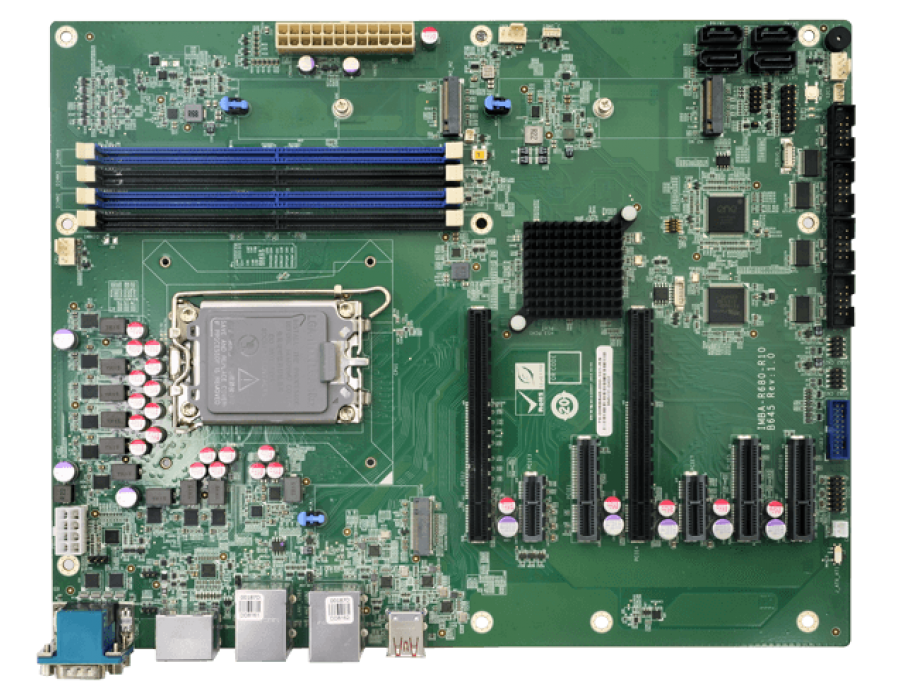

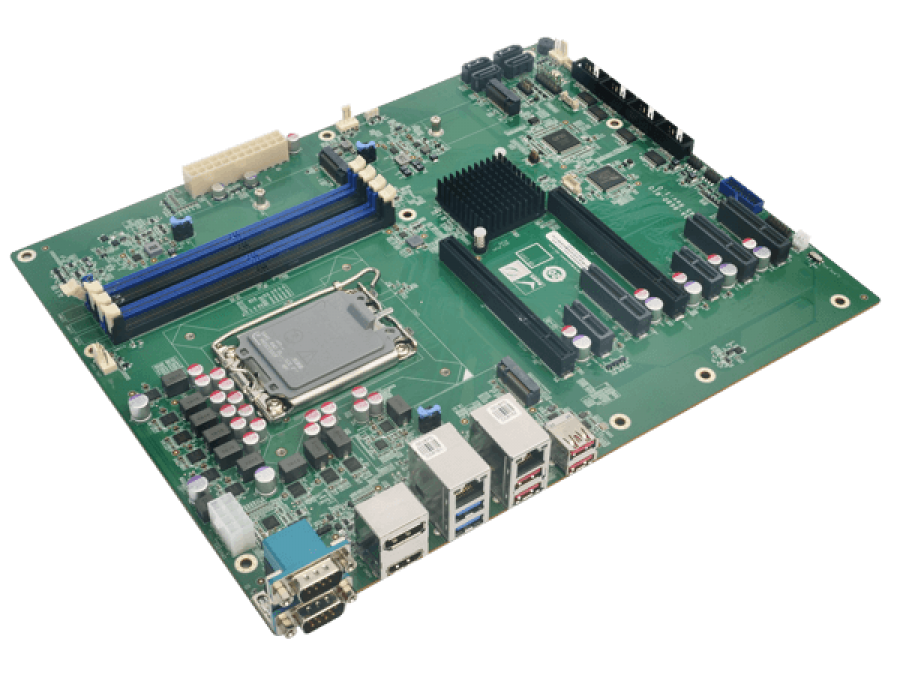

IMBA-R680-R11 ATX motherboard supports LGA1700 12th/13th/14th Generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, and RoHS
1. LGA1700 Intel® 12th/13th Generation Core i9/i7/i5/i3, Pentium and Celeron processor(125W)
2. Dual-channel DDR5 4800MHz
3. Support DisplayPort 1.4a, HDMI and IDPM module
4. Support 2 x M.2 M key for NVMe storage
5. High Performance ATX motherboard with PCIe Gen4 and Gen5 expansion Slot
| Form Factor | |
|---|---|
| Form Factor | ATX Motherboard |
| System | |
| CPU | LGA1700 socket supports 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU) |
| Chipset | Intel®R680E |
| Memory | Four 288-pin Dual-Channel DDR5 (up to 4400 MHz) SDRAM Unbuffered DIMMs (ECC&non-ECC support) |
| Memory Max. | 192GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 305mm |
| Net Weight | 700g |
| Storage | |
| Storage | 4 x SATA : RAID 0/1/5/10 supported |
| 2 x M.2(NGFF) : M Key (2242/2280, PCIe x4) NVMe supported | |

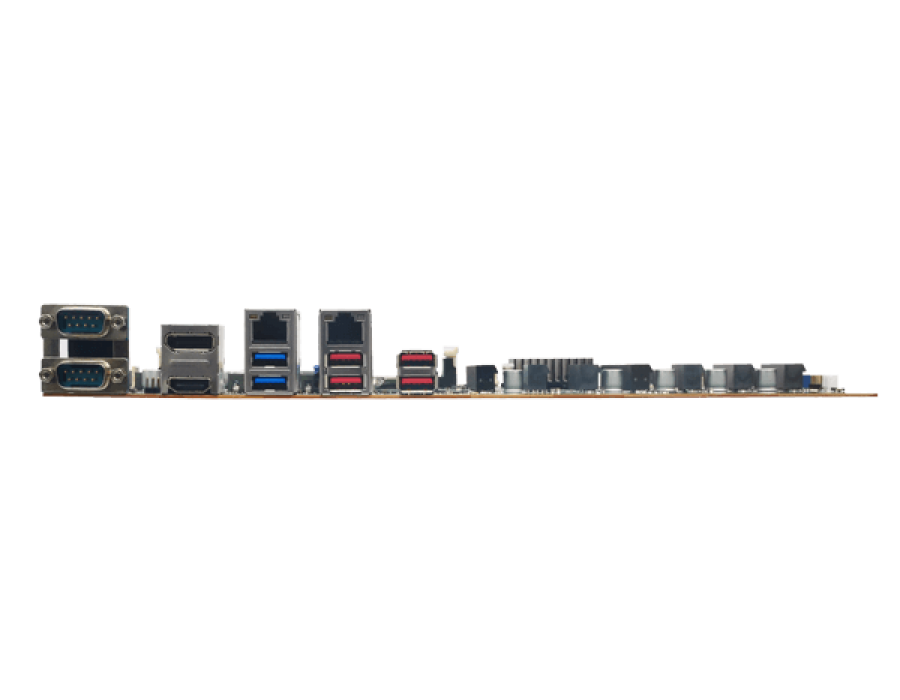

| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 3840*2160 @30Hz |
| 1 x Display Port : up to 4096 x 2304 @60Hz | |
| 1 x iDPM : support iEi eDP/ LVDS/ VGA module | |
| Ethernet | 2 x LAN - LAN1: Intel® I225LM/I226LM 2.5GbE controller LAN2: Intel® I225V/I226V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x iAUDIO supports IEI AC-KIT-888S Audio Kit (2x5 pin) |
| I/O Interface | 2 x External RS-232/422/485 : RS-485 support AFC |
| 4 x Internal RS-232 : 2x5 pin, P=2.54 | |
| 2 x External USB 3.2 Gen1x1 : 5Gb/s (Type A) | |
| 4 x Internal USB 2.0 : 2x4 pin, P=2.00 | |
| 2 x Internal USB 3.2 Gen1x1 : 5Gb/s (2 X 10pin, P=2.00) | |
| 4 x External USB 3.2 Gen2x1 : 10Gb/s (Type A) | |
| Expansion | 2 x PCIe x16 : Gen5 slot with x8 Signal |
| 3 x PCIe x4 : Gen4 open-end | |
| 2 x PCIe x1 : Gen3 x1 | |
| 2 x M.2(NGFF) : M Key (2242/2280, PCIe x4) NVMe supported | |
| Power | |
| Power Consumption | 3.3V@0.89A, 5V@10.05A, 12V@6.05A, 5VSB@0.64A (Intel® Core™ i7-12700E CPU with four 16 GB 4800 MHz DDR5 memory, EuP mode enabled) |
| Power Supply | ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
