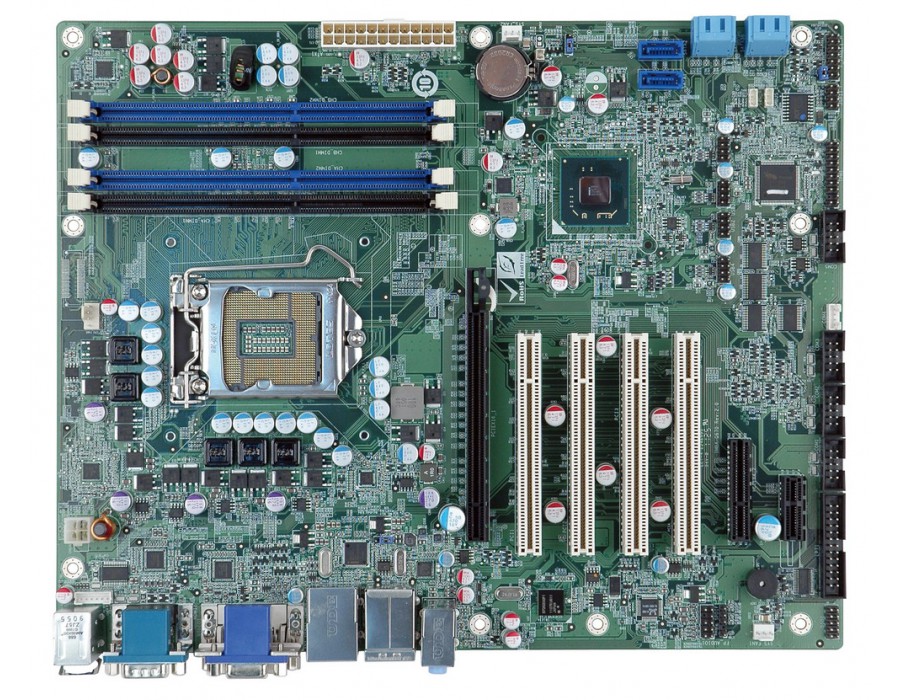

IMBA-Q670 je ATX industrijska matična ploča za LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® procesore i Intel® Q67 čipset sa DDR3, VGA/DVI-D/HDMI, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio i RoHS
1. LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported
2. Up to 32 GB 1333 MHz dual-channel DDR3 SDRAM
3. Intel® PCIe GbE with Intel® AMT 7.0 support
4. USB 3.0 and SATA 6Gb/s supported
5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| CPU | LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor |
| System Chipset | Intel® Q67 |
| BIOS | UEFI BIOS |
| System Memory | Four 240-pin 1333/1066MHz dual-channel unbuffered DDR3 SDRAM DIMM supported (system max. 32GB) |
| Ethernet | LAN1: Intel® 82583V PCIe controller LAN2: Intel® 82579 PHY with Intel® AMT 7.0 |
| I/O Interface | 5 x RS-232 1 x RS-422/485 1 x LPT 1 x PS/2 KB/MS 4 x SATA 3Gb/s with RAID 0/1/5/10 support 2 x SATA 6Gb/s with RAID 0/1/5/10 support 2 x USB 3.0 by NEC D720200F1 10 x USB 2.0 (2 by Rear IO, 8 by pin header) |
| Digital I/O | 8-bit digital I/O (4-bit input, 4-bit output) |
| Super I/O | Fintek F81866 |
| TPM | 1 x TPM connector (2x10 pin) |
| SMBus | 1 x 4-pin wafer |
| Audio | Realtek ALC662 HD Audio codec (Line-in, Line-out, Mic) |
| Display Interfaces | Dual display supported 1 x VGA 1 x HDMI 1 x DVI-D |
| Expansion | 1 x PCIe x16 slot 1 x PCIe x1 slot 1 x PCIe x4 slot 4 x PCI slots |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
| Power Supply | ATX/AT power supply |
| Power Consumption | 3.3V@1.65A, 5V@6.31A , 12V@0.18A, Vcore@7.88A, 5VSb@0.15 (Intel® Core™ i5-2400 3.10GHz CPU with four 4 GB 1333MHz DDR3 memory) |
| Graphic | Support for DX10.1 and OpenGL3.0 Full MPEG2, VC1, AVC Decode |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Dimensions | 244mm x 305mm |
| Weight | GW:1200g, NW: 700g |
| I2C | 1 x 4-pin wafer |
| Front Audio | 1 x 10-pin header |
| Fan Connector | 1 x 4-pin CPU fan connector 2 x 3-pin system fan connector |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
