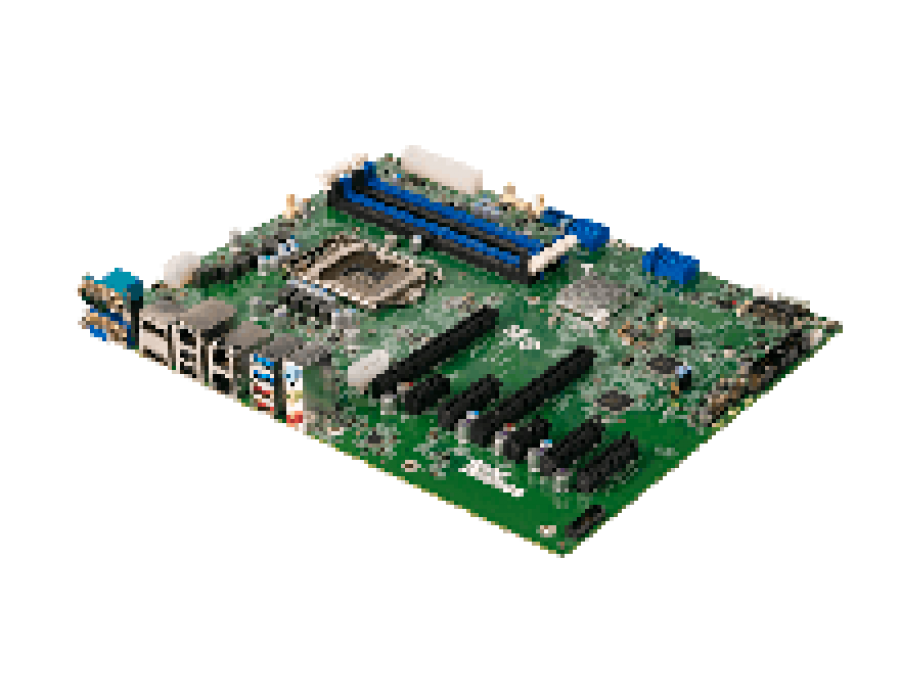

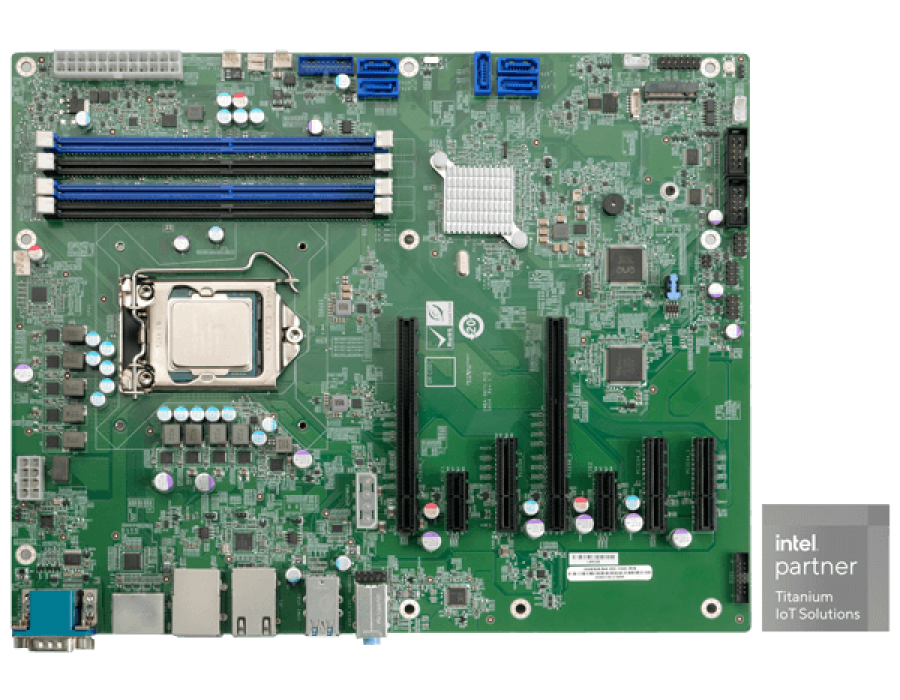

IMBA-Q471-R11 ATX motherboard supports LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, triple 2.5GbE LAN, pure PCIe slots，M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
1. support HDMI, DP, VGA triple independent display output
2. support triple Intel® i225V 2.5GbE controller
3. support 2 x PCIe x16, 3 x PCIe x4, 2 x PCIe x1 and 1 x M.2 M key expansion slots
4. support 2 x USB 3.2 Gen2, 4 x USB 3.2 Gen1, 8 x USB 2.0, transfer rate up to 10Gb/s
5. support 3 x RS-232, 1 x RS-232/422/485, 5 x SATA 6Gb/s connector
| System | |
|---|---|
| CPU | 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors |
| Chipset | Intel® Q470/Q470E |
| Memory | Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots, supporting up to 128 GB memory |
| Memory Max. | up to 128 GB memory |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x3 pin) |
| Storage | |
| Storage | 5 x SATA : 6Gb/s (RAID 0/1/5/10 supported) |
| I/O Interface | |
| Display Output | 1 x VGA : up to 1920 x 1080 @ 60 Hz |
| 1 x HDMI™ : up to 4096 x 2304 @ 30 Hz | |
| 1 x Display Port : up to 4096 x 2304 @ 60 Hz | |
| Ethernet | 3 x LAN - LAN1: Intel® I225V/I226V 2.5GbE controller LAN2: Intel® I225V/I226V 2.5GbE controller LAN3: Intel® I225V/I226V 2.5GbE controller |
| Audio | 1 x Line in (CD/DVD or other audio source input port) |
| 1 x Line out (connect this port to headphone or speaker) | |
| 1 x Mic (connect this port to microphone) | |
| 1 x Front Audio : 2x5 pin, p=2.54 | |
| 1 x HD Audio : Realtek ALC888S HD Audio codec supports 7.1-channel | |

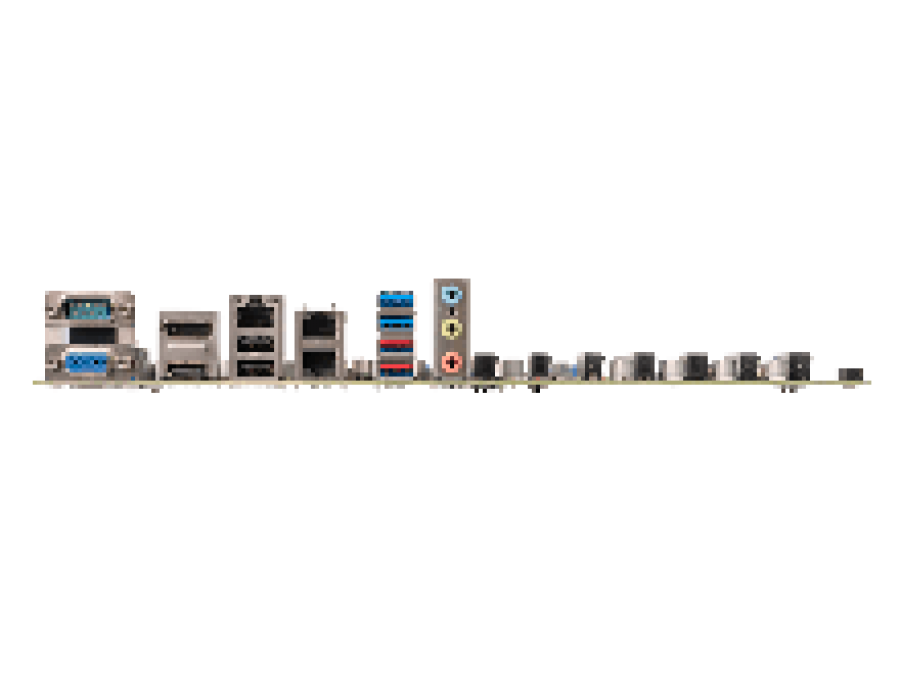

| I/O Interface | 1 x External RS-232 : DB-9 |
| 2 x Internal RS-232 : 2x5 pin, p=2.54 | |
| 1 x Internal RS-422/485 : 1x4 pin, p=2.0 | |
| 2 x External USB 2.0 : Type-A | |
| 2 x External USB 3.2 Gen1x1 : 5Gb/s (Type-A) | |
| 6 x Internal USB 2.0 : 2x4 pin, p=2.54 | |
| 2 x Internal USB 3.2 Gen1x1 : 2x10 pin, p=2.0 | |
| 1 x DIO : 12-bit digital I/O (2x7 pin, p=2.0) | |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s (Type-A) | |
| Expansion | 2 x PCIe x16 (x8 signal) |
| 3 x PCIe x4 | |
| 2 x PCIe x1 | |
| 1 x M.2(NGFF) : M-key 2242/2280 (PCIe x2, SATA) | |
| Other Features | |
| TPM | Intel® PTT(TPM 2.0) |
| Power | |
| Power Consumption | 3.3V@1.1A, 5V@3.359A, 12V@2.18A, 5VSB@0.12A (Intel® Core™ i5-10500TE CPU with four 8 GB 2933 MHz DDR4 DIMMs) |
| Power Supply | ATX/AT power supply Support AT/ATX mode ErP/EuP compliant |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
