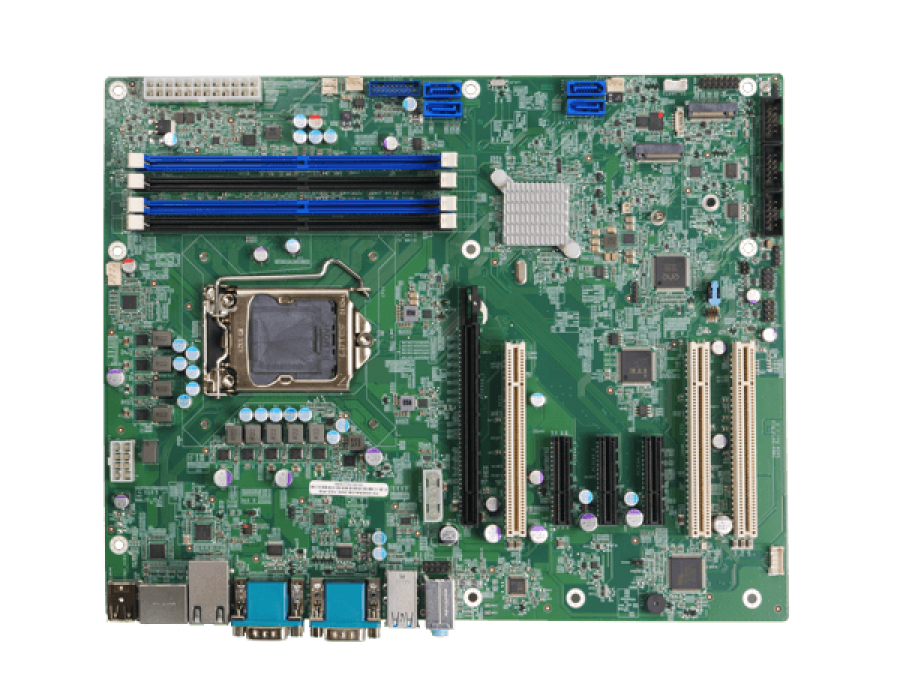

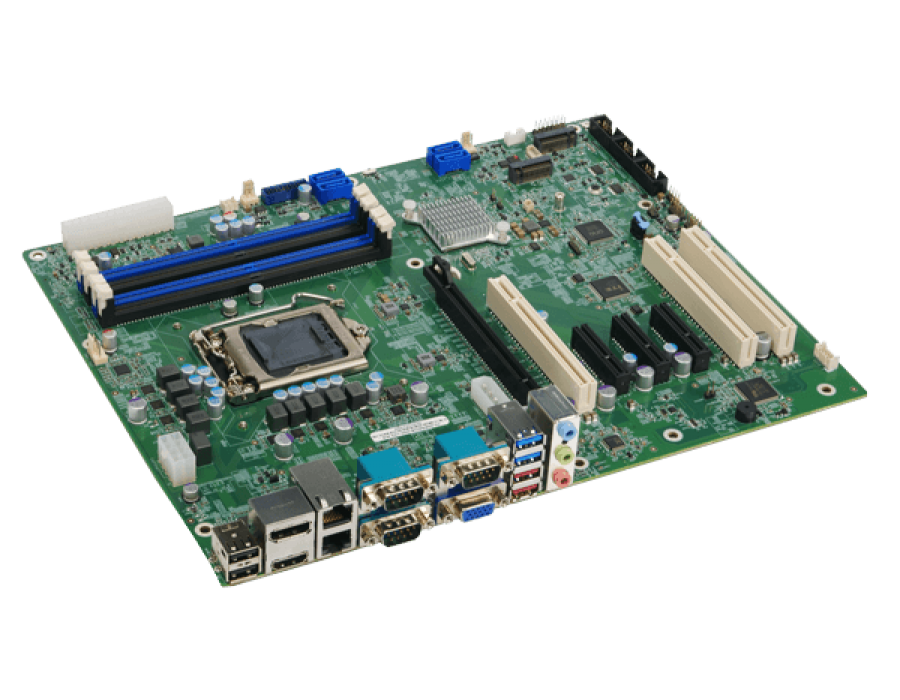

IMBA-Q470-R11 ATX motherboard supports LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
● LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
● Dual-channel DDR4 2933MHz
● Support HDMI, DP, VGA
● Support M.2 A key for WLAN expansion, M key for PCIe NVMe storage
| Form Factor | |
|---|---|
| Form Factor | ATX Motherboard |
| System | |
| CPU | LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor |
| Chipset | Intel® Q470/Q470E |
| Memory | Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB |
| Memory Max. | up to 128GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x3 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 305mm |
| Net Weight | GW:1200g / NW:700g |
| Storage | |
| Storage | 4 x SATA |
| 1 x M.2(NGFF) : 1 x M.2 M Key (2240/2280) with PCIe x4 | |
| I/O Interface | |
| Display Output | 1 x VGA Up to 1920 x 1080 @60Hz |
| 1 x HDMI™ | |
| 1 x Display Port | |
| Ethernet | 2 x LAN : LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225V 2.5GbE controller |
| Audio | 1 x Line in |
| 1 x Line out | |
| 1 x Mic | |
| 1 x Front Audio : 2x5 pin | |
| I/O Interface | 2 x External RS-232 |
| 1 x External RS-422/485 : RS-485 support AFC | |
| 2 x Internal RS-232 : 2x5 pin, P=2.54 | |
| 1 x Internal RS-232/422/485 : 2x5 pin, P=2.54 ,RS-485 support AFC | |
| 2 x External USB 2.0 : Type-A | |
| 2 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A) | |
| 5 x Internal USB 2.0 : 2x4 pin, P=2.54 | |
| 2 x Internal USB 3.2 Gen1x1 : 2x10 pin, p=2.0 | |
| 1 x DIO : 8-bit digital I/O (2x5 pin | |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s（Type-A） | |
| Expansion | 1 x PCIe x16 |
| 3 x PCIe x4 | |
| 3 x PCI Slot | |
| 2 x M.2(NGFF) : 1 x M.2 M-key 2242/2280 (PCIe x4) 1 x M.2 A-key 2230 (PCIe x1 / USB 2.0) |
|
| Power | |
| Power Consumption | 3.3V@1.36A, 5V@14.16A, 12V@7.5A (Intel® Core™ i9-10900E CPU with four 32 GB 3200 MHz DDR4 memory) |
| Power Supply | ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | -30°C – 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
