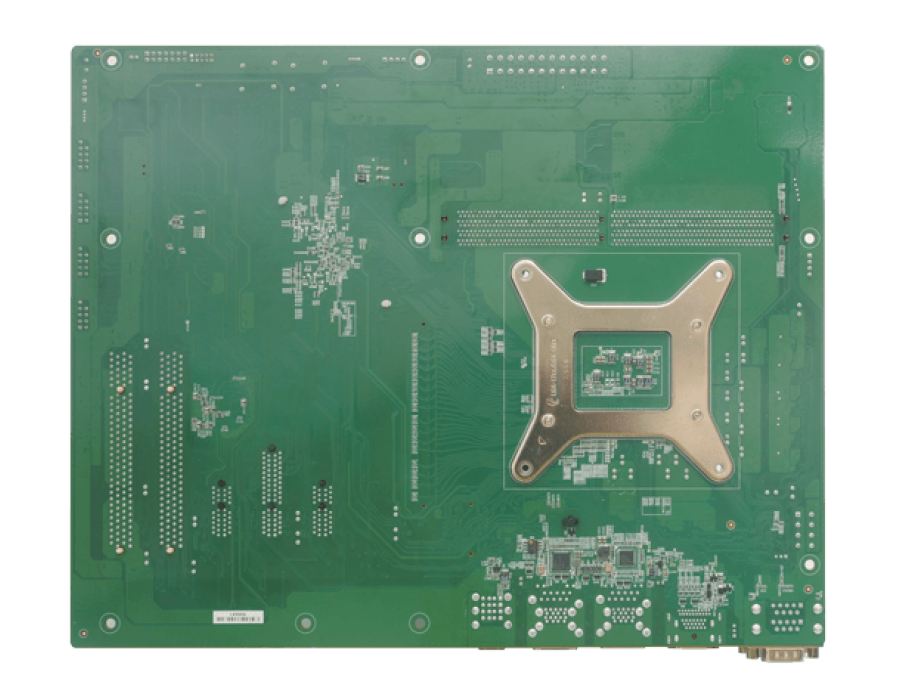

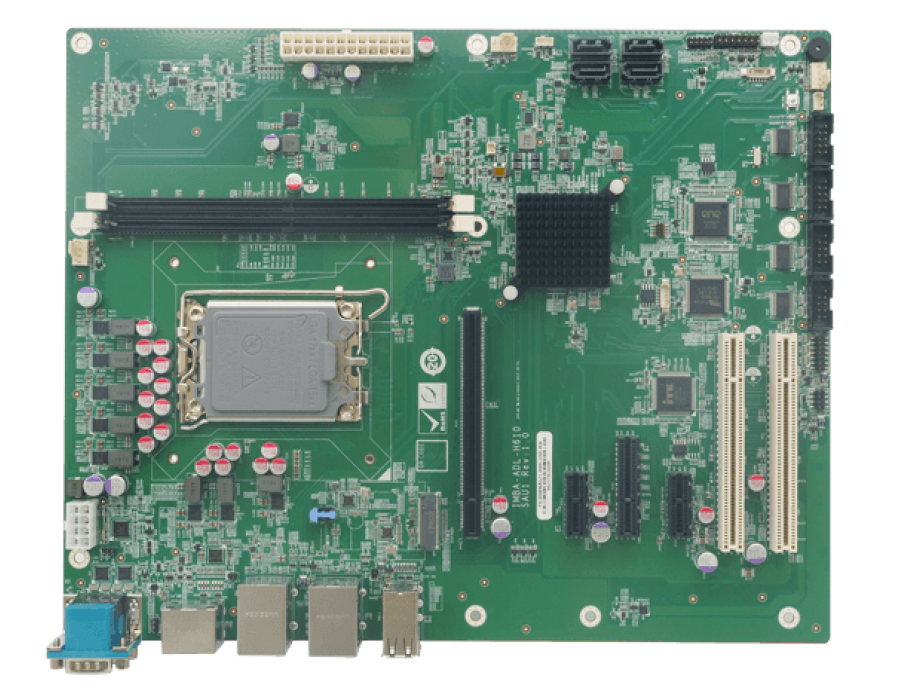

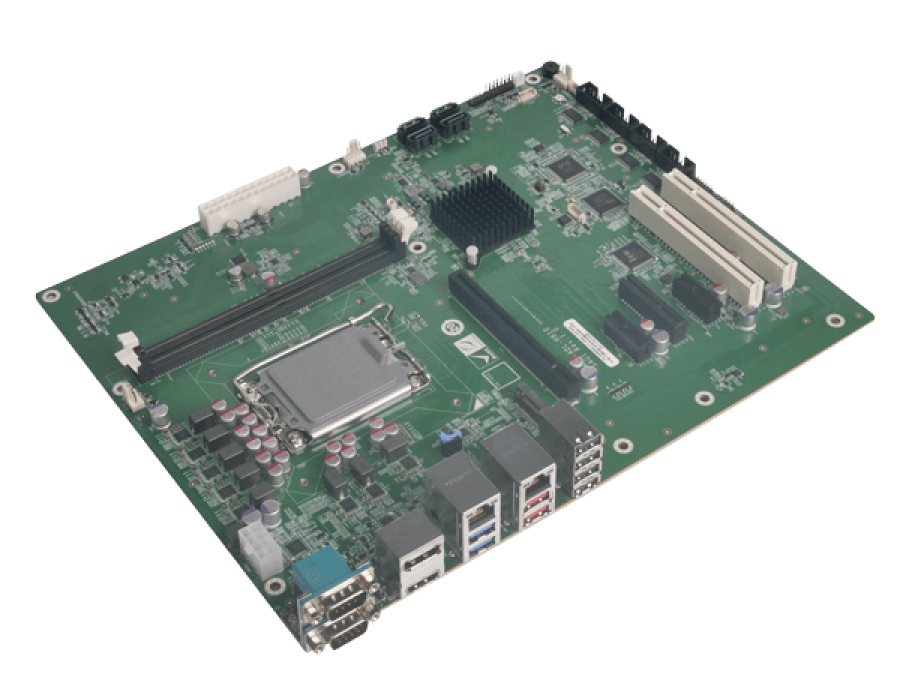

IMBA-ADL-H610-R11 ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual LAN, USB 3.2, SATA 6Gb/s and RoHS
| Form Factor | |
|---|---|
| Form Factor | ATX Motherboard |
| System | |
| CPU | LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU) |
| Chipset | Intel® H610/H610E |
| Memory | Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB |
| Memory Max. | 64GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 305mm |
| Net Weight | 700g |
| Storage | |
| Storage | 4 x SATA |

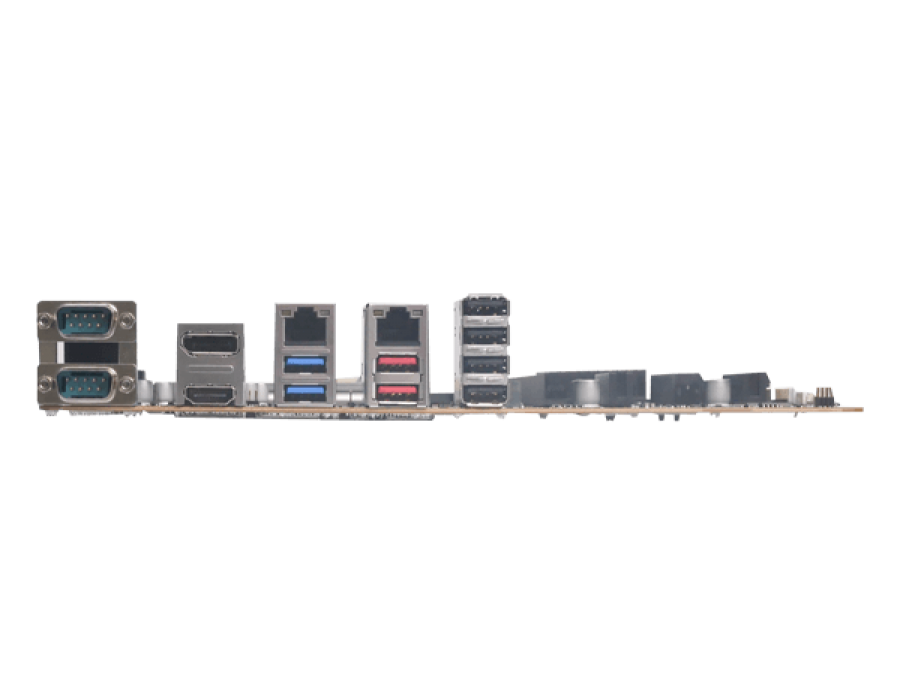

| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4096 x 2304 @30Hz |
| 1 x Display Port : up to 4096 x 2304 @60Hz | |
| 1 x iDPM : support iEi eDP/ LVDS/ VGA module | |
| Ethernet | 2 x LAN - LAN1: Intel® I219 LM controller LAN2: Intel® I225V/I226V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x iAUDIO supports IEI AC-KIT-888S Audio Kit (2x5 pin) |
| I/O Interface | 2 x External RS-232/422/485 : RS-485 support AFC |
| 4 x Internal RS-232 : 2x5 pin, P=2.54 | |
| 4 x External USB 2.0 | |
| 2 x External USB 3.2 Gen1x1 : 5Gb/s (Type A) | |
| 2 x Internal USB 2.0 : 2:x4 pin, P=2.54 | |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s (Type A) | |
| Expansion | 1 x PCIe x16 : Gen4 slot with x16 Signal (**Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storage devices) |
| 1 x PCIe x4 : Gen3 open-end | |
| 2 x PCIe x1 : Gen3 | |
| 2 x PCI Slot | |
| Power | |
| Power Consumption | 3.3V@0.36A, 5V@7.04A, 12V@5.62A, 5VSB@0.7A (Intel® Core™ i7-12700E CPU with two 32 GB 2933 MHz DDR4 memory, EuP mode enabled) |
| Power Supply | ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -30°C~70°C |
| Humidity | 5% ~95%, non-condensing |
