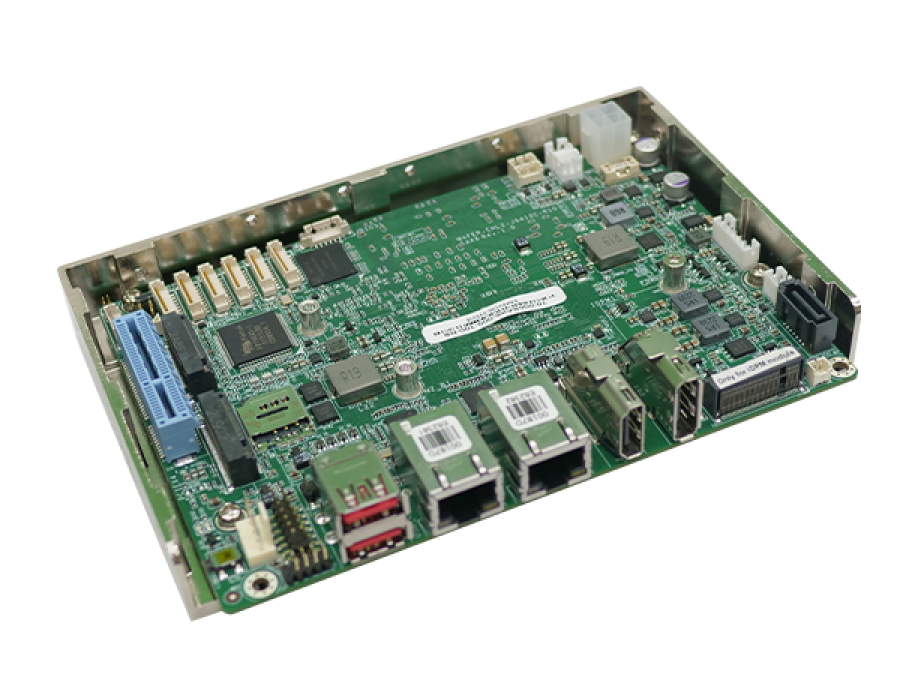

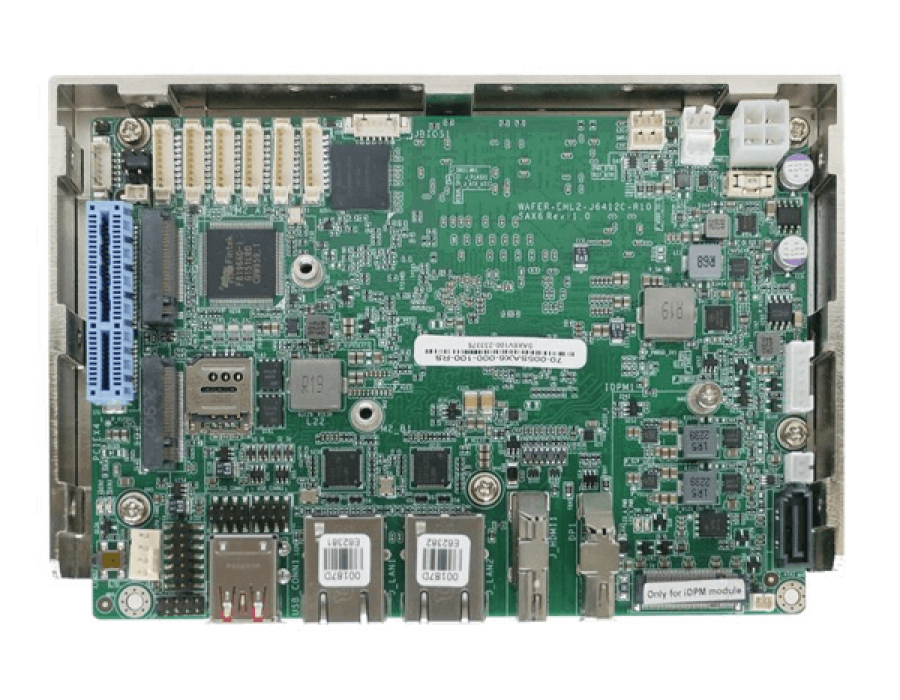

WAFER-EHL2-J6412C-R10 3.5" SBC supports Intel® Celeron® J6412 on-board SoC with 8GB LPDDR4x memory on board default, dual display with HDMI and iDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, 6 COM, iAUDIO, 0°C ~60°C and RoHS
| System | |
|---|---|
| CPU | Onboard Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform) Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W) |
| Memory | Onboard 8GB 3200MHz LPDDR4x, support up to 16GB |
| Memory Max. | up to 16GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 146mm x 102mm |
| Net Weight | GW:850g / NW:350g |
| Storage | |
| Storage | 1 x SATA : 6Gb/s with 5V SATA power connector |

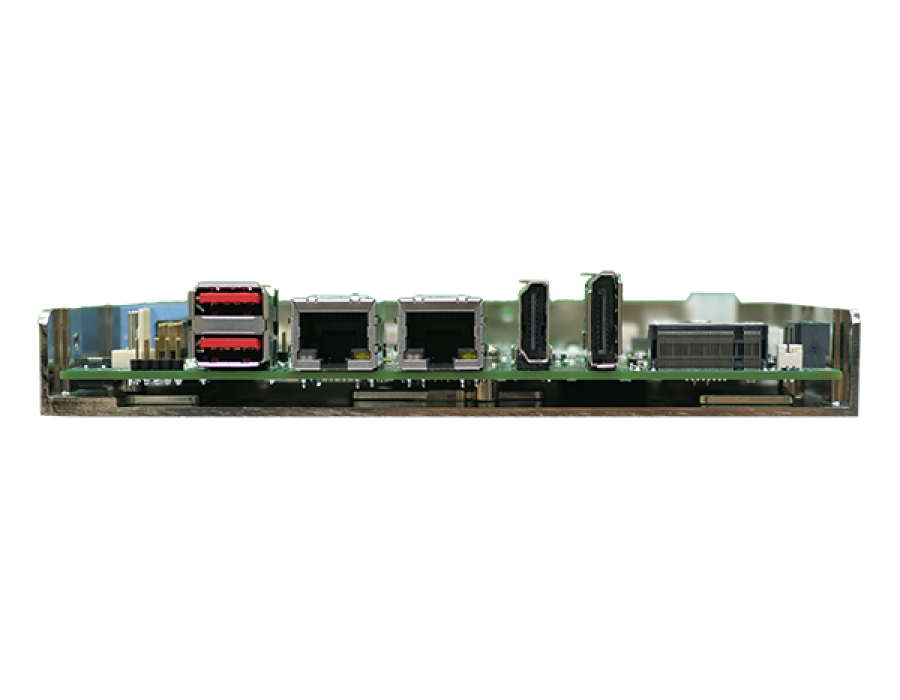

| I/O Interface | |
| Display Output | 1 x Display Port : up to 4096 x 2160 @60Hz |
| 1 x HDMI™ : up to 4096 x 2160 @30Hz | |
| 1 x iDPM : 3040 slot (only for iEi eDP/LVDS/VGA module) | |
| Ethernet | 2 x LAN - LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x iAUDIO, support IEI AC-KIT-888S Audio Module（2 x 5 pin） |
| I/O Interface | 1 x DIO : 12-bit digital I/O (2x7 pin) |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s | |
| 4 x Internal RS-232 1x9 pin, P=1.25 | |
| 2 x Internal RS-232/422/485 1x9 pin, P=1.25 | |
| 4 x Internal USB 2.0 2x4 pin, P=2.00 | |
| Expansion | 2 x M.2(NGFF) - 1 x M.2 A Key for WIFI & BT (2230)(PCIe Gen3 x1/USB 2.0 signal) 1 x M.2 B key (3042/2242) w/ SIM holder (PCIe Gen3 x2/USB 2.0 signal) |
| 1 x PCIe x4 : PCIe Gen3 x2 signal | |
| Power | |
| Power Consumption | 12V@3.24A (Intel® Celeron® J6412 2.0GHz with on-board 8GB 3200MHz LPDDR4 memory and EUP enabled) |
| Power Supply | +12V DC input power (AT/ATX mode) |
