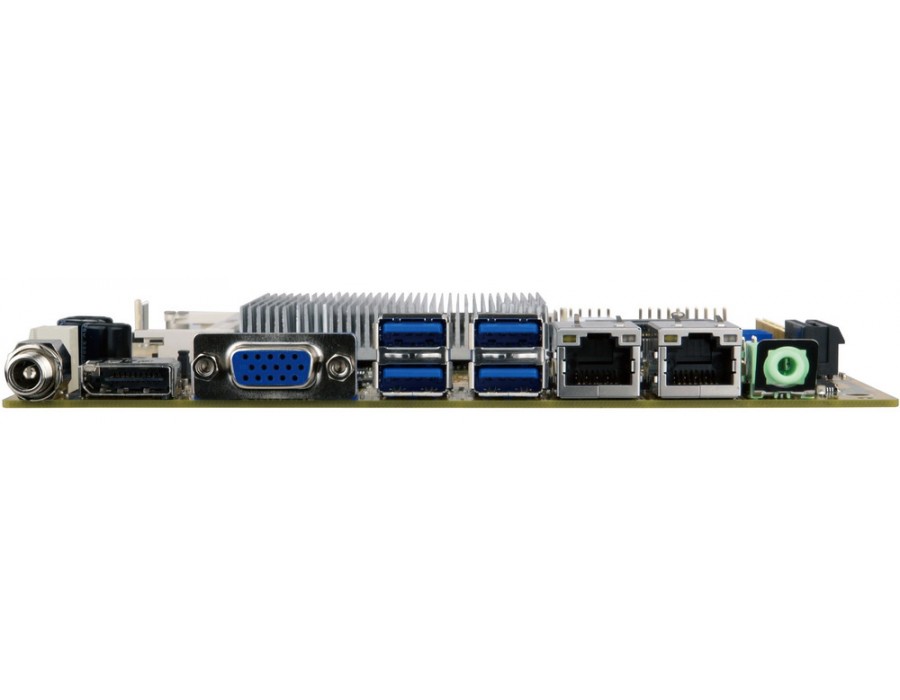

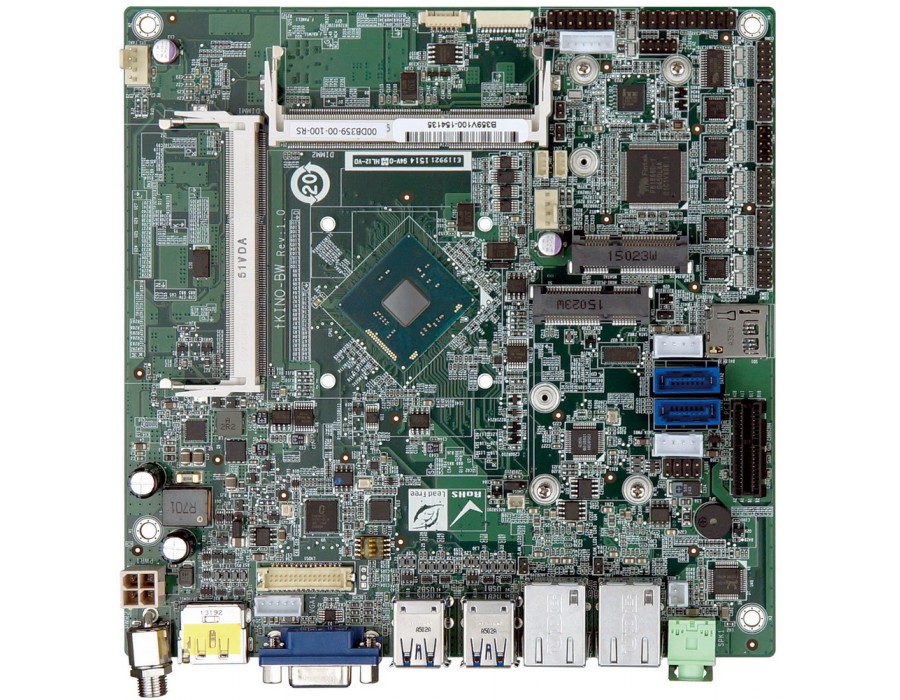

tKINO-BW-N3-R20 - IEI Thin Mini-ITX SBC supports Intel® Celeron® quad-core processor N3160 up to 2.24GHz (6W), VGA/LVDS/DP+HDMI, SATA, dual GbE, USB 3.0, HD Audio and RoHS
| Spec Item | Description |
|---|---|
| Display | |
| Display Output | Triple independent display 1 x HDMI/DP (up to 3840x2160@30Hz) 1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz) 1 x VGA by CH7517 DP to VGA converter (up to 1920x1200@60Hz) |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | -20°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots | 1 x Full-size PCIe Mini card slot 1 x microSD card slot 1 x PCIe x1 |
| I/O Interface | |
| Audio | Realtek ALC662 HD codec 1 x Audio jack (line-out) 1 x Analog audio (2x5 pin) |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin) |
| Ethernet | Dual Realtek RTL8111E PCIe GbE controller |
| I/O Interface | |
| I/O Interface | 2 x Internal USB 2.0 |
| 4 x Internal RS-232 | |
| 4 x USB 3.0 | |
| 1 x KB/MS | |
| 2 x Internal RS-232/422/485 | |
| Power | |
| Power consumption | 12V@1.61A(Intel® Celeron® N3710 CPU with two 4 GB 1600 MHz DDR3L memory) |
| System | |
| CPU | Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W) Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W) Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W) Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W) |
| Memory Max. | Two 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slots support up to 8 GB |
