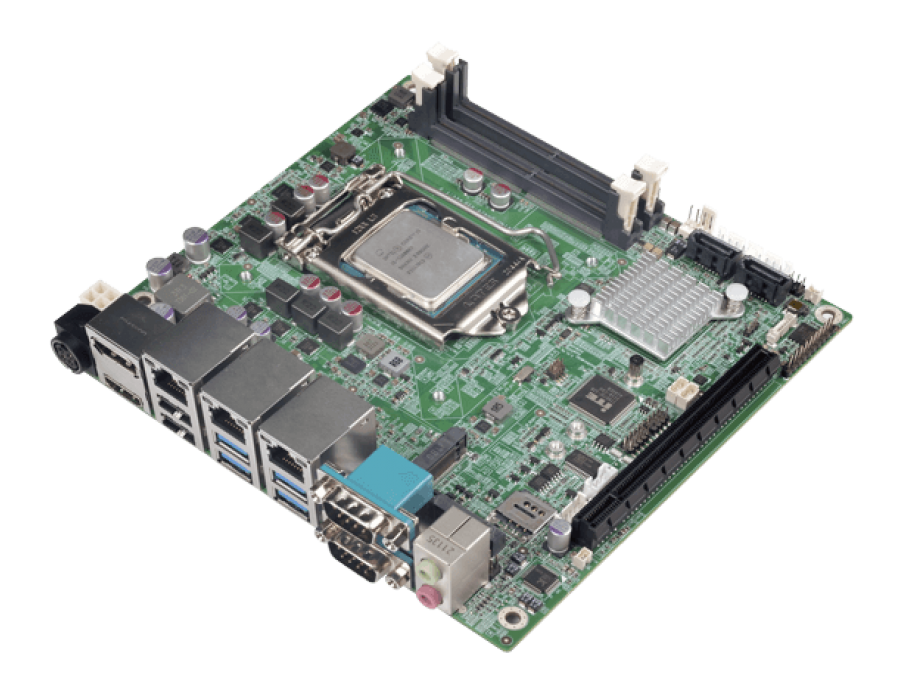

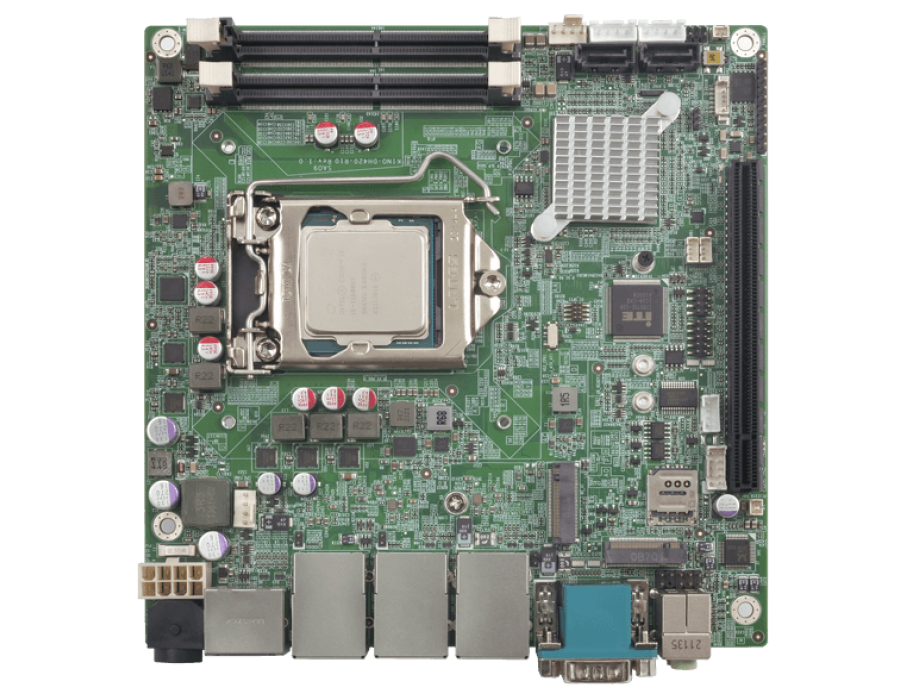

KINO-DH420-R11 Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, triple 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
| Form Factor | |
|---|---|
| Form Factor | Mini-ITX Motherboard |
| System | |
| CPU | LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor |
| Chipset | Intel® H420E |
| Memory | Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB |
| Memory Max. | up to 64GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 170mm x 170mm |
| Net Weight | 400g |
| Storage | |
| Storage | 2 x SATA : 6Gb/s (no RAID) |
| 1 x M.2(NGFF) : B key (support NVME storage) | |

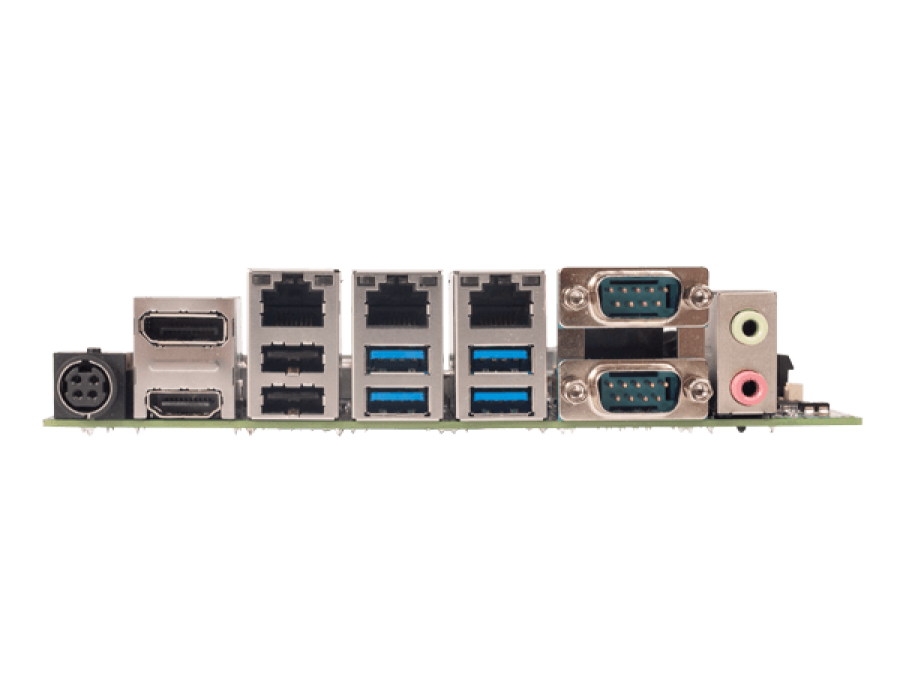

| I/O Interface | |
| Display Output | 1 x HDMI™ up to 4096 x 2160 @30Hz |
| 1 x Display Port up to 4096 x 2304 @60Hz | |
| Ethernet | 3 x LAN - LAN1: Intel® i225LM GbE controller (colay i225v) LAN2: Intel® i225v GbE controller (colay i225LM) LAN3: Intel® i225v GbE controller (colay i225LM) |
| Audio | 1 x Line out |
| 1 x Mic | |
| 1 x Front Audio : 2x5 pin | |
| 1 x HD Audio : Realtek ALC888S HD codec | |
| I/O Interface | 2 x External RS-232 |
| 1 x Internal RS-232 : 2x5 pin, P=2.00 | |
| 1 x Internal RS-422/485 : RS-485 support AFC | |
| 2 x External USB 2.0 : Type-A | |
| 4 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A) | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.00 | |
| 1 x DIO : 8-bit digital I/O (2x5 pin) | |
| Expansion | 1 x PCIe x16 |
| 2 x M.2(NGFF) - 1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0) 1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2/USB 2.0) |
|
