IMBA-H810-ECO-R10 - IEI industrial motherboard, LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81, DDR3, VGA/DVI-D/ iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, ECO packing and RoHS
● 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
● Dual-channel DDR3 1333/1600 MHz support up to 16GB
● Intel® HD Graphics technology integrates high-performance graphics and media processing
● USB 3.0, and SATA supported
● TPM V1.2 hardware security function supported by TPM module
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| CPU | LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor supported |
| System Chipset | Intel® H81 |
| BIOS | UEFI |
| System Memory | Two 240-pin 1333/1600 MHz Dual-Channel DDR3 SDRAM Unbuffered DIMM supported (system max. 16GB) |
| Ethernet | LAN1: Intel® I217-LM with Intel® AMT9.0 support LAN2: Intel® I211-AT PCIe Controller |
| I/O Interface | 1 x IR (1x5 pin) 1 x KB/MS (1x6 pin) 1 x LPT (2x13 pin) 1 x PS/2 1 x RS-422/485 (1x4 pin, P=2.0) 1 x USB 2.0 (180 degree type A) 2 x RS-232 2 x SATA 3Gb/s (SATA3, SATA4) (Red) 2 x SATA 6Gb/s (SATA1, SATA2) (H81 supports AHCI, no RAID) (Blue) 2 x USB 2.0 2 x USB 3.0 3 x RS-232 (2x5 pin, P=2.54) 4 x USB 2.0 (2x4 pin, P=2.54) |
| Digital I/O | 8-bit digital I/O (2x5 pin) |
| TPM | 1 x TPM (2x10 pin) |
| SMBus | 1 x SMBus (1x4 pin) |
| Audio | Support 5.1 channel HD Audio by ALC662 (2x5 pin) |
| Expansion | 1 x PCIe x16 2 x PCIe x1 1 x PCIe Mini 4 x PCI 1 x mSATA (share with SATA4) |
| Watchdog Timer | Software Programmable support 1~255 sec. System reset |
| Power Supply | ATX power supply, ATX/AT mode support |
| Power Consumption | 3.3V@0.83A, 5V@2.2A, 12V@3.88A, 5VSB@0.3A (Intel® Core™ i7-4770K 3.90GHz CPU with 8GB (two 4 GB) 1333MHz DDR3 memory) |
| Graphic | Intel® HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2 Full MPEG2, VC1, AVC Decode |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |

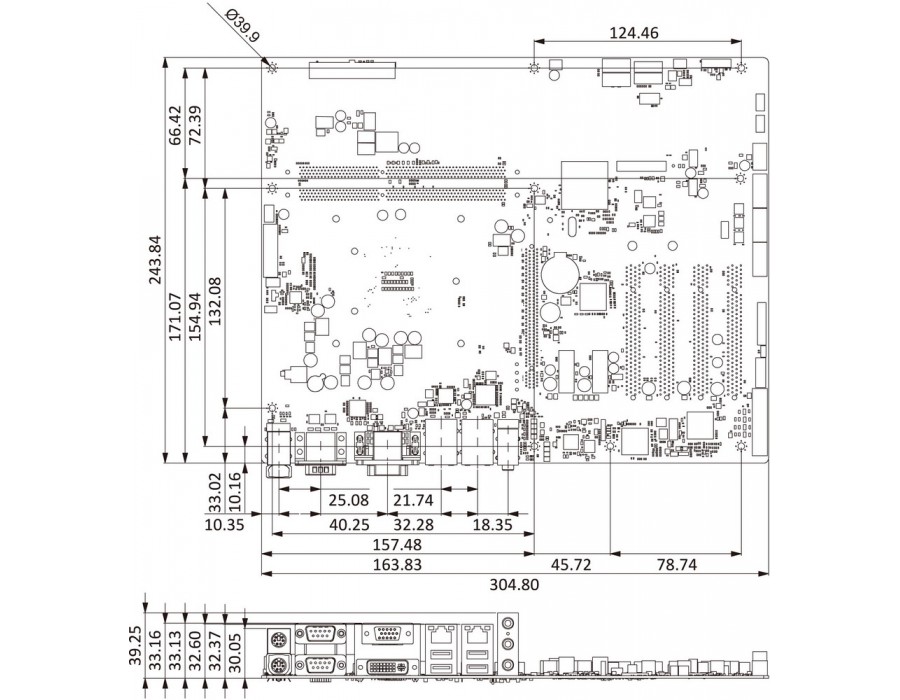

| Dimensions | 244 mm x 305 mm |
| Weight | GW: 1200g, NW: 700g |
| Front Panel | 1 x Front panel (2x7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button) |
| I2C | 1 x I²C (1x4 pin) |
| Fan Connector | 1 x CPU smart fan (1x4 pin) 1 x System smart fan (1x3 pin) |
| LAN LED | 2 x LAN LED (1x2 pin) |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
