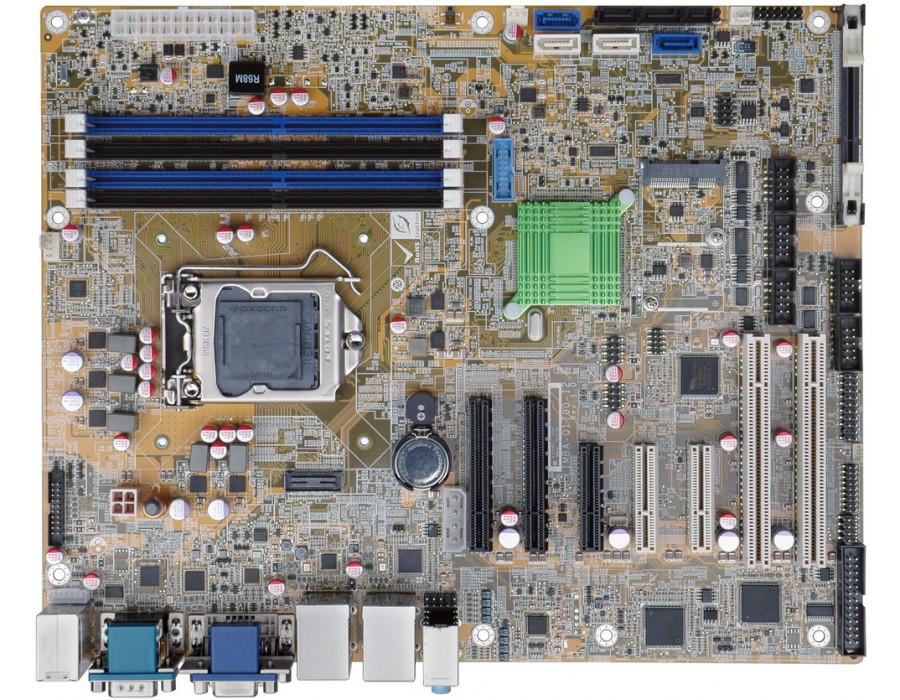

IMBA-C2360-i2-R10 - IEI ATX Motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5,Core™ i3, Pentium®, Celeron®per Intel®C236, DDR4, triple Independent displays VGA/DVI-D/ HDMI 2.0,Dual Intel®GbE, USB 3.0, SATA 6Gb/s, HD Audio, IPMI2.0 and RoHS
● LGA1151 6th generation Intel® Xeon® E3-1200, Core™ i3, Pentium® and Celeron® processor supported
● Dual-channel DDR4 2133 MHz
● Intel® PCIe GbE with Intel® AMT11.0 support
● Support independent triple display with HDMI, DVI and VGA
● Support PCI Express generation 3.0 at 8GT/s I/O bandwidth
● USB 3.0 and SATA 6Gb/s
● Support IPMI 2.0 via iRIS-2400
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| CPU | LGA1151 6th generation Intel® Xeon® E3-1200 v5, Core™ i3, Pentium® and Celeron® processor |
| System Chipset | Intel® C236 |
| BIOS | UEFI BIOS |
| System Memory | Intel® HD Graphics Gen 9 engine with 16 low-power execution units, supports DX11/12, OpenGL 4.3/4.4 and OpenCL2.x, ES 2.0 |
| Ethernet | LAN1: Intel® I210 PCIe controller LAN2: Intel® I219LM PCIe with Intel® AMT 11.0 support |
| I/O Interface | 2x USB 2.0 4 x USB 3.0 1 x KB/MS (1x6 pin) 1 x USB 2.0 (Type A) 1 x LPT (2x13 pin, P=2.54) 1 x USB 3.0 (2x10 pin, P=2.0) 1 x mSATA (colay SATA2) 4 x USB 2.0 (2x4 pin, P=2.0) 2 x RS-232/422/485 (2x5 pin, P=2.54) 4 x RS-232 (2x5 pin, P=2.00) 6 x SATA 6Gb/s (RAID 0/1/5/10 support) |
| Digital I/O | 8-bit Digital I/O (2 x 5 pin) |
| Super I/O | Fintek F81866 |
| TPM | 1 x TPM connector (2x10 pin) |
| SMBus | 1 x 4 pin |
| Audio | Realtek ALC662 HD codec supports 5.1-channel 3 x Audio jacks (line-out, line-in, mic-in) on rear IO 1 x Front audio (2x5 pin) |
| Display Interfaces | Triple independent display 1 x VGA (up to 1920x1200@60Hz) 1 x DVI-D (up to 2560x1600@60Hz) 1 x HDMI 2.0 (up to 4096x2160@60Hz) 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) |
| Expansion | 1 x Full-size PCIe Mini card slot 2 x PCIe x8 slot (Gen3) 2 x PCI slot 3 x PCIe x4 slot (Gen3) |
| Watchdog Timer | Software programmable support 1~255 sec. system reset |
| Power Supply | ATX/AT Power Supply |
| Power Consumption | 3.3V@1.51A, 5V@3.31A, 12V@9.02A, 5VSB@3.7A (Intel® Xeon® E3-1275 v5 3.60GHz CPU with 32 GB (four 8GB) 2133 MHz DDR4 memory) |
| Graphic | Intel® HD Graphics Gen 9 engine with 16 low-power execution units, supports DX11/12, OpenGL 4.3/4.4 and OpenCL2.x, ES 2.0 |
| Front Panel | 1 x Front panel (2x7 pin, power LED, HDD LED, speaker, power button, reset button) |
| I2C | 1 x 4 pin wafer |
| Front Audio | 1 x Front audio (2x5 pin) |
| Fan Connector | 1 x 4-pin CPU smart fan 1 x 4-pin system smart fan |
| iRIS Remote Management Module | 1 x iRIS-2400 slot |
| LAN LED | 2 x LAN LED (1x2 pin) |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Dimensions | 244mm x 305mm |
| Weight | GW:1200g, NW: 700g |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
