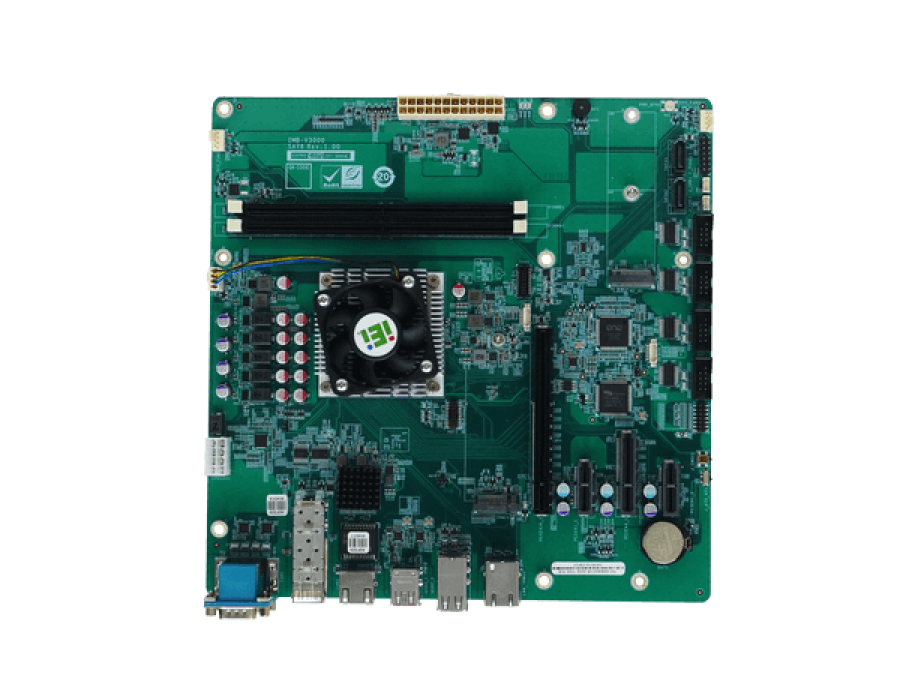

IMB-V3000-C48-R10 micro-ATX motherboard supports AMD V3000 series V3C48 processor, DDR5, dual 10GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
| Form Factor | |
|---|---|
| Form Factor | Micro-ATX |
| System | |
| CPU | AMD V3000 Series Processors |
| Memory | Two 288-pin 4800 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs |
| Memory Max. | 96GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 2 x System fan connector (1x 4 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244mm x 244mm |
| Net Weight | GW: 1200g / NW: 700g |
| Storage | |
| Storage | 2 x SATA : 6Gb/s (RAID 0/1 supported) |
| I/O Interface | |
| Ethernet | 2 x LAN - LAN1: 10GbE SFI (SFP+) LAN2: 10GbE ASE-T (RJ45) |
| I/O Interface | 2 x External RS-232/422/485 : RS-485 support AFC |
| 4 x Internal RS-232 : 2x5 pin, P=2.54 | |
| 4 x External USB 2.0 : Type-A | |
| 1 x DIO : 12-bit digital I/O (2x7 pin) | |
| 2 x External USB 3.2 Gen2x1 : Type-A, 10Gb/s | |
| Expansion | 1 x PCIe x16 : PCIe Gen4 x16 (Slot1) with x8 Signal |
| 1 x PCIe x4 : PCIe Gen4 x4 open-end | |
| 2 x PCIe x1 : PCIe Gen4 x1 | |
| 2 x M.2(NGFF) - 1 x M.2 M Key (2242/2280, PCIe Gen4 x1) support NVMe 1 x M.2 B Key (2242/2280, PCIe Gen4 x1) support NVMe (IPMI) |
|
| Power | |
| Power Consumption | 3.3V @ 0.63A, 5V @ 2.45A, 12V @ 4.15A, 5VSB @ 0.32A(AMD embedded v3c48 processor with DDR5 4800MT/s U-DIMM 32GB memory, EuP mode enabled) |
| Power Supply | ATX/AT power supply Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
