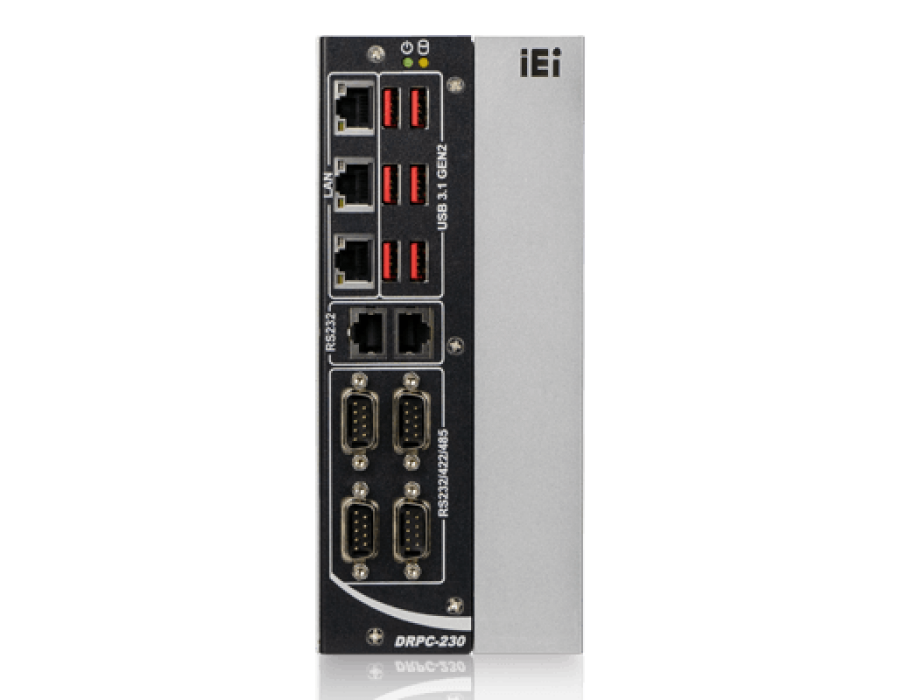

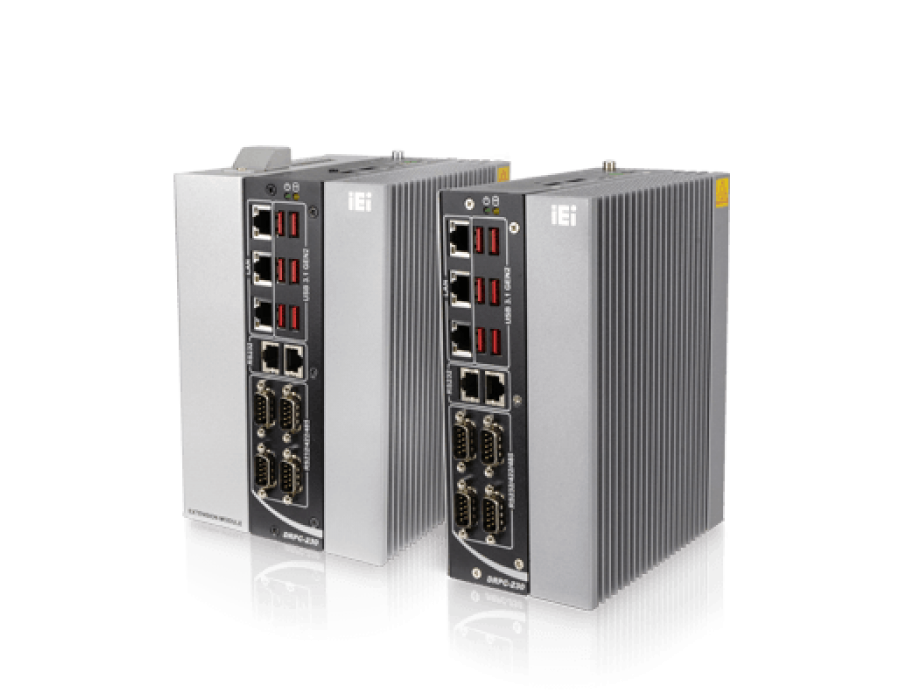

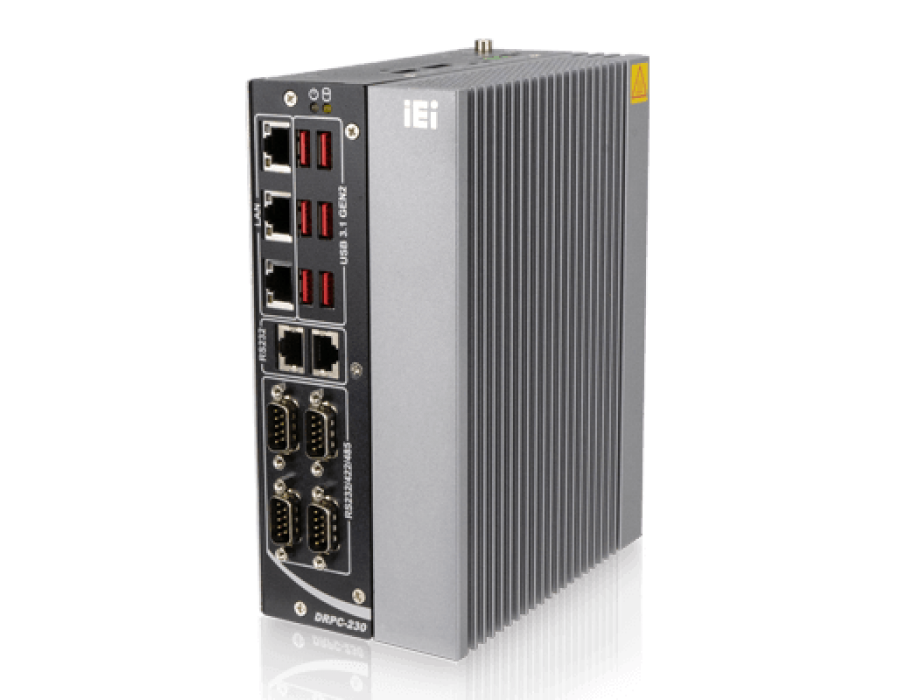

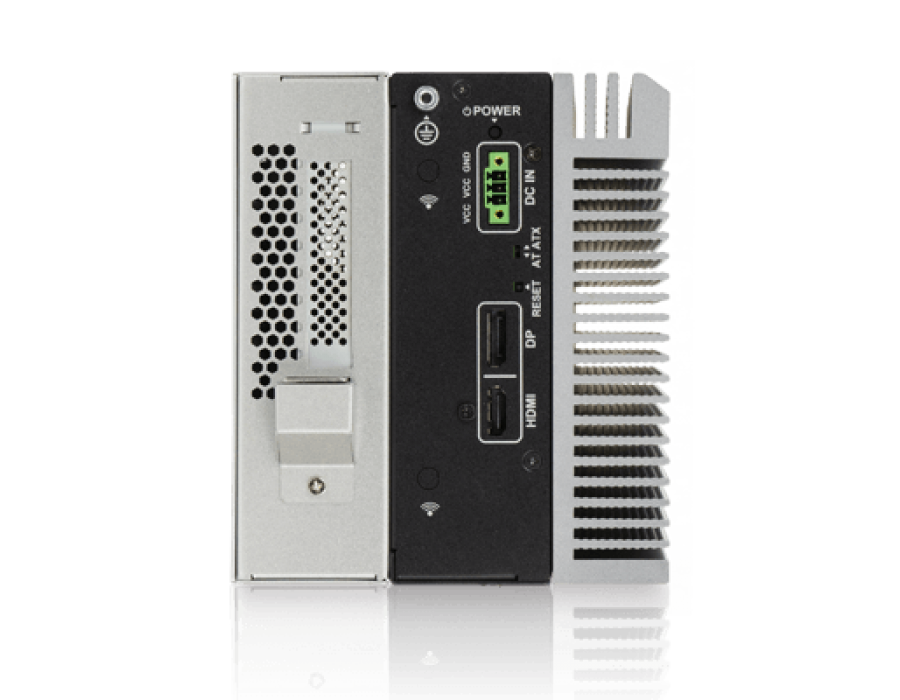

DRPC-230-ULT5-i5/8G-R10 - IEI Fanless embedded system, Intel®Whiskey Lake i5-8365UE 1.6GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP, 3 PCIe GbE, 6 COM, 12~24V DC, PCIex4 extension layer and RoHS
| Spec Item | Description |
|---|---|
| Form factor | |
| SBC Form Factor | ●CPU: Intel® Whiskey Lake Core™ i5-8365UE Intel® Whiskey Lake Celeron™ 4205U ●Chipset: SoC ●System Memory: 2 x DDR4 2400Hz SO-DIMM (up to 32GB) ●Power: Input : 3-pin terminal block: 12 V ~ 24 V DC Consumption: 12V @ 4.98 A (Intel® Core™ i5-8365UE CPU with 8GB 2400 MHz DDR4 memory) ●Reliability: Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis, IEC68-2-27 Operating Vibration: MIL-STD-810G 514.6C-1 (SSD) Safety/EMC - CE/FCC |
| I/O Interface | |
| I/O Ports | ●6 x USB 3.2 Gen2 (DRPC-230-ULT5-C/8G/S-R10 has 4 x USB 3.2 Gen2 & 2 x USB 2.0) ●Ethernet: 3 x RJ-45 2 x PCIe GbE by Intel® I211 controller 1 x PCIe GbE by Intel® I219 controller ●COM Port: 4 x RS-232/422/485 with AFC (DB-9) 2 x RS-232 (RJ45) ●Digital I/O: 8-bit digital I/O , 4-bit input / 4-bit ●Display: 1 x HDMI 1.4b (lockable) 1 x DP ●TPM: 1 x TPM 2.0 (optional) |
| Expansion Slots | |
| Expansion Slots | ●M.2: 1 x 2230 A key (PCIe/ USB2.0) Celeron SKU: 1 x 2230 A key (PCIe) ●PCIe Mini: 1 x Full-size (PCIe/ USB 3.0/ SATA) ●Backplane: 1 x PCIe by 4 (Expansion SKU only) |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 1 x 2.5” SATA 6Gb/s HDD/SSD bay |
| Indicator&Buttons | |
| Buttons | 1 x Power button 1 x Reset button 1 x AT/ATX switch |
| Indicators | 1 x Power LED 1 x HDD LED |
| Physical Characteristics | |
| Construction | Extruded aluminum alloy |
| Color | |
| Color | Black + Silver |
| Dimensions | |
| Dimensions | 190 x 150 x 81 mm 190 x 150 x 127 mm (Expansion SKU) |
| Weight | |
| Weight | 2.9KG/ 3.2KG 3.2KG/ 3.5KG (Expansion SKU) |
| Environment | |
| Operating Temperature | -20 ~ 60°C with air flow (SSD) |
| Humidity | 10 ~ 95% non condensing |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
