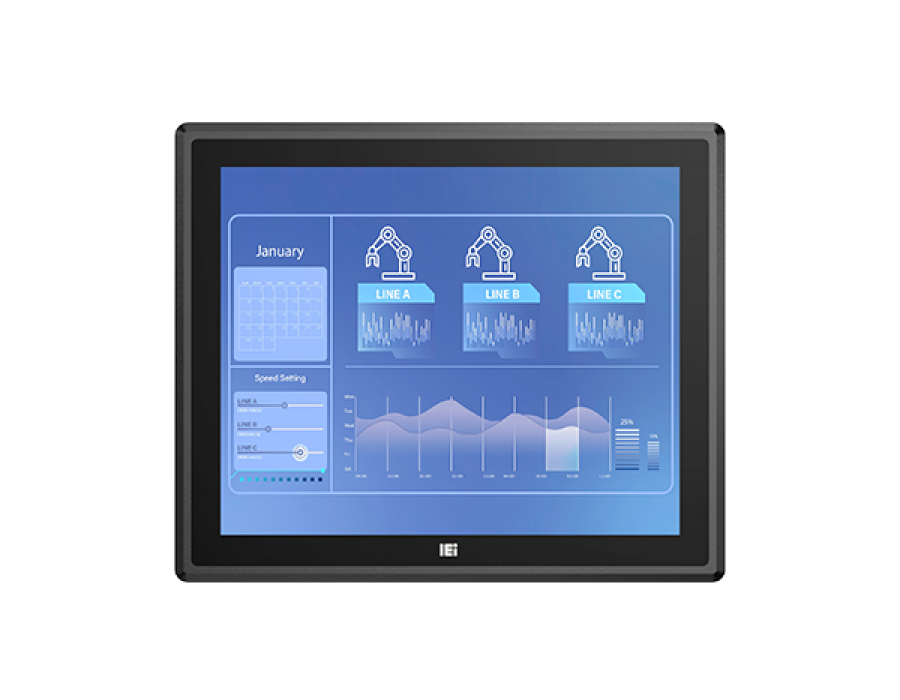

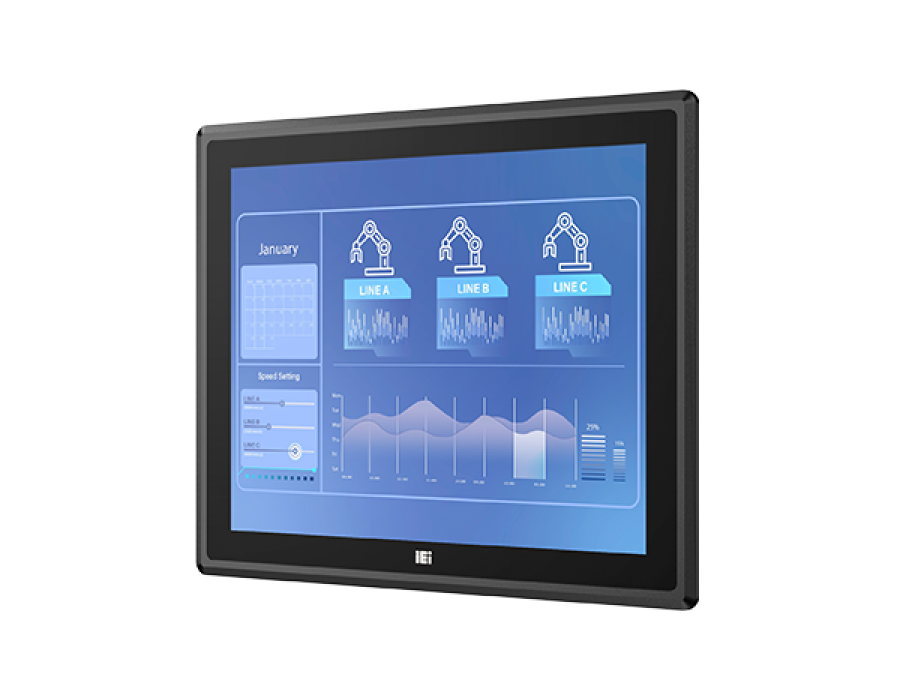

PPC2-C170-ADLP-i5/8G-R10 - 17" 350cd/m² 1280x1024 Fanless Panel PC with 12th Generation Intel® Core™ i5-1240P on-board Processor, TDP 28W, 8GB LPDDR4x on-board, PCAP touch, 12V DC, R10
| System | |
|---|---|
| CPU | 12th Genertion Intel® Alder Lake-P Core™ i7/i5/i3 Processor |
| Memory Ext. | Dual channel On board LPDDR4x 8G |
| I/O Interface | |
| Ethernet | LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225-LM 2.5GbE controller (Intel AMT) |
| Expansion | 1 x M.2 M key 2242 (PCIe Gen4 x4) 1 x M.2 M key 2280 (PCIe Gen4 x4) 1 x M.2 E key 2230 (PCIe + USB signal) |
| Audio Codec | Realtek ALC888S |
| Power | |
| Input | 12V DC |
| Power adapter | 84W Power adapter |
| Environment | |
| Operating Temperature | -10°C ~ 50°C |
| Safety & EMC | CE/EMC, FCC, UKCA |
| Humidity | 10% ~ 95%@40°C, non-condensing |
| Storage Temperature | -20°C ~ 70°C |
| IP Level | Front panel IP65 |
| Physical Characteristics | |
| Color | Black |
| Mounting | VESA 100, Panel, Wall, Rack, Stand and Arm |
| Construction | Aluminum die casting + SECC |
| LCD | |
| Size | 17” (5:4) |
| Resolution | 1280 (W) x 1024 (H) |
| Brightness (cd/m2) | 350 cd/m² |
| Contrast Ratio | 800:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.26 x 0.26 |
| Viewing Angle (H-V) | 170°/160° |
| Backlight MTBF | 50,000 hours |
| Touch | |
| Touch Screen | PCAP with USB interface (anti-UV/AG coating) |
| Touch Controller | EETI EXC 81 Series |
| Other Features | |
| System Cooling | Fanless |
| TPM | Intel® Platform Trust Technology |

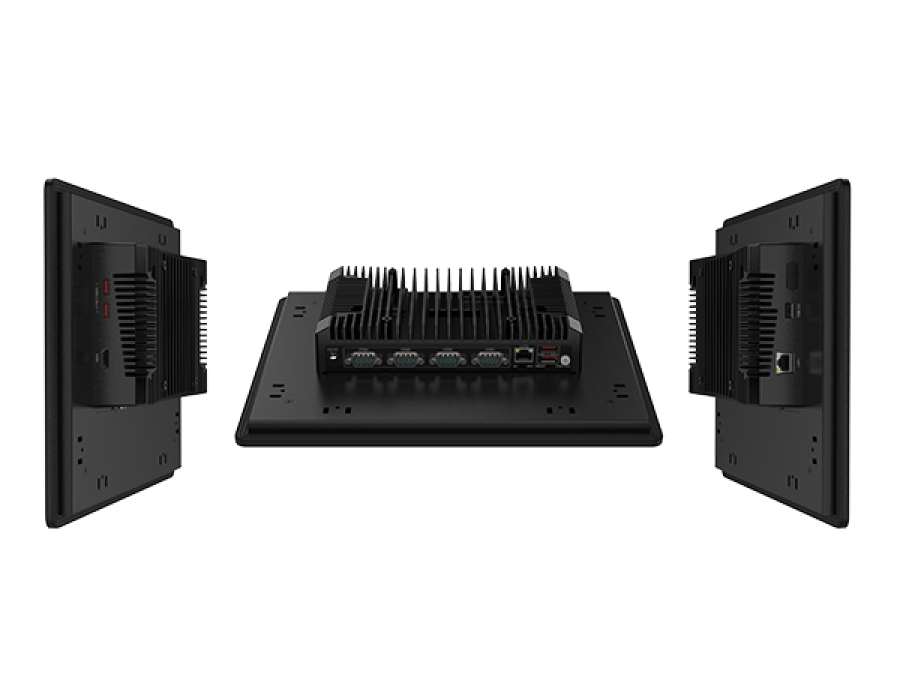

| I/O Interface | |
| I/O Interface | 1 x AT/ATX switch |
| 1 x DC Input Jack (12V) | |
| 1 x HDMI™ | |
| 2 x LAN (2.5GbE) | |
| 1 x Reset Button | |
| 2 x RS-232 (by DB9) | |
| 2 x RS-232/422/485 (by DB9) | |
| 1 x USB 2.0 | |
| 2 x USB 3.2 Gen1x1 | |
| 2 x USB 3.2 Gen2 | |
| OS Support | |
| OS Support | Windows 10/11 IoT, Linux |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
