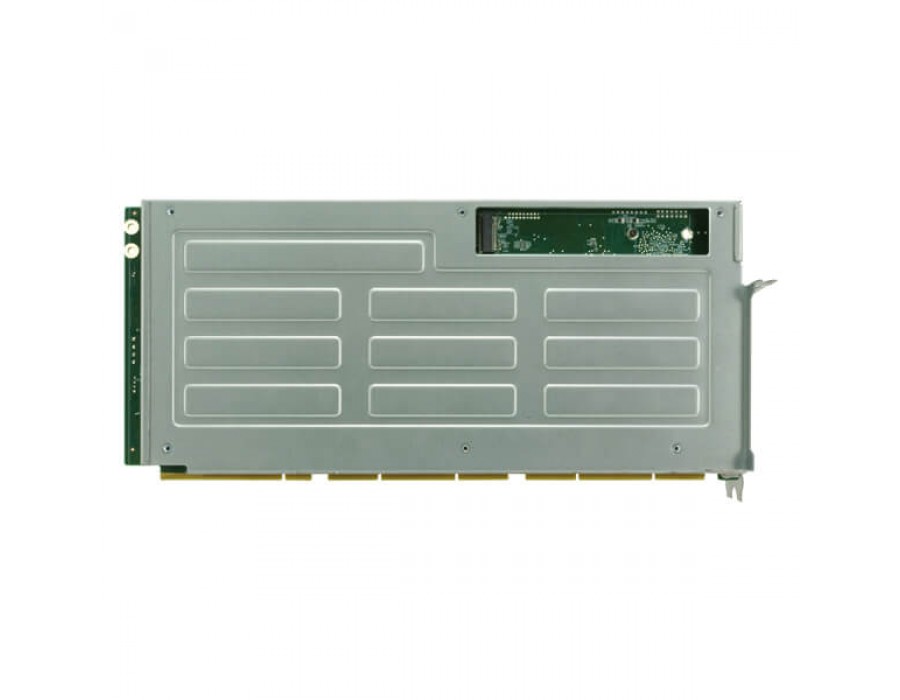

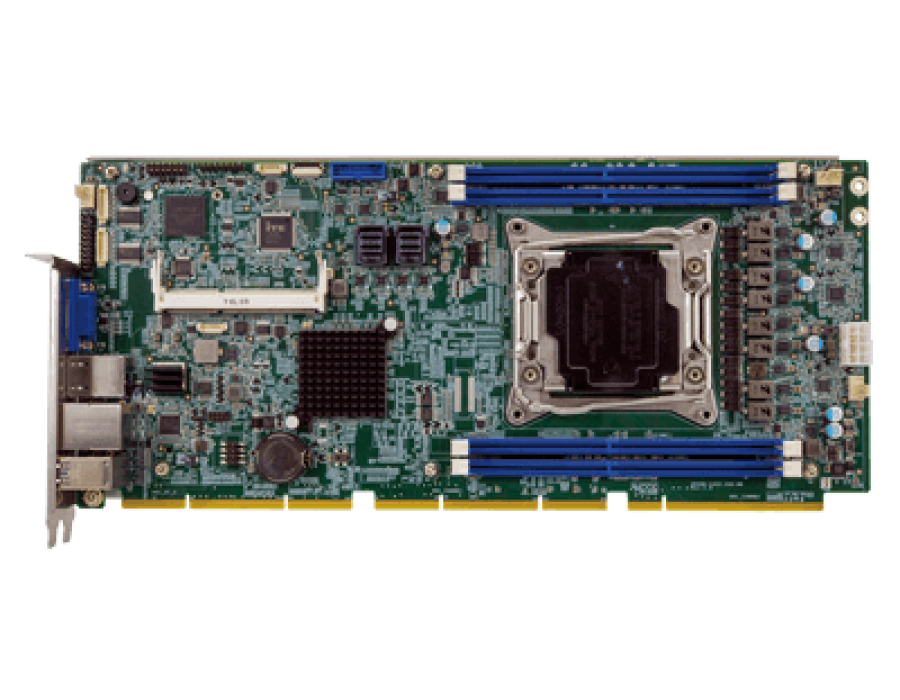

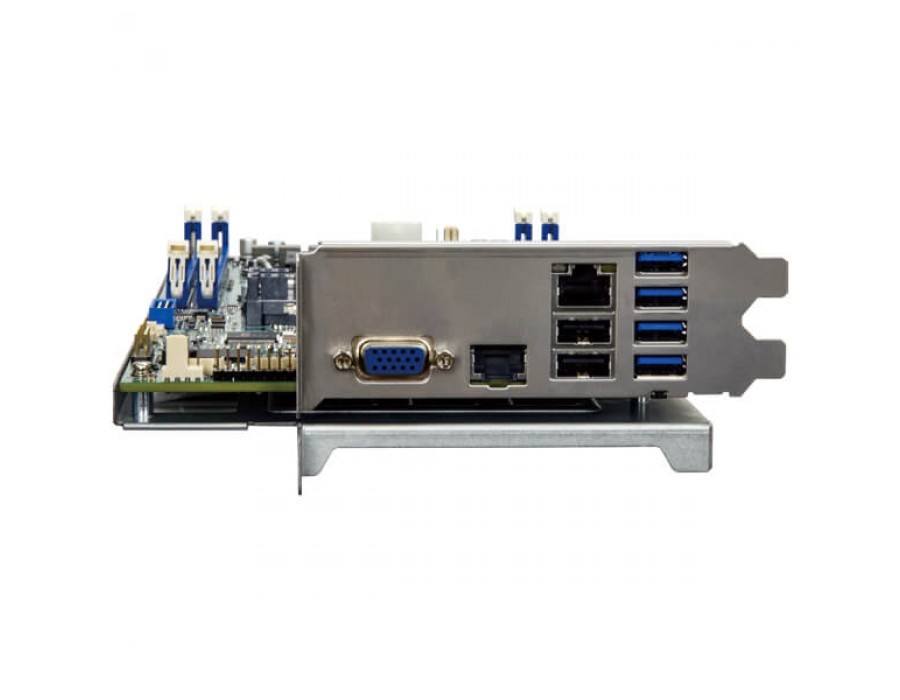

PEMUX-XEW1-R10 - IEI Full-size PEMUX CPU Card supports LGA-2066 Intel® Xeon® W processor, Intel® C422 chipset, DDR4 R-DIMM and LR-DIMM supported, IPMI VGA output, Intel® PCIe GbE, Aquantia 10GbE, USB3.0, USB2.0, SATA 6Gb/s(with mini SAS connector), and RoHS
● PEMUX full-size server / graphic grade solution
● LGA2066 Intel® Haswell processor supported
● Four 288-pin Dual-Channel DDR4 ECC RDIMM/LRDIMM supports up to 256GB
● Supports IPMI VGA display.
● Supports M.2 2280 SSD
● Intel® PCIe GbE Intel® i210-AT with NCSI support
● Aquantia AQC107 10 GbE NIC
● Supports RAID function via SATA 6Gb/s
● TPM V2.0 hardware security function supported by TPM module
| Spec Item | Description |
|---|---|
| Display | |
| Display Output | 1 x VGA (up to 1920x1200@60 Hz) |
| System | |
| CPU | LGA2066 socket supports Intel® Xeon W processor |
| Chipset | Intel® C422 |
| Memory Max. | Four 288-pin Dual-Channel DDR4 ECC RDIMM/LRDIMM supported up to 256GB |
| CPU Socket | LGA2066 |
| I/O Interface | |
| Ethernet | LAN1: 1 GbE NIC: Intel® i210-AT with NCSI support LAN2: 10 GbE NIC: Aquantia AQC107 |
| Audio | Support 7.1 channel HD audio by IEI AC-KIT-892HD kit |
| Expansion | 1 x M.2 M key 56 lanes PCIe signal via golden finger |
| I/O Interface | |
| I/O Interface | 2 x Ethernet |
| 1 x Front panel | |
| 2 x Internal RS-232 | |
| 2 x Internal USB 2.0 | |
| 2 x LAN LED | |
| 8 x SATA 6Gb/s | |
| 2 x USB 2.0 | |
| 4 x USB 3.0 | |
| Environment | |
| Operating Temperature | -20°C ~ 40°C |
| Humidity | 5% ~ 95%, non-condensing |
| Option | |
| iRIS | Yes |
| Storage | |
| Storage | 8 x SATA (SATA 6Gb/s) via mini SAS HD(SFF-8643) |
| Dimensions | |
| Dimensions | 338.58 mm x 150.5 mm |
| Watchdog Timer | |
| Watchdog Timer | Software programmable support 1~255 sec. system reset |
| BIOS | |
| BIOS | AMI UEFI BIOS |
