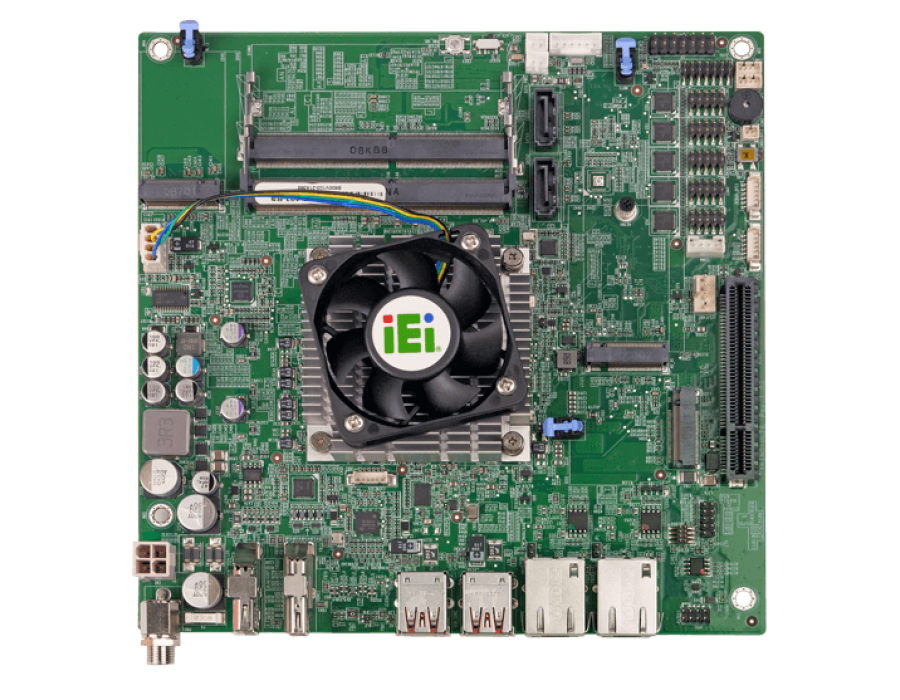

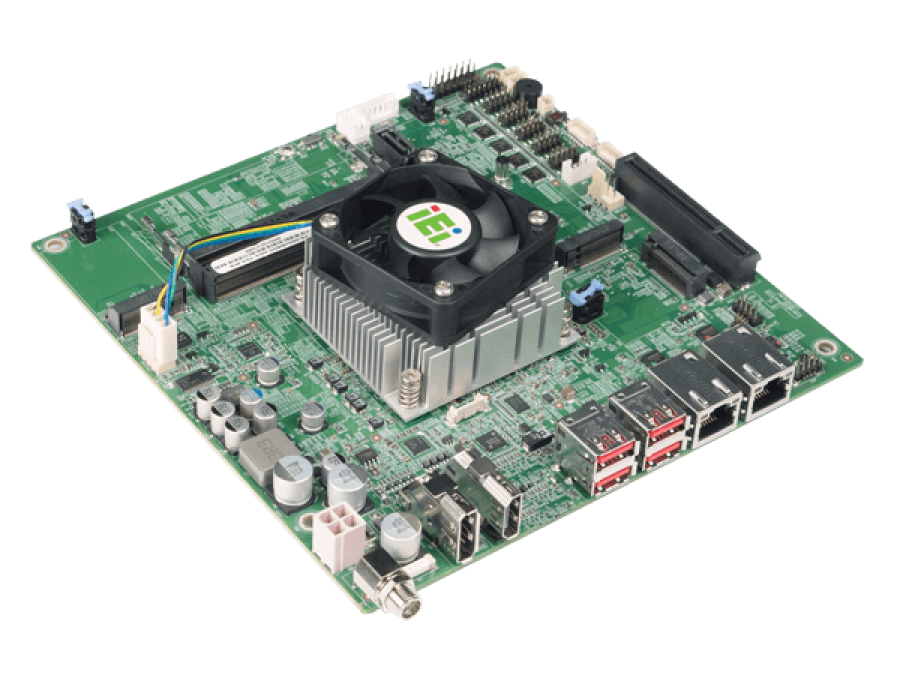

KINO-TGL-U-i3-R11 Mini-ITX SBC with Intel® Tiger Lake-UP3 Core™ i3-1115G4E Proccessor,DDR4 SO-DIMM,9~36V DC input,Quad Display,SATA,Dual Intel® 2.5GbE,USB3.2,M.2,SoC,RoHS
1. Mini-ITX SBC supports Intel® Tiger Lake-UP3, with Intel® 11th Gen. Core™ i7-1185G7E, i5-1145G7E, i3-1115G4E, Celeron® 6305 processor
2. Support Triple independent display via HDMI, DP, iDPM
3. Support Dual Intel® 2.5 GbE LAN
4. Support one PCIe Gen4 x 8 slot (x 4 signal), M.2 A key, M.2 M key expansions
| System | |
|---|---|
| CPU | 11th Gen. Intel® Tiger Lake-UP3 Processor Intel® Core™ i7-1185G7E (up to 4.4GHz, quad-core, 12M Cache, TDP=28/15/12W) Intel® Core™ i5-1145G7E (up to 4.1GHz, quad-core, 8M Cache, TDP=28/15/12W) Intel® Core™ i3-1115G4E (up to 3.9GHz, quad-core, 6M Cache, TDP=28/15/12W) Intel® Celeron® 6305E(up to 1.8GHz, dual-core, 4M Cache, TDP=15W) |
| Memory | 2 x 260-pin 3200 MHz DDR4 SO-DIMM |
| Memory Max. | 64GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Storage | |
| Storage | 2 x SATA : 6Gb/s with 5V SATA power connector |
| 1 x M.2(NGFF) : M Key (2242/2280) with PCIe Gen3 x2, support NVME storage | |
| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4096 x 2160@30Hz |
| 1 x Display Port : up to 4096 x 2160@60Hz | |
| 1 x iDPM : IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module) | |
| Ethernet | 2 x LAN - LAN1: Intel® I225V/I226V 2.5GbE controller LAN2: Intel® I225V/I226V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x iAUDIO, supporit IEI AC-KIT-888S Audio Module (2 x 5 pin) |
| I/O Interface | 5 x Internal RS-232 : 2x5 pin, P=2.0 |
| 1 x Internal RS-422/485 : 2x5 pin, P=2.00, RS-485 support AFC | |
| 2 x Internal USB 2.0 : 2x4 pin, P=2.00 | |
| 1 x DIO : 12-bit digital I/O (2x7 pin) | |
| 4 x External USB 3.2 Gen2x1 : 10Gb/s | |
| Expansion | 1 x PCIe x8 : x 4 signal |
| 1 x M.2(NGFF) : A key (2230) with PCIe Gen3 x1/USB 2.0 | |
| Other Features | |
| TPM | Intel® PTT(TPM 2.0) |
| Power | |
| Power Consumption | 9V@9.19A, 12V@7.768A, 28V@3.119A, 36V@2.459A (Intel® Core™ i7-1185G7E CPU with one 8 GB 2933 MHz DDR4 SO-DIMM) |
| Power Supply | 9 ~ 36V DC input 1 x Internal power connector (2x2 pin) 1 x External DC power Jackc (Ø5.5mm) ErP/EuP Compliant |
| Environment | |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
