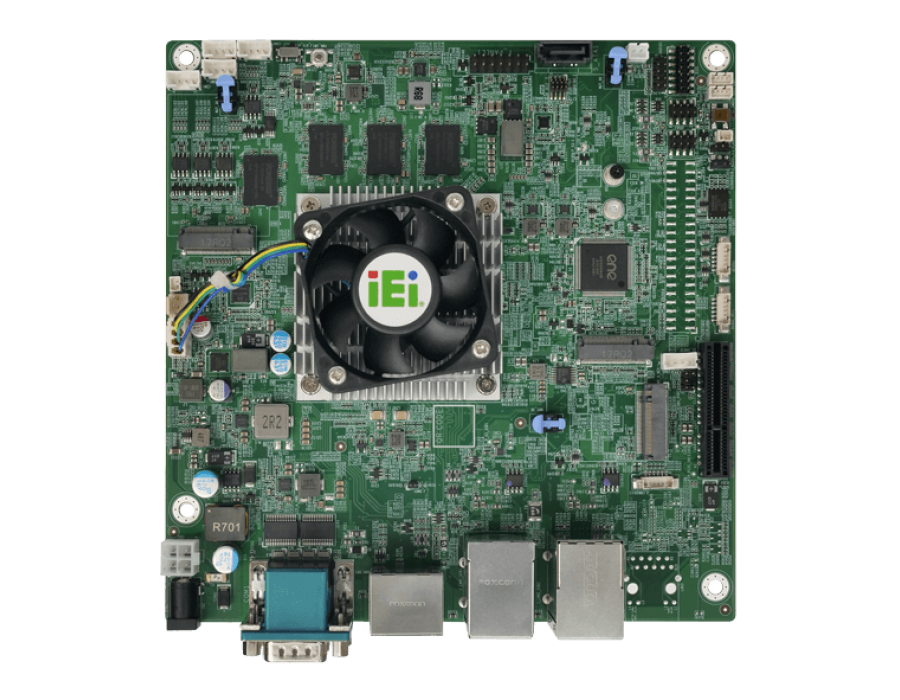

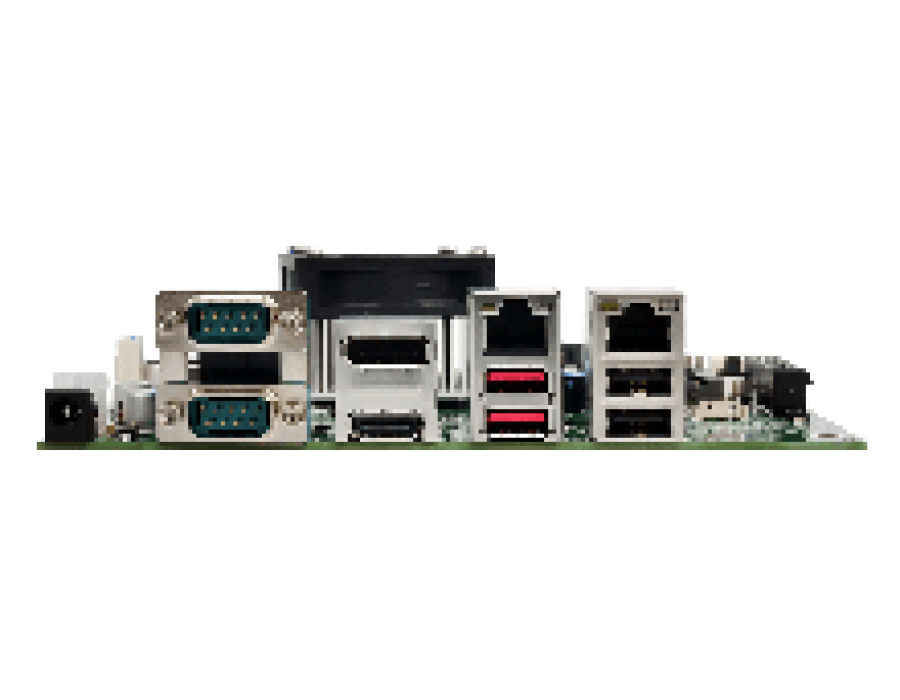

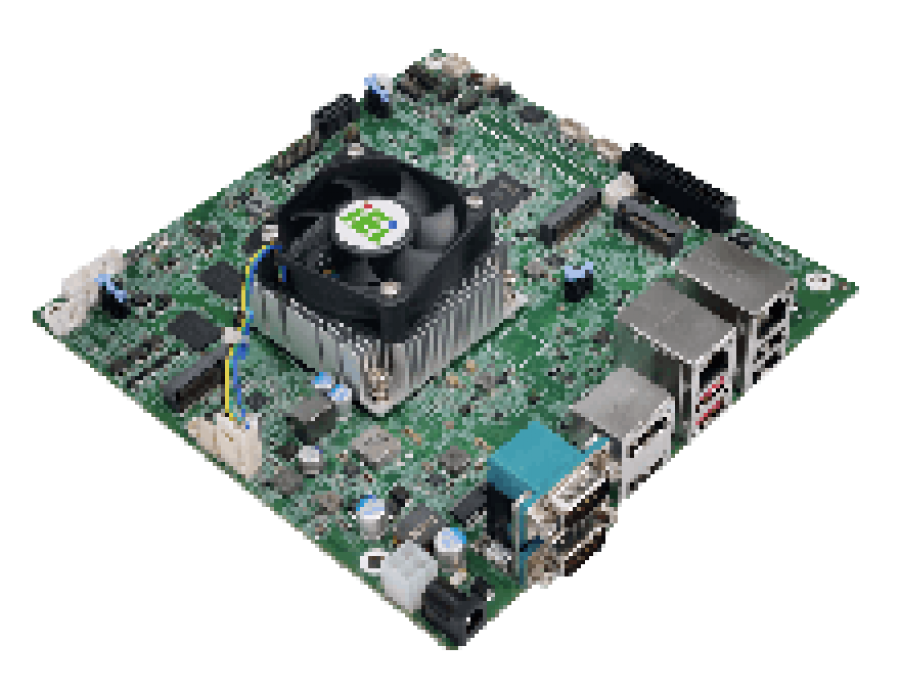

KINO-EHL-J6412C-R11 Mini-ITX SBC supports Intel® quad-core Celeron® J6412 2.0GHz on-board SoC with 8GB LPDDR4x memory on board default, Triple Independent Display, HDMI, DP, SATA 6Gb/s, Triple GbE, USB 3.2, M.2 and RoHS
1. Mini-ITX SBC supports Intel® Elkhart Lake Celeron® J6412
2. Support Triple independent displays via HDMI, DP, iDPM
3. Support dual Intel® i225V 2.5GbE ports
4. Support one PCIe Gen3 x4 slot, M.2 A key and M.2 B key expansions
5. Two USB 3.2 Gen2, six USB 2.0, two RS-232, four RS-422/485
| System | |
|---|---|
| CPU | Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache,TDP=10W) |
| Memory | Onboard LPDDR4x-3200MHz 8GB, system up to 16GB |
| Memory Max. | up to 16GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x3 pin) |
| Storage | |
| Storage | 1 x SATA : 6Gb/s with 5V SATA power connector |
| 1 x M.2(NGFF) : B key 3042/3052/2242/2280 (PCIe x2 & USB 2.0) | |
| I/O Interface | |
| Display Output | 1 x HDMI™ : up to 4096 x 2160@30Hz |
| 1 x Display Port : up to 4096 x 2160@60Hz | |
| 1 x iDPM : 1 x IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module) | |
| Ethernet | 2 x LAN - LAN1: Intel® I225V 2.5GbE controller LAN2: Intel® I225V 2.5GbE controller |
| Audio | 1 x HD Audio : 1 x iAUDIO, support IEI AC-KIT-888S Audio Module (2x5 pin) |
| I/O Interface | 2 x External RS-232 |
| 4 x Internal RS-422/485 : 1x4 pin, P=2.00 | |
| 2 x External USB 2.0 | |
| 4 x Internal USB 2.0 : 2x4 pin, P=2.00 | |
| 1 x DIO : 12-bit digital I/O (2x7 pin) | |
| 2 x External USB 3.2 Gen2x1 : 10Gb/s | |
| Expansion | 1 x PCIe x4 : PCIe Gen3 x1 signal |
| 2 x M.2(NGFF) - 1 x M.2 B key 3042/3052/2242/2280 (PCIe x2 & USB 2.0) 1 x On-board SIM card socket (hinge type) for M.2 B key |
|
