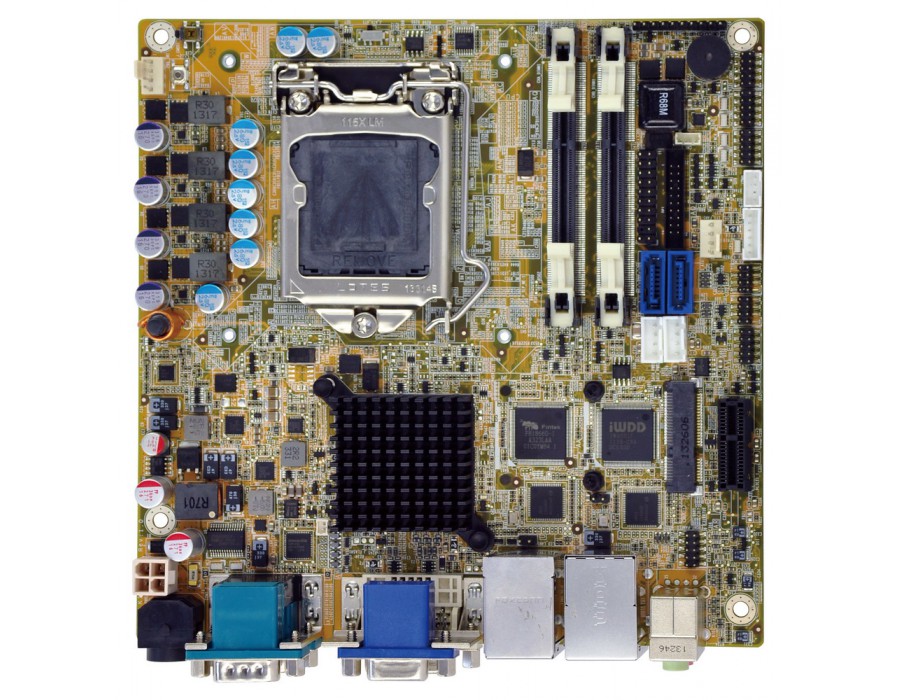

KINO-DH810-ECO-R10 - IEI industrijska matična ploča, LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® CPU, DDR3, DVI-D, VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, ECO packing and RoHS
1. LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
2. DDR3 1066/1333/1600 MHz dual-channel SDRAM
3. 3D micro-architecture enhancement supports DX11.1, OCL 1.2 and OGL3.2
4. Rich media acceleration for hardware decode and encode acceleration
5. High-speed I/O interface for USB 3.0, SATA 6Gb/s and mSATA
6. IEI Jumper-less function
| CPU | LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported |
| System Chipset | Intel® H81 |
| BIOS | UEFI BIOS |
| System Memory | Two 204-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs support up to 16GB |
| Ethernet | Dual LAN: Intel® I211-AT PCIe controller |

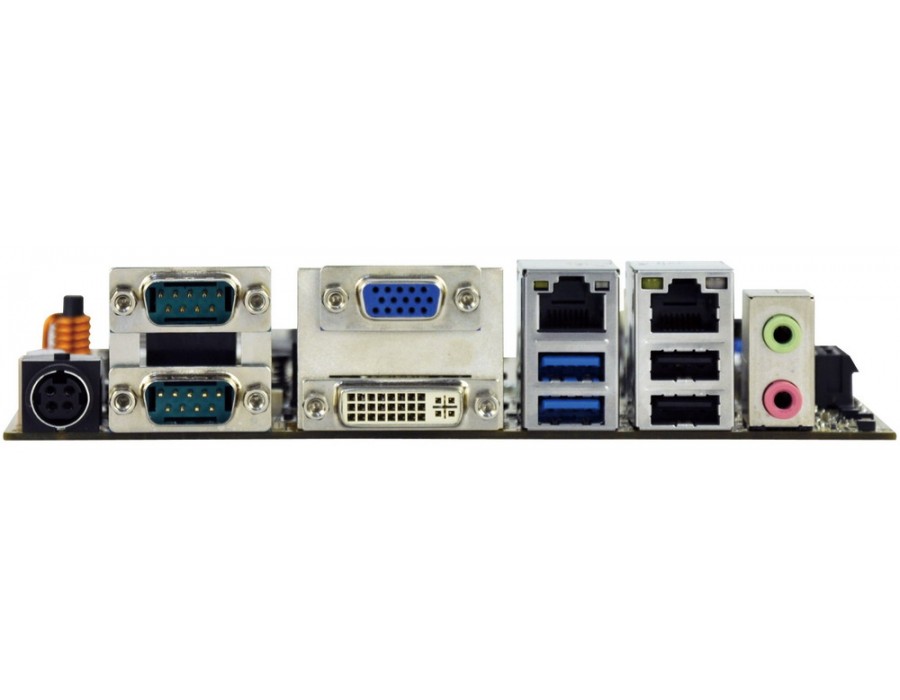

| I/O Interface | 1 x 6-pin wafer for PS/2 KB/MS 1 x RS-422/485 5 x RS-232 2 x SATA 6Gb/s 2 x USB 3.0 (2 on rear I/O) 6 x USB 2.0 (2 on rear I/O, 4 by pin header) |
| Digital I/O | 8-bit digital I/O (4-bit input, 4-bit output) |
| Super I/O | Fintek F81866 |
| TPM | 1 x TPM connector (2x10 pin) |
| SMBus | 1 x 4-pin wafer |
| Audio | Realtek ALC662 HD audio codec |
| Display Interfaces | VGA (up to 1920x1200 @ 60 Hz) DVI-D (up to 2560x1600 @ 60 Hz) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz) |
| Expansion | 1 x PCIe x1 slot 1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only) |
| Watchdog Timer | Software programmable, support 1~255 sec. system reset |
| Power Supply | 12V only DC input 1 x external DIN 4pin DC jack 1 x internal 2x2-pin power connector Support AT/ATX mode |
| Power Consumption | +12V@ 6.03A (Intel® Core™ i7-4770K 3.90 GHz CPU with two 1333MHz 4GB DDR3 memory) |
| Graphic | Intel® HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2 Full MPEG2, VC1, AVC Decode |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |

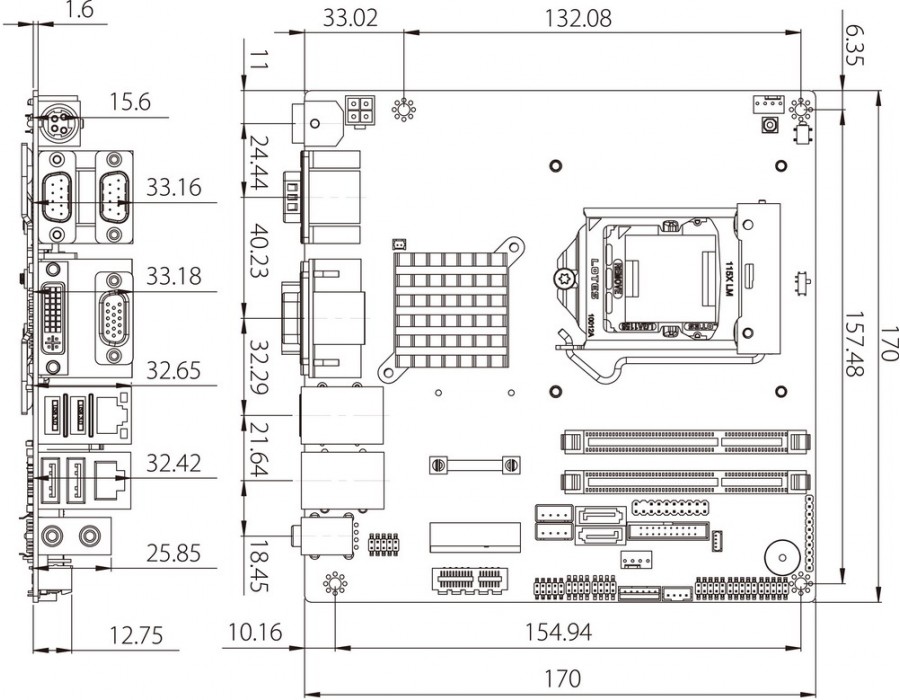

| Dimensions | 170mm x 170mm |
| Weight | GW: 900g/NW: 450g |
| Front Panel | 1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button) |
| Fan Connector | 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector |
| LAN LED | 2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
