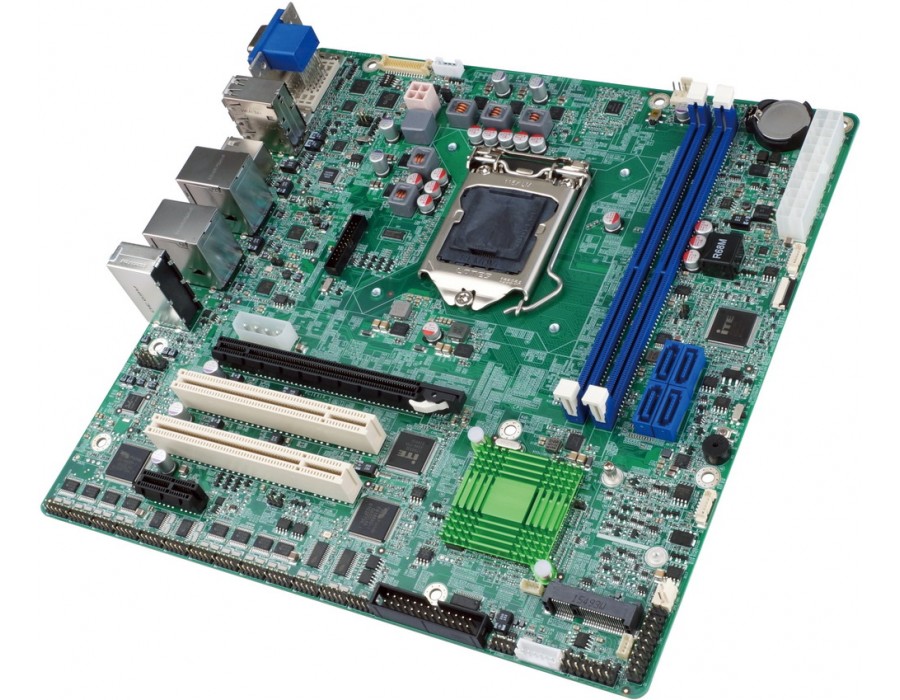

IMB-H110-ECO-R10 - IEI microATX industrial Motherboard supports 14nm LGA1151 6th Generation Intel®Core i7/i5/i3, Pentium® or Celeron® processor per Intel®H110 , DDR4 , VGA/DVI-I/LVDS, Dual GbE LAN, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
| Spec Item | Description | |
|---|---|---|
| Display | Display Output | Dual display VGA (Chrontel 7517) DVI-I (ASM1442, Chrontel 7517) LVDS (Chrontel 7511) iDP |
| System | CPU | LGA1151 socket supports Intel® skylake-S |
| Chipset | Intel® skylake H110 | |
| Memory Max. | Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM supported up to 64GB | |
| I/O Interface | Ethernet | LAN1: RTL 8111GN controller LAN2: RTL 8111GN controller |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin) | |
| Audio | Realtek ALC662 HD Audio Codec support 5.1 Channel, (2 Audio Jack colay 3) Front Audio (2x 5 pin) (Line-in, Line-out, Mic) |
|
| Power | Power consumption | 3.3V@ 0.93A, 5V@2.99A, 12V@6.88A, 5VSB@0.02A (Intel® Core™ i7-6700K 4.0GHz CPU with 16GB (two 8GB) 2133 MHz DDR4 memory) |
| Power Supply | ATX/AT Power Supply | |
| Environment | Operating Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 95%, non-condensing | |
| Weight | Weight | GW:1200g, NW: 700g |
| Expansion Slots | Expansion Slots | 1 x PCIe x16 slot (Gen3) 1 x Full-size PCIe Mini card slot 1 x PCIe x1 slot (Gen2) 2 x PCI slot |
| I/O Interface | I/O Interface | 10 x Internal RS-232((2 x 5pin,P=2.0)) 4 x SATA 6Gb/s 1 x LPT((2 x 13pin,P=2.54)) 1 x KB/MS((1 x 6 pin)) 1 x I2C((1 x 4 pin)) 1 x SMBus((1 x 4 pin)) 2 x Internal USB 2.0((2 x 4pin,P=2.0)) SMBus((1 x 4 pin)) 2 x RS-422/485((1 x 4 pin, P=2.0, colay with COM4)) |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
