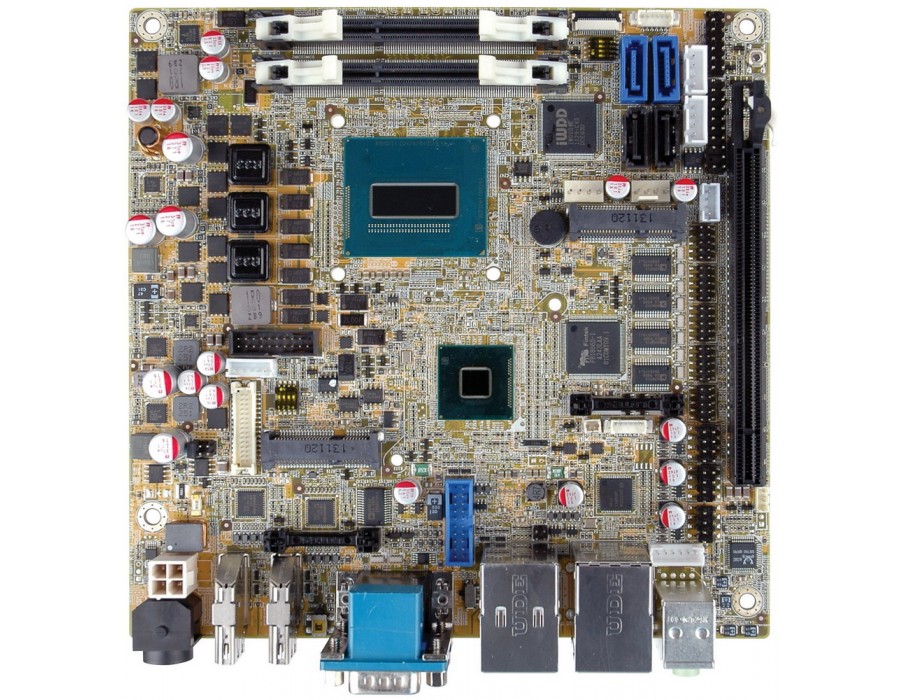

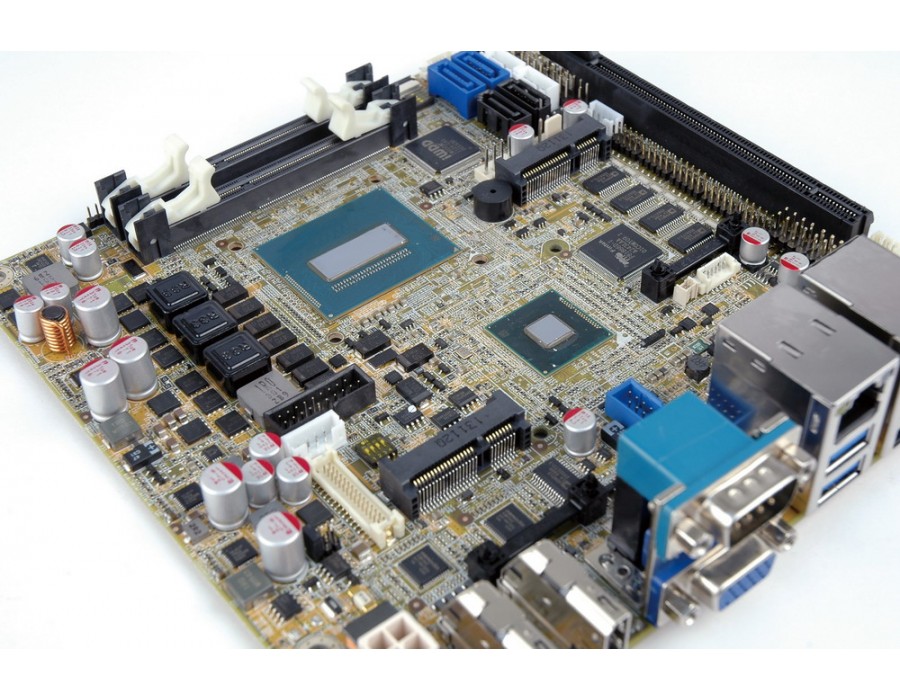

KINO-DQM871-i1-i3E-R10 - IEI Mini-ITX industrial motherboard supports Intel® 22nm 4th Generation Mobile Core™ i3 on-board Processor (25W),HDMI / VGA / LVDS / DP,Dual Intel® PCIe GbE,USB 3.0,SATA 6Gb/s,HD Audio, iRIS-1010 and RoHS
| CPU | Intel® mobile Core™ i3-4102E on-board processor (1.6GHz, dual-core, 3MB cache, TDP=25W) Intel® mobile Core™ i3-4100E on-board processor (2.4GHz, dual-core, 3MB cache, TDP=37W) (by request) |
| System Chipset | Intel® QM87 |
| BIOS | UEFI BIOS |
| System Memory | Two 204-pin 1066/1333/1600 MHz DDR3 dual-channel SO-DIMMs (support up to 16GB) |
| Ethernet | LAN1: Intel® I217LM with Intel® AMT 9.0 support LAN2: Intel® I210-AT PCIe controller |

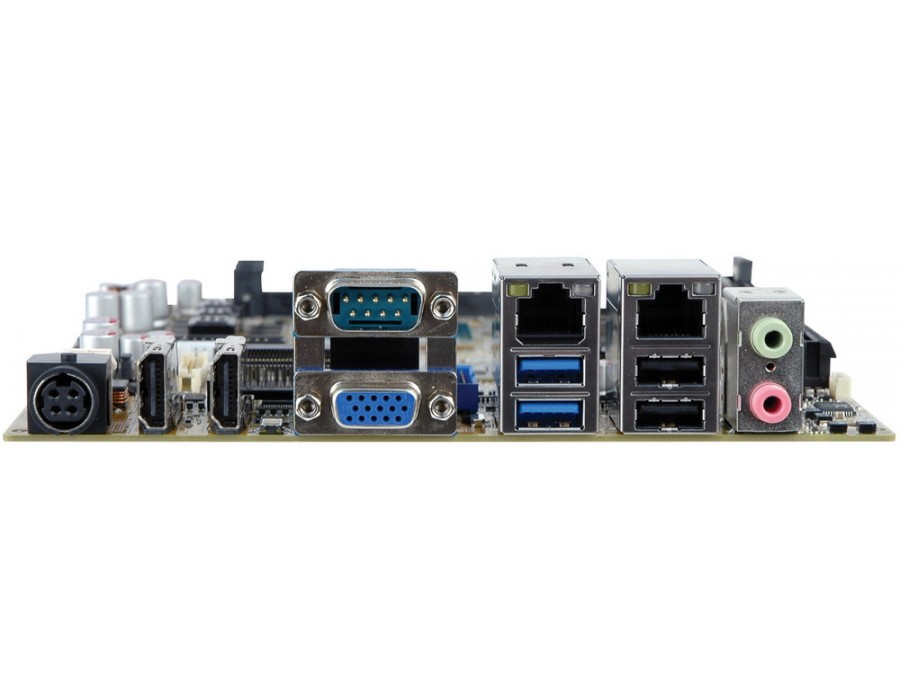

| I/O Interface | 1 x 6-pin header for KB/MS 1 x RS-422/485 5 x RS-232 2 x SATA power connector (4P, P=2.54) 2 x SATA 3GB/s, 2 x SATA 6Gb/s (RAID 0, 1, 5, 10 supported) 4 x USB 3.0 (2 on rear I/O, 2 by pin header) 8 x USB 2.0 (2 on rear I/O, 6 by pin header) |
| Digital I/O | 8-bit digital I/O (4-bit input, 4-bit output) |
| Super I/O | Fintek F81866 |
| TPM | 1 x TPM (2x10 pin) |
| SMBus | 1 x SMBus (1x4 pin) |
| Audio | Realtek ALC662 HD Audio codec |
| Display Interfaces | VGA (up to 1920x1200@60Hz) 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz) Dual HDMI (up to 2500x1600@60Hz) iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz) |
| Expansion | 1 x Full-size PCIe Mini card slot (supports mSATA, SATA 6GB/s signal only) 1 x PCIe x16 (Gen.3) |
| Watchdog Timer | Software programmable, support 1~255 sec. system reset |
| Power Supply | 12V DC input 1 x External DC jack (4-pin DIN) 1 x Internal 4-pin (2x2) power connector Support AT/ATX mode |
| Power Consumption | 12V@6.03A (Intel® Core™ i7-4770EQ, 2.4GHz CPU with 8GB (2x4GB) 1333MHz DDR3 memory) |
| Graphic | Intel® HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2 Full MPEG2, VC1, AVC Decode |
| Operating Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 95%, non-condensing |

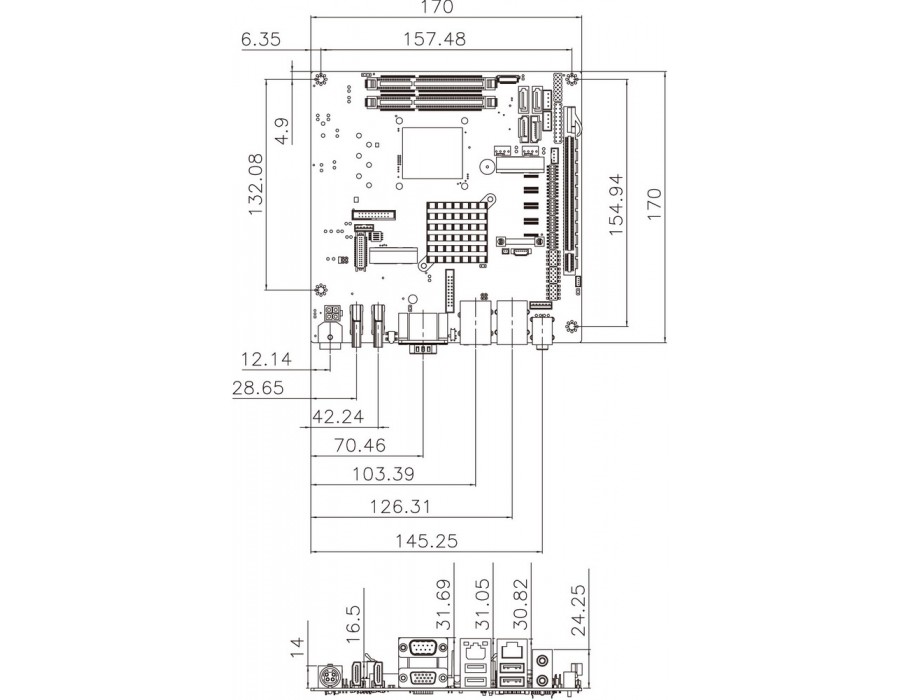

| Dimensions | 170mm x 170mm |
| Weight | GW: 900g/NW: 450g |
| Front Panel | 1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button) |
| Fan Connector | 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector |
| iRIS Remote Management Module | 1 x iRIS-1010 slot |
| LAN LED | 2 x LAN LED (1x2 pin) |
