FLEX-BX210AI-i9/16G-R10 - IEI 2U AI Modular box PC, Intel® 10th Generation Core™ i9-10900TE 1.8GHz (up to 4.5GHz, 10-core, TDP 35W), 16GB DDR4, 2.5" 1TB HDD, TPM 2.0, 350W PSU, Wi-Fi 802.11ac, R10
FLEX AIoT Developer Kit
| Model | FLEX-BX210AI-Series |
|---|---|
| System | |
| CPU | Intel® Xeon® W-1290TE 1.8GHz (up to 4.5GHz, 10-core, TDP 35W) Intel® 10th Generation Core™ i9-10900TE 1.8GHz (up to 4.5GHz, 10-core, TDP 35W) Intel® 10th Generation Core™ i5-10500TE 2.3GHz (up to 3.7GHz, 6-core, TDP 35W) |
| Chipset | Intel® 400 Series Chipsets (Comet Lake) |
| Memory | 2 x 288-pin 2933/2666 MHz dual-channel DDR4 unbuffered DIMM supporting up to 64GB Xeon W with 32GB RAM Pre-installed Core i9 with 16GB RAM Pre-installed Core i5 with 8GB RAM Pre-installed |
| Graphics Engine | Intel® HD Graphics Gen 9.5 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0 |
| Ethernet | LAN1: Intel® I219LM with Intel® AMT 11.0 supported LAN2/LAN3: Intel® I210 PCIe controller |
| Storage | |
| Storage | 4 x accessible 2.5” HDD/SSD SATA 6 Gb/s bay (with RAID 0/1/5/10 support) with LED indicator 1 x NGFF M.2(2280) M Key socket (support NVMe SSD) Pre-installed 1 x 2.5” 1TB HDD |
| Wireless Communication | |
| WLAN | Intel® AC 9260 802.11ac, 2.5/5GHz, 2T/2R (by M.2 2230) |
| Bluetooth | Bluetooth V5.1 |
| WWAN and GNSS | M.2 3042 LTE (optional) |
| I/O Ports and Switches | |

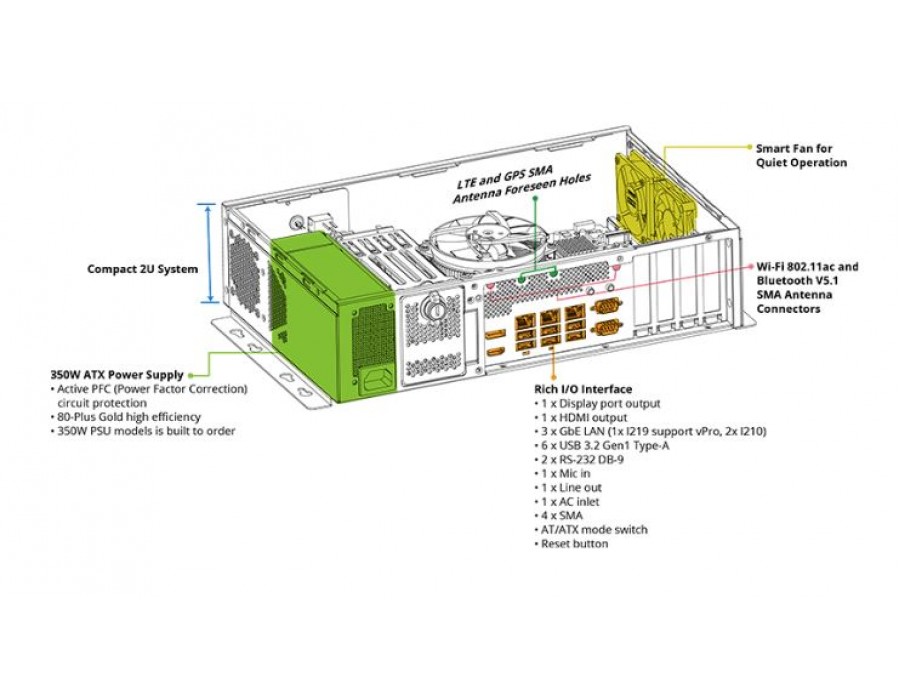

| I/O Ports and Switches | 1 x Display port output 1 x HDMI output 3 x GbE LAN (1x I219 support vPro, 2x I210) 6 x USB 3.2 Gen1 Type-A 2 x RS-232 DB-9 1 x Mic in 1 x Line out 1 x AC inlet 4 x SMA Power button with power LED (power on=Blue) AT/ATX mode switch Reset button |
| TPM | TPM 2.0 (pre-installed) |
| Expansion Slots | |
| Expansion Slots | 2 x PCIe 3.0 x8 2 x PCIe 3.0 x4 1 x M.2 B-Key 2242 socket (with SIM slot for 3G/LTE, supports PCIe 3.0 x1 & USB 3.2 Gen1) 1 x M.2 M-Key 2280 socket (supports PCIe 3.0 x4) |
| Thermal Solution | |
| Thermal Solution | 3 x System fan, 1 x CPU cooler |
| Power supply | |
| Power supply | AC input ATX power supply - 350W Power supply - Input: 90VAC~264VAC, 50/60Hz - Output (max.): 3.3V@14A, 5V@16A, 12V@29A, -12V@0.3A |
| Watchdog Timer | |
| Watchdog Timer | Software programmable support 1~255 sec. system reset |
| Construction | |
| Chassis Construction | Metal housing |
| Mounting | Wall/Rack mount |
| Color | Black |

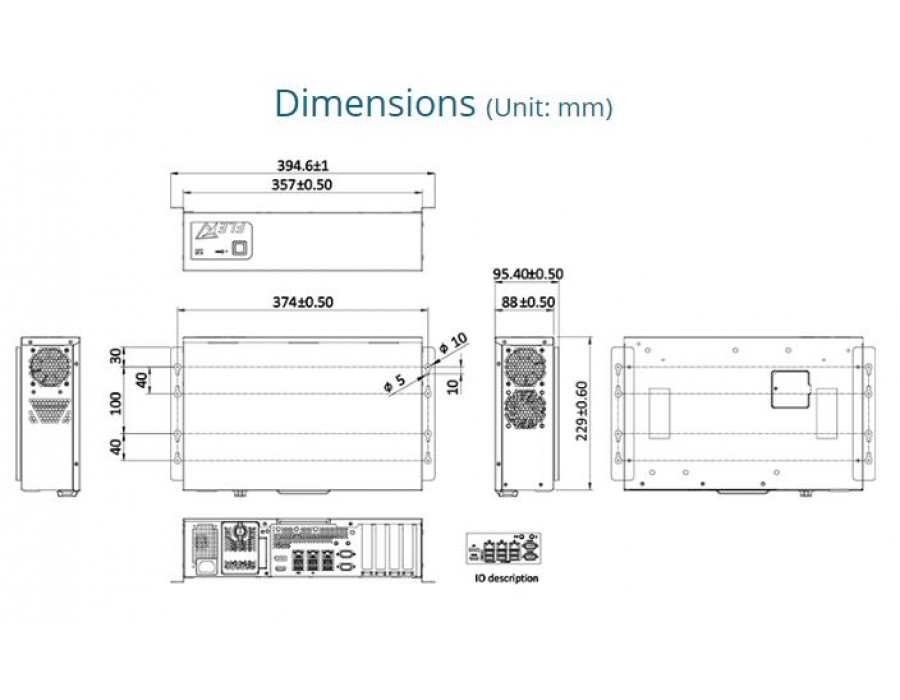

| Dimensions (LxDxH) (mm) | 357 x 230 x 88 |
| Net Weight | 4 kgs |
| Environmental | |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Operating Humidity | 5% ~95%, non-condensing |
| Vibration | 5~17Hz, 0.1 double amplitude displacement 17~640Hz 1.5G acceleration peak to peak |
| Shock | 10G acceleration part to part (11ms) |
| Safety/EMC | CE/FCC/RoHS |
