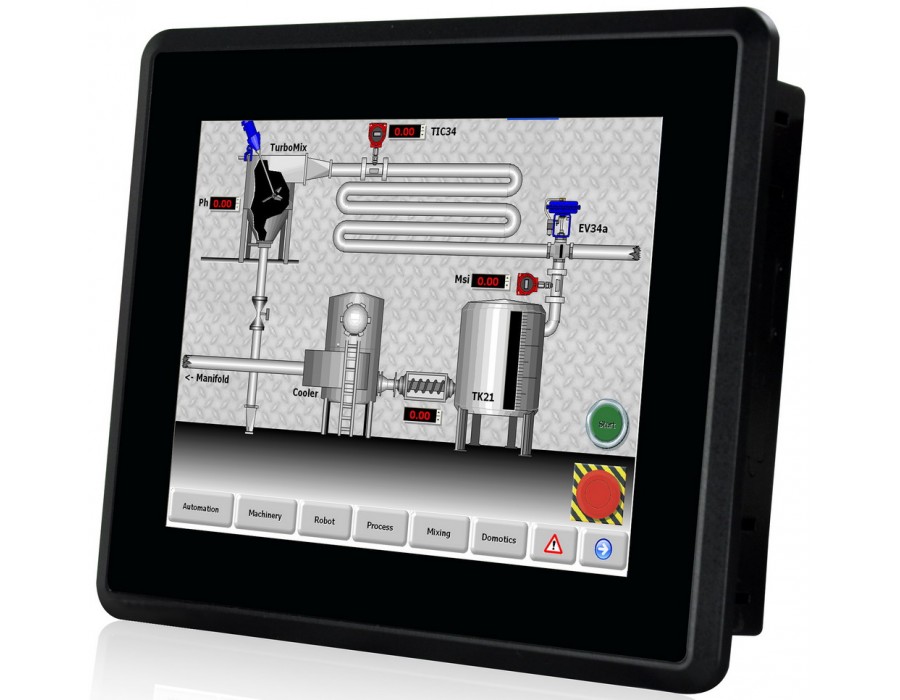

DM-F08A/R-R21 - IEI 8" 500 cd/m² SVGA LCD monitor, Aluminum front panel, Black color, W/ USB resistive touch screen, 12V DC input, Powder paint, R21
| Display | |
|---|---|
| LCD Size | 8”(4:3) |
| Brightness(cd/m2) | 500 |
| Max Resolution | 800 (W) x 600 (H) |
| Contrast Ratio | 500:1 |
| Backlight MTBF(hrs) | 50000 |
| I/O Interface | |
| I/O Ports and Switches | 1 x VGA (DB-15) 1 x DVI 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack |
| Power | |
| Power adapter | 12V DC |
| Environment | |
| Operating Temperature | -20°C ~ 60°C (with air flow) |
| Humidity | 10% to 95% (non-condensing) |
| Storage Temperature | -20°C ~ 70°C |
| IP Level | IP 65 compliant front panel |
| Physical Characteristics | |

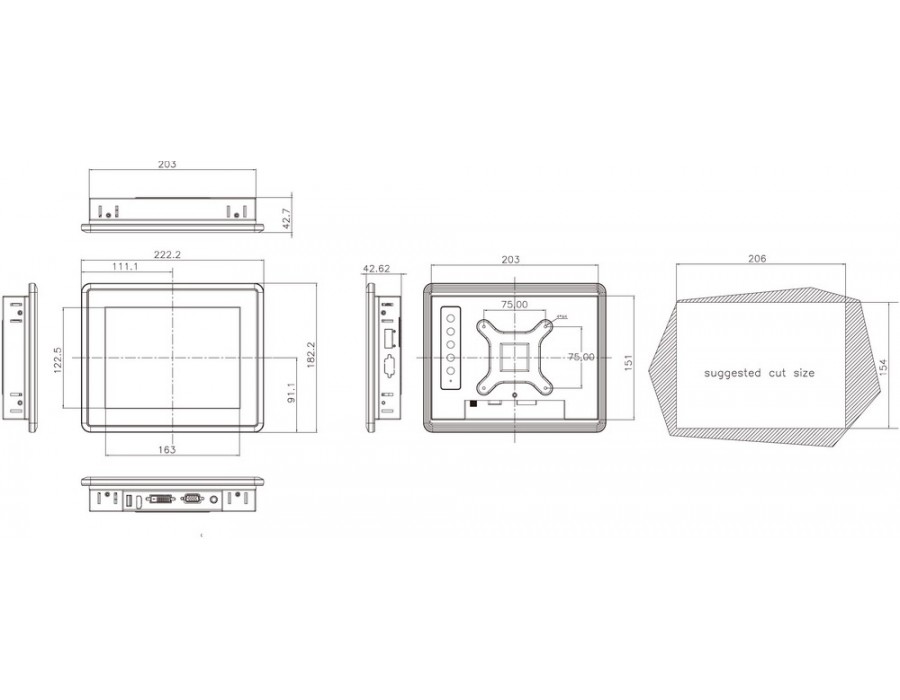

| Dimensions (LxWxH) (mm) | 222.2 x 182.2 x 42.7 |
| Cutout Dimensions | 206 x 154 |
| Weight | |
| Weight | 1.33/4.5 |
| LCD | |
| LCD Color | 262K |
| Pixel Pitch (mm) | 0.0675 x 0.2025 |
| Viewing Angle (H-V) | 140°/120° |
| Touch | |
| Touch Screen | 5-wire resistive single touch window |
| Touch Controller | Penmount 6000 |
Navedene cene su informativnog karaktera i podložne su promenama. Za aktuelnu cenu pošaljite upit za ponudu na office@infotech.rs
Datasheet Download
