ACE-4840APM-RS

ACE-4840APM-RS
Kod proizvoda: ACE-4840APM-RS
Dostupnost: Ne proizvodi se više
Please login to see prices
Količina:     - ILI -   Dodaj u listu želja
Dodaj za poređenje
ACE-4840APM-RS

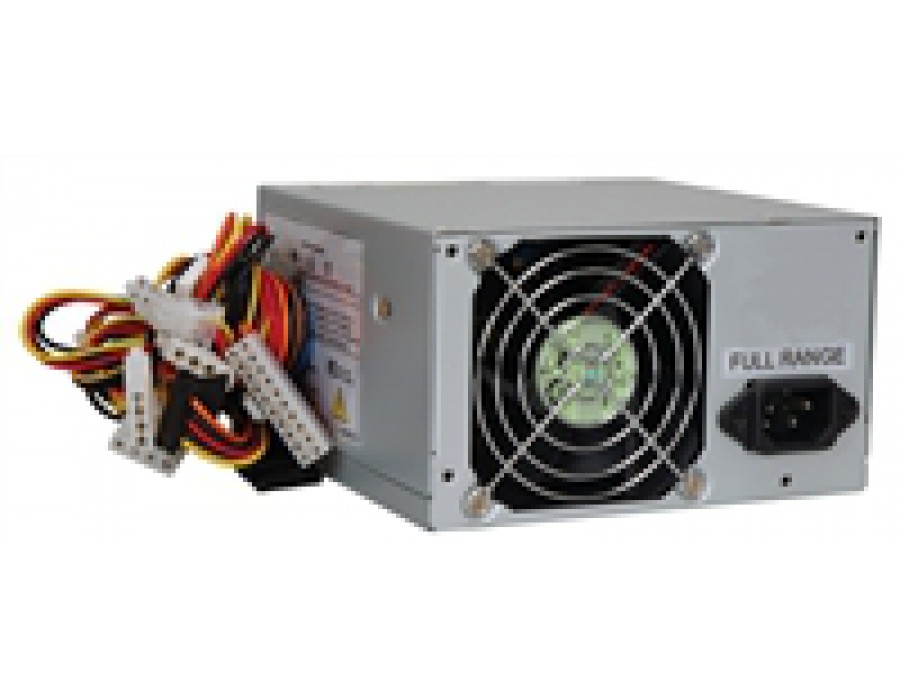

ACE-4840APM-RS - IEI 400W AC-DC PS/2 ATX Power Supply,meet Medical standard,with PFC;CCL

1. Internal 8 cm fan
2. Meets medical safety standards
3. Line input fuse protection
4. Output overvoltage protection
5. Short circuit protection on all outputs
6. Total +12 V output up to 34 A

Datasheet Download



Input Input Voltage :90 ~ 265 VAC Full Range
Input Frequency :47 ~ 63 Hz
Input Current :
8 A (RMS) for 115 VAC
4 A (RMS) for 230 VAC
Inrush Current :
60 A MAX. for 115 VAC
100A MAX. for 230 VAC
Output

Voltage

Min. load

Max. load

Ripple & Noise

+3.3 V

0.5 A min

30 A

 50 mV

+5 V

0.3 A min

30 A

 50 mV

+12 V1

1 A min

17 A

 120 mV

+12 V2

1 A min

17 A

 120 mV

-5 V



 0.3 A

100 mV

-12 V



 0.3 A

 120 mV

+5 Vsb



 2 A

 50 mV

+3.3 V &+5 V total output not exceed 180 W
+3.3 V & +5 V & +12 V total output not exceed 380 W
Overvoltage Protection
+5 V:5.7 V ~ 6.5 V
+3.3 V:3.7 V ~ 4.5 V
+12 V:13.3 V ~ 15.6 V
Short Circuit Protection
+3.3 V, +5 V , +12 V short circuit all the output
Hold-up Time 20 ms min.
Efficiency 68%
MTBF 100,000 hours
Outline Connector 20+4PIN ATX x1, 4PIN 12V CPU x1, HDD/CDROM x5,FDD x2, SATA x2, Extra +5V(P10) x1
Storage Temperature -20 ˚C ~ 80 ˚C
Operation Temperature 0 ˚C ~ 50 ˚C
Dimensions 140 mm x 150 mm x 86 mm
